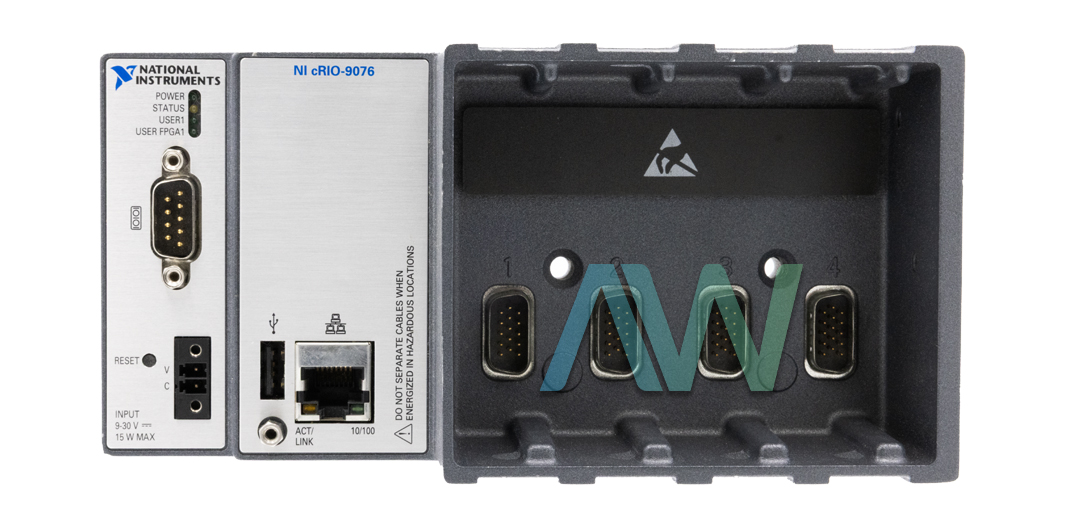

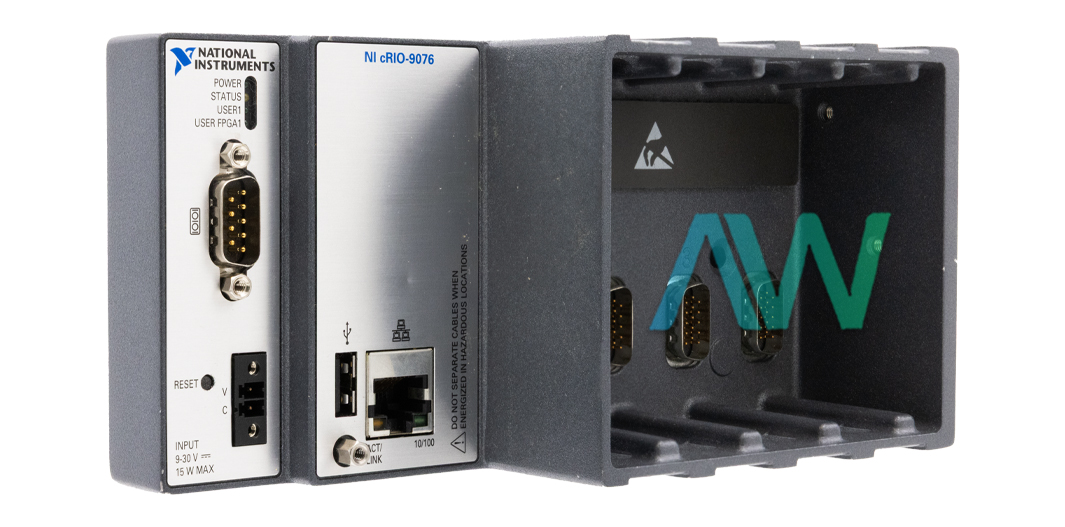

National Instruments cRIO-9076 CompactRIO Controller
Featured with a powerful FPGA (Spartan-6 LX 45 by Xilinx) and a 1.33 GHz dual-core processor, the National Instruments cRIO-9076 (Part Number: 781716-01) is a CompactRIO controller designed for advanced industrial control, monitoring, and data acquisition applications. This integrated system contains a reconfigurable chassis and a real-time embedded controller. The NI cRIO-9076 runs the Wind River VxWorks real-time operating system and has four slots and 3 ports (1 Ethernet, 1 USB, and 1 serial port). It comes equipped with 256 GB of DRAM and 512 MB of nonvolatile memory. The RS-232 serial port offers a 230,400 bps baud rate, 5, 6, 7, and 8 data bits, and 1 and 2 stop bits.
The Spartan-6 LX 45 FPGA in this controller offers 54,576 flip-flops, 27,288 input LUTs, 58 DSP48s, 5 DMA channels, and 2,088 kilobits of block RAM. The cRIO NI 9076 can be operated over an input range of 9 V to 30 V. This CompactRIO Controller weighs around 643 g, and the physical dimensions are 7.0 in. × 3.4 in. × 2.5 in. The system is compatible with the NI Serial driver software and supports industry-leading software programs, including the LabVIEW Real-Time Module and the LabVIEW FPGA Module.
The USB ports of the cRIO 9076 can handle peripherals as well as mass storage devices. Moreover, the controller software provides FTP over Ethernet. With the Measurement & Automation Explorer (MAX) tool, the user can configure various controller startup options, including no app, IP reset, safe mode, console out, etc. The controller has a power consumption value of up to 15 W and a recommended power supply of 24 W, 24 VDC.
The NI device has a recommended operating temperature range of -20°C to 55°C; a storage temperature range of -40°C to 85°C, non-condensing operating and storage humidity ranges of 10% RH to 90% RH and 5% RH to 95% RH, respectively; and random and sinusoidal operating vibrations of 5 grms and 5 g, respectively—all at a frequency range of 10 to 500 Hz.
| Model | cRIO-9076 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 781716-01 |
| Type | CompactRIO Controller |
| Slots | 4 |
| Weight | 643 g |
| Internal Storage | 512 MB of nonvolatile memory |
| DRAM | 256 GB |
| Operating Temperature Range | -20 °C to 55 °C |
| Warranty | 2-3 Year Warranty |
| cRIO-9076 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a quote |
Associated part numbers for cRIO-9076:
National Instruments cRIO-9076 Frequently Asked Questions
Question: What does a “break” mean when using the NI cRIO-9076 if the unit has stopped functioning?
Answer: A “break” condition usually indicates that the real-time application has encountered an execution interruption, such as a timed loop overrun, software exception, or manual abort in LabVIEW. Review loop timing, CPU load, and error handling in the deployed application before changing loop structures.
Question: How do I save data from the NI cRIO-9076 to the PC?
Answer: To save data from the controller to the PC, you can use Network Shared Variables or Network Streams.
Question: How much onboard memory does the cRIO-9076 have?
Answer: The controller includes 256 MB DRAM and 512 MB nonvolatile storage.
cRIO-9076 PDF Manuals
ARCHIVED--NI-DIRECT-INJECTOR-DRIVER-SYSTEM-USER-GUIDE.PDF
CRIO-9076-9148-LETTER-OF-VOLATILITY.PDF
CARRYING-HANDLE-FOR-COMPACTRIO-AND-COMPACTDAQ-USER-GUIDE.PDF
NI-9910-RACK-MOUNTING-KIT-INSTALLATION-INSTRUCTIONS.PDF
NI-CRIO-9075-9076-LETTER-OF-VOLATILITY.PDF
NI-CRIO-9075-9076-OPERATING-INSTRUCTIONS-AND-SPECIFICATIONS.PDF
NI-CRIO-9076-9148-LETTER-OF-VOLATILITY.PDF
