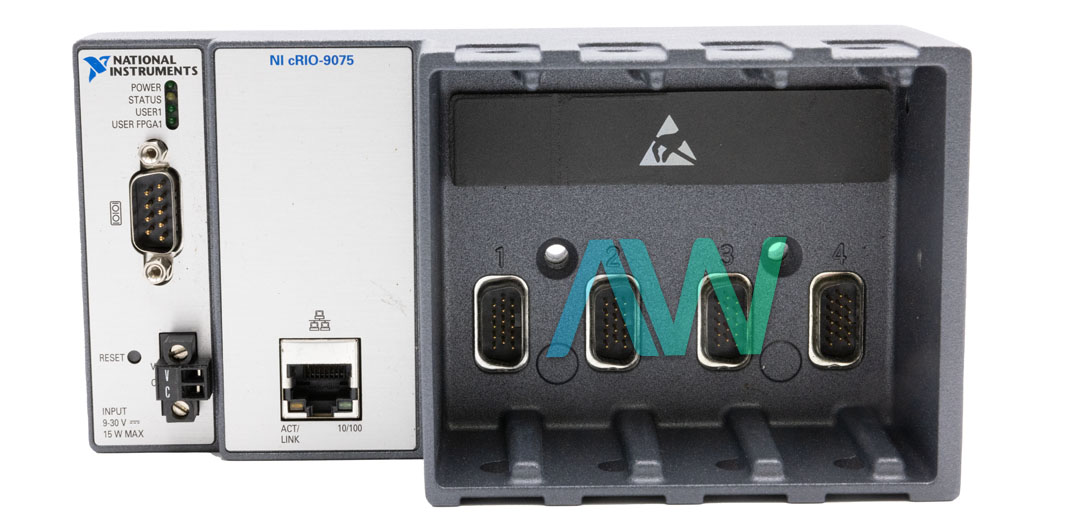

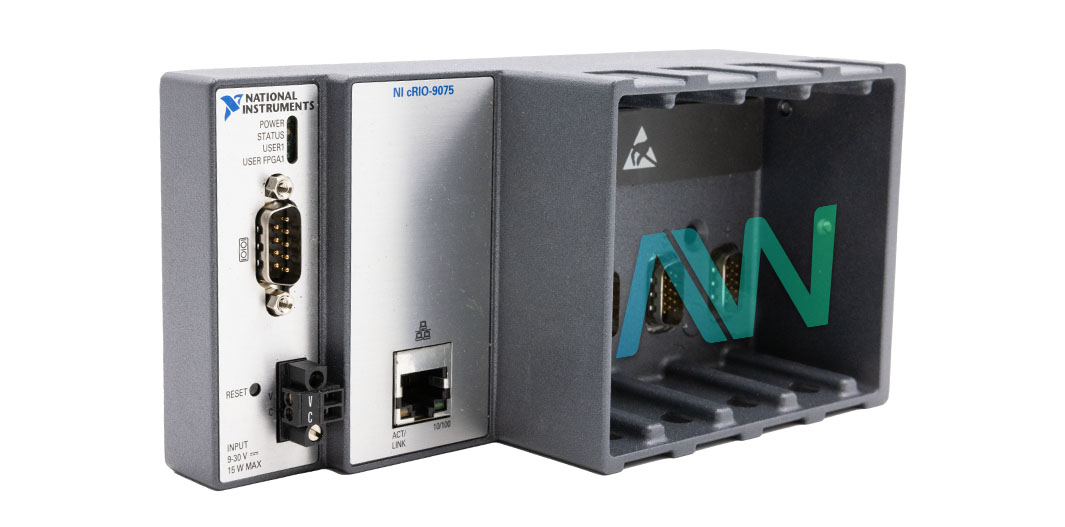

National Instruments cRIO-9075 CompactRIO Controller

The National Instruments cRIO-9075 (part number: 781715-01) is a 4-slot CompactRIO legacy controller. This model features a 400 MHz CPU, 256 MB of internal storage, 128 MB DRAM, and an FPGA (Spartan-6 LX 25 by Xilinx). The FPGA circuitry provided in this controller controls all the I/O modules and forwards data to the main controller by means of built-in communication infrastructure.

The Spartan-6 LX25 FPGA provides 24,051 logic cells, 38 DSP slices, and 936 Kbits of block RAM. The NI cRIO-9075 is designed to accept up to four C Series I/O modules. A variety of I/O modules compatible with this controller are available, including current, voltage, thermocouple, RTD, strain gauge, and accelerometer modules. Moreover, the cRIO 9075 can also be used with 5 V or TTL digital I/O, pulse generators, counters, timers, high-current relays, high-voltage relays, 12 V, 24 V, and 48 V industrial I/O, and up to ±60 V analog I/O.

The cRIO-9075 supports Ethernet and serial communications, with software services including TCP/IP, UDP, Modbus/TCP, FTP, HTTP, and NI-VISA server access. The VISA server offers remote communication and download access to the reconfigurable I/O over Ethernet. The FTP server offers quick access to configuration files and logged data stored on the internal storage of the controller. The controller can be configured using the Measurement & Automation Explorer (MAX) tools. The controller operates from 9 VDC to 30 VDC, with 24 VDC nominal input. It consumes up to 15 W, excluding installed modules.

The NI device weighs 22.7 oz and measures 7.0 x 3.4 x 2.5 in. in physical dimensions. It has a recommended operating temperature range of -20 °C to 55 °C; a storage temperature range of -40 °C to 85 °C; a noncondensing operating and storage humidity range of 10% RH to 90% RH and 5% RH to 95% RH, respectively; and a random and sinusoidal operating vibration of 5 grms and 5 g, respectively—all at a frequency range of 10 Hz to 500 Hz.

Model	cRIO-9075
Manufacturer	National Instruments
Part Number	781715-01
Type	CompactRIO Controller
Slots	4
CPU Frequency	400 MHz
Operating Temperature Range	-20 °C to 55 °C
Dimensions	7.0 x 3.4 x 2.5 in.
Weight	22.7 oz.
Warranty	2-3 Year Warranty
cRIO-9075 Manual	User Manual and Maintenance Manual Available for Download
Price	Request a quote

Associated part numbers for cRIO-9075:

National Instruments cRIO-9075 Frequently Asked Questions

Question: Can I use my NI-9191 Wireless Chassis with my National Instruments NI cRIO-9075?

Answer: You cannot use the NI-9191 Wireless Chassis with the Controller. The NI-9191 requires the DAQmx driver, which is not compatible with the controller.

Question: Can I use the cRIO 9075 for advanced monitoring applications?

Answer: Yes, the Controller is embedded and is ideal for advanced control and monitoring applications.

Question: Will the NI cRIO-9075 run a power-on self-test when you power it on?

Answer: When the controller has power turned on, it will run a power-on self-test (POST).
