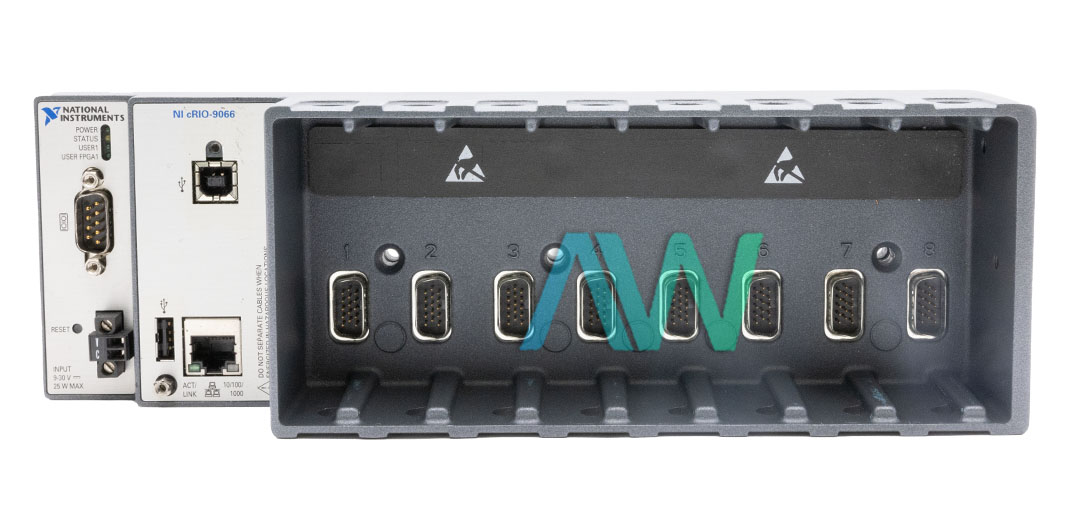

cRIO-9066 National Instruments CompactRIO Controller | Apex Waves | Image

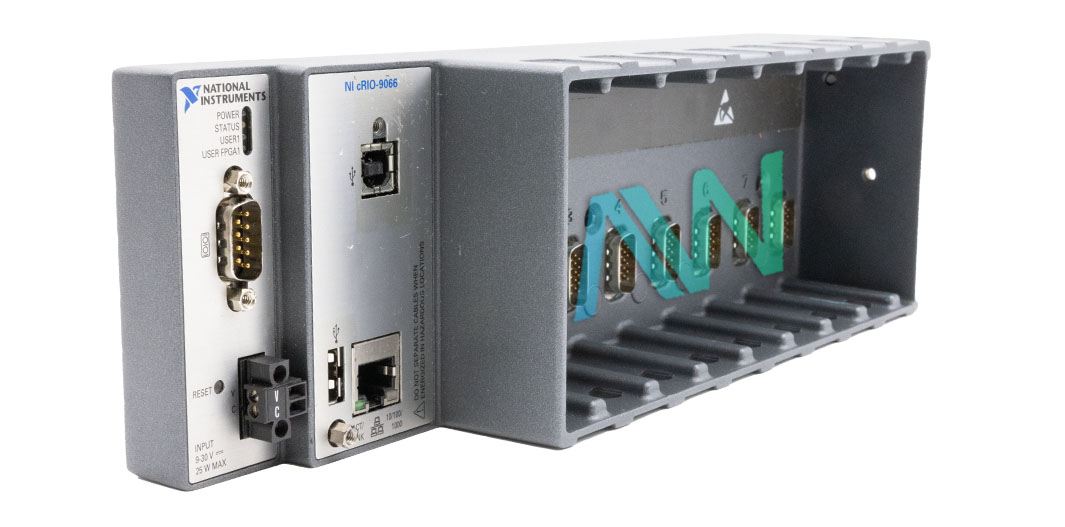

cRIO-9066 National Instruments CompactRIO Controller | Apex Waves | Image
cRIO-9066 New
cRIO-9066 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

cRIO-9066 National Instruments CompactRIO Controller | Apex Waves | Image
cRIO-9066 National Instruments CompactRIO Controller | Apex Waves | Image
cRIO-9066 New
cRIO-9066 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments cRIO-9066 CompactRIO Controller

The National Instruments cRIO-9066 (Part Number: 783169-01) is a CompactRIO controller with a 667 dual-core processor, 512 MB storage, and 256 MB DRAM, equipped with 8 slots. This embedded controller is ideal for advanced monitoring and controlling applications. The NI cRIO-9066 comes equipped with a real-time processor (running the National Instruments Linux Real-Time OS, as well as an FPGA). This controller comes equipped with one USB device port (USB 2.0 Hi-speed with a standard B connector, which transfers data at a maximum rate of 480 Mbps), one RS-232 serial port, one USB host port (USB 2.0 Hi-speed with a standard A connector, which transfers data at a maximum rate of Mbps), and one RJ-45 Ethernet port. It facilitates the connection of the device to a host computer/network by means of Ethernet.

The Ethernet port incorporated in the cRIO NI 9066 is a tri-speed, gigabit port, which comes configured and enabled to automatically obtain an IP address. The serial port provided in this model can be employed for connecting various serial devices, such as input devices and displays. The RS-232 serial port supports communication with serial instruments, PLCs, HMIs, and other industrial serial devices. For device configuration, debugging, maintenance, and application deployment, users can use the USB device port. Also, the device can be configured using the Measurement & Automation Explorer (MAX).

The RESET button can reboot the controller and also force startup into safe mode for troubleshooting and software recovery. In addition to a POWER LED and a STATUS LED, two USER-configurable LEDs are available on the front panel. The user can utilize the RT LEDs VI to define the USER1 LED, POWER LED, STATUS LED, and FPGA LED. This CompactRIO controller has an internal real-time clock with an accuracy of 5 ppm.

The NI cRIO 9066 operates on the NI-RIO device drivers 14.0 or later versions. Also, it runs on a variety of application software—LabVIEW 2014 or later versions, LabVIEW Real-Time Module 2014 or later versions, and LabVIEW FPGA Module 2014 or later versions.

ModelcRIO-9066
ManufacturerNational Instruments
Part Number783169-01
HTS Code8471500150
TypeCompactRIO Controller
Slots8 C-series module slots
PortsOne Ethernet
Storage512 MB of nonvolatile flash storage
Operating SystemNI Linux Real-Time
Weight36.97 oz.
Warranty2-3 Year Warranty
cRIO-9066 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a quote

Associated part numbers for cRIO-9066:

National Instruments cRIO-9066 Frequently Asked Questions



Question: What is the NI cRIO-9066 used for?

Answer: The NI cRIO-9066 is an embedded industrial controller designed for real-time control, data acquisition, machine monitoring, and automation applications. It combines a real-time processor, FPGA, and modular C Series I/O in one rugged platform.



Question: What is the maximum baud rate for the serial port on the NI CRIO 9066?

Answer: The maximum baud rate for the controller is 230.4 kbps.



Question: Does the cRIO-9066 include an FPGA?

Answer: Yes. The controller includes a Xilinx Zynq-7020 FPGA, which enables deterministic timing, custom logic, and high-speed signal processing directly in hardware.



Question: How many I/O slots are available on the cRIO-9066?

Answer: The cRIO-9066 has 8 C Series module slots, allowing installation of analog, digital, motion, CAN, serial, and specialty I/O modules.



Question: Does the cRIO-9066 require any accessories for operation?

Answer: The controller requires an industrial power supply.
