Modular Systems > National Instruments > CompactRIO Controllers

cRIO-9065 In Stock | Ships Today

Q: What is the NI cRIO-9065 used for?

The NI cRIO-9065 is a rugged embedded controller designed for real-time control, monitoring, and industrial automation. It combines a real-time processor, FPGA, and modular C Series I/O in one compact platform.

Q: How many I/O slots are available?

The cRIO-9065 has 4 C Series module slots, supporting analog, digital, motion, and specialty I/O modules.

cRIO-9065, 4-Slot, 512 MB RAM, 2 Ethernet Ports, Embedded CompactRIO Controller

Rated 4.7/5 | 19 ratings

cRIO-9065 National Instruments CompactRIO Controller | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

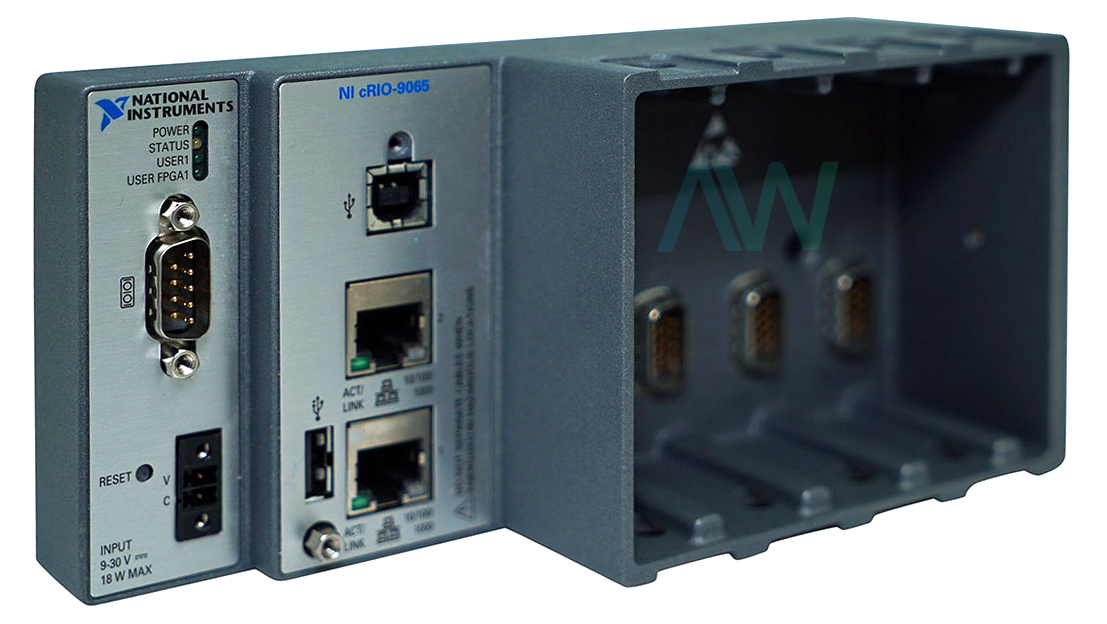

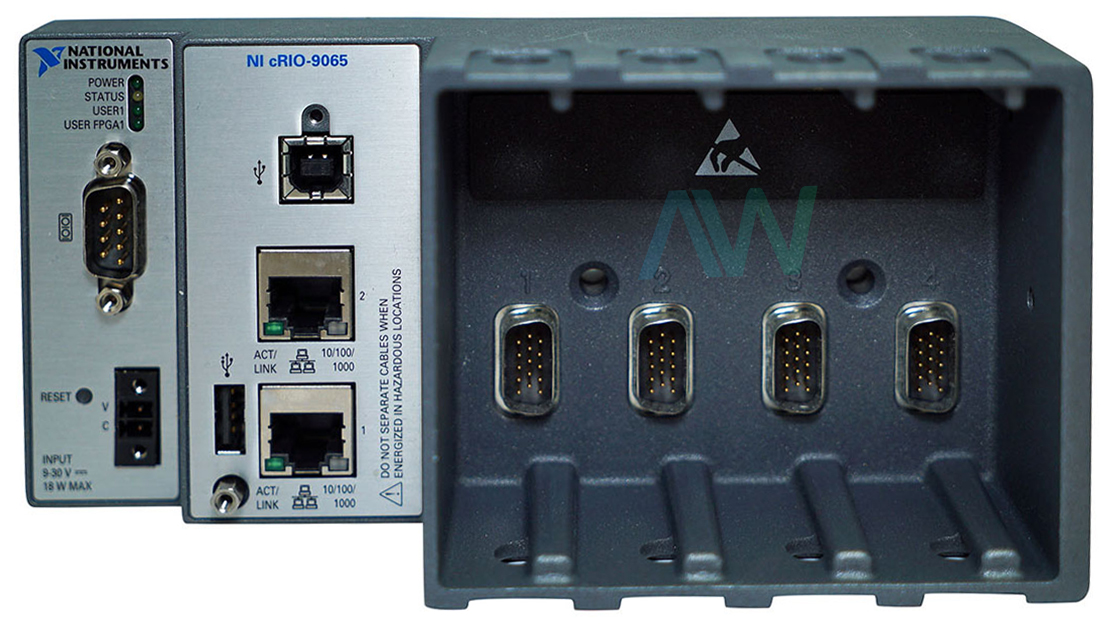

National Instruments cRIO-9065 CompactRIO Controller

The cRIO-9065 (part numbers: 783832-01 and 783832-02) CompactRIO controller is a rugged, fanless, embedded controller designed for advanced real-time control and monitoring applications with modular I/O. It is used in applications such as embedded control systems, machine monitoring, and test systems with real-time I/O and FPGA logic. It can follow the conventions built up for UNIX-style working frameworks. Other LabVIEW Real-Time targets take after the Microsoft Windows-style conventions.

To get the maximum allowable ambient temperature of 70°C, the controller must be mounted horizontally on a flat, metallic, vertical surface, such as a panel or wall. It can be mounted directly to the surface or by using the NI Panel Mounting Kit. The user also has the option to mount the cRIO-9065 in several other ways: on a non-metallic surface, on a 35 mm DIN rail, on a work area, or in a rack. Placing the cRIO-9065 in these or other arrangements can lessen the most extreme passable surrounding temperature and can influence the average exactness of the modules in this compactRIO controller.

The weight of the controller is approximately 696 g (unloaded). It supports extended industrial temperature operation (e.g., -40°C to +70°C on some listings; consult the specific manual for exact ranges and mounting conditions).

Model	cRIO-9065
Manufacturer	National Instruments
Part Numbers	783832-01, 783832-02
Type	CompactRIO Controller
Slots	4
CPU Frequency	667 MHz
Storage	1 GB nonvolatile flash storage
Dimensions	7.01 x 3.44 x 2.63 in.
Weight	24.56 oz.
Warranty	2-3 Year Warranty
cRIO-9065 Manual	User Manual and Maintenance Manual Available for Download
Price	Request a quote

Associated part numbers for cRIO-9065:

National Instruments cRIO-9065 Frequently Asked Questions

Question: What is the NI cRIO-9065 used for?

Answer: The NI cRIO-9065 is a rugged embedded controller designed for real-time control, monitoring, and industrial automation. It combines a real-time processor, FPGA, and modular C Series I/O in one compact platform.

Question: What type of operating system does the cRIO-9065 use?

Answer: The controller has a real-time processor running the NI Linux Real-Time OS.

Question: Does the NI cRIO-9065 have a fan?

Answer: No, the controller is fanless.

Question: How many I/O slots are available?

Answer: The cRIO-9065 has 4 C Series module slots, supporting analog, digital, motion, and specialty I/O modules.
