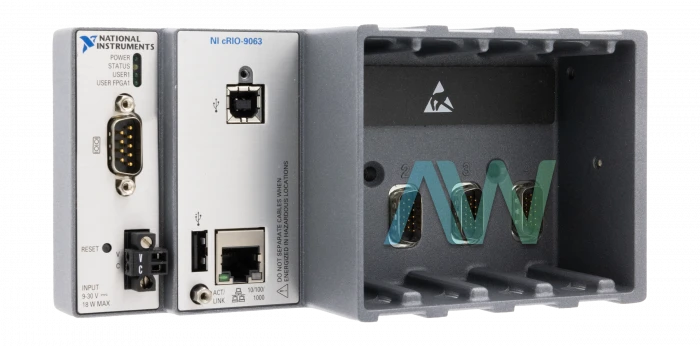

cRIO-9063 NI cRIO Controller | In Stock Ships Today | Image
cRIO-9063 NI cRIO Controller | In Stock Ships Today | Image
cRIO-9063 New
cRIO-9063 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

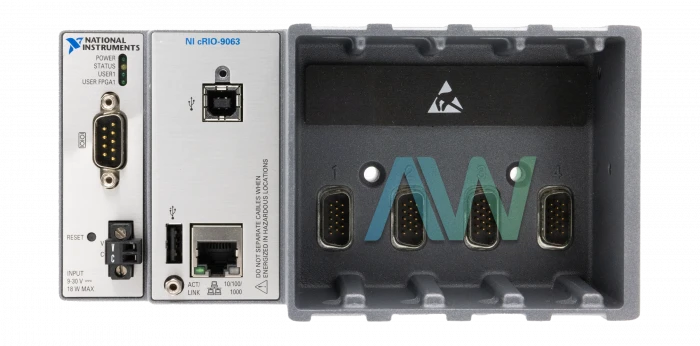

cRIO-9063 NI cRIO Controller | In Stock Ships Today | Image
cRIO-9063 NI cRIO Controller | In Stock Ships Today | Image
cRIO-9063 New
cRIO-9063 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments cRIO-9063 CompactRIO Controller

The cRIO‑9063 (Part Number: 783830-01) is an embedded controller designed to control C Series modules. This 2-core controller includes a Xilinx Zynq-7000 FPGA and offers 512 MB of nonvolatile memory, making it an excellent choice for a wide range of testing scenarios. Supported by a 32-bit NI Linux Real-Time OS, the cRIO‑9063 boasts plenty of processing power for different applications. This device offers a variety of network ports, including one Gigabit Ethernet port, one USB host port, one USB device port, and one serial port.

The USB host port of the cRIO‑9063 controller features a standard “A” connector, while the USB device port uses a standard “B” connector. Both of these ports are equipped with a maximum data rate of 480 Mbps, providing high-speed connectivity for external accessories. Designed with reverse-voltage protection, the cRIO‑9063 CompactRIO controller is safeguarded against damage caused by opposing polarities.

Additional hardware such as input devices or displays can be easily connected to the cRIO‑9063 using the controller’s RS-232 serial port. This device also includes an RJ-45 Gigabit Ethernet port, which supports DHCP or static configuration via MAX. This Ethernet port can be configured in the Measurement & Automation Explorer (MAX) tool.

In terms of power, the voltage input range of the cRIO‑9063 controller spans from a minimum of 9 VDC to a maximum of 30 VDC. The battery life of the module is typically up to 10 years under normal conditions. It is recommended that the controller be operated within temperatures ranging from -20 °C to 55 °C with a noncondensing humidity range of 10% to 90%. When in storage, the CompactRIO controller can be safely kept in an even wider temperature range of -40 °C to 85 °C with a noncondensing humidity ranging from 5% to 95%.

When unloaded, the cRIO‑9063 weighs 683 g (24.10 oz) and measures 178.1 mm × 87.3 mm × 64.3 mm (7.01 in. × 3.44 in. × 2.63 in.) in physical dimensions.

ModelcRIO-9063
ManufacturerNational Instruments
Part Number783830-01
TypeCompactRIO Controller
Slots4
CPU Frequency667 MHz
Storage512 MB
Dimensions7.01 x 3.44 x 2.63 in.
Weight24.10 oz.
Warranty2-3 Year Warranty
cRIO-9063 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a quote

Associated part numbers for cRIO-9063:

National Instruments cRIO-9063 Frequently Asked Questions



Question: What is the NI cRIO-9063 used for?

Answer: The cRIO-9063 is used for real-time control, monitoring, and data acquisition.



Question: Does the cRIO-9063 have a file system?

Answer: Yes, the cRIO-9063 has a file system.



Question: What type of controller is the cRIO-9063?

Answer: The cRIO-9063 is an embedded real-time controller with a reconfigurable FPGA designed for C Series modules.
