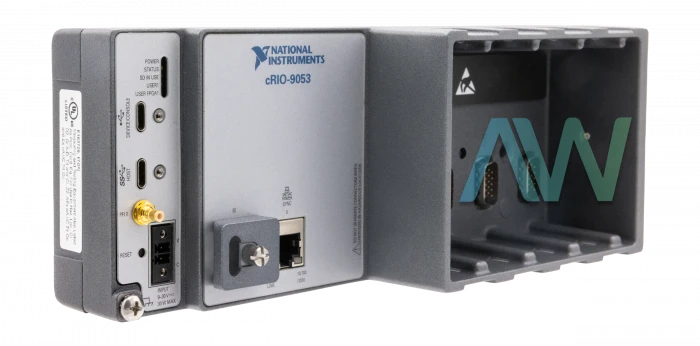

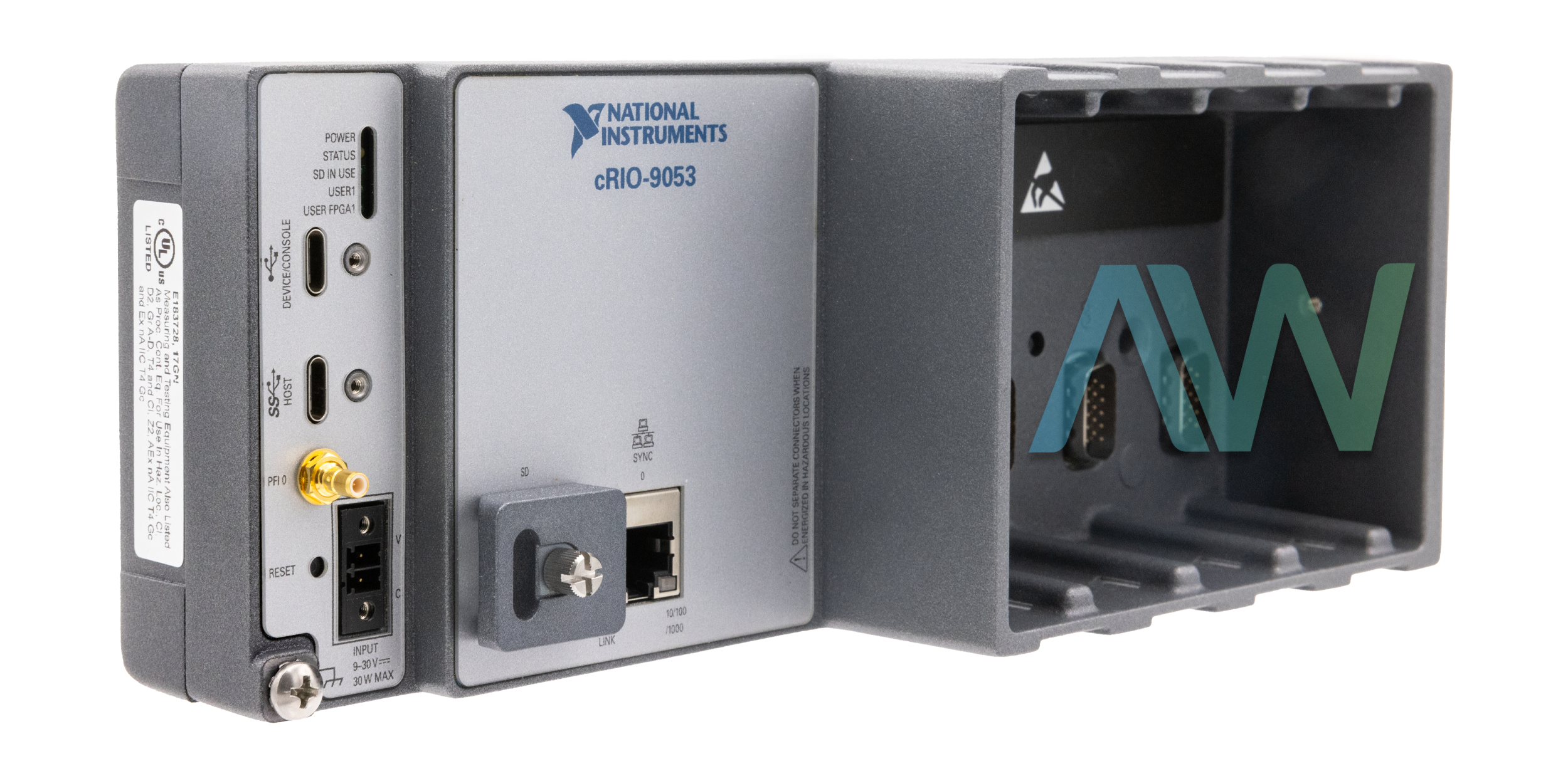

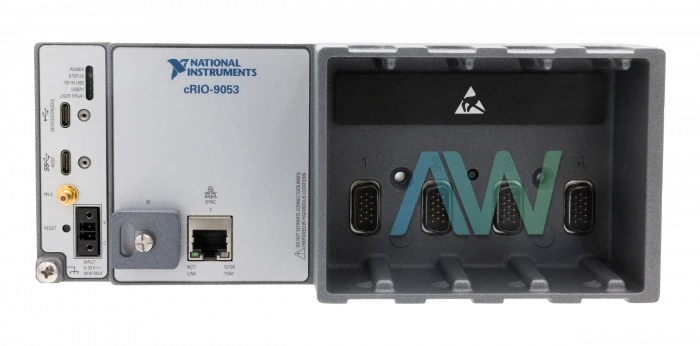

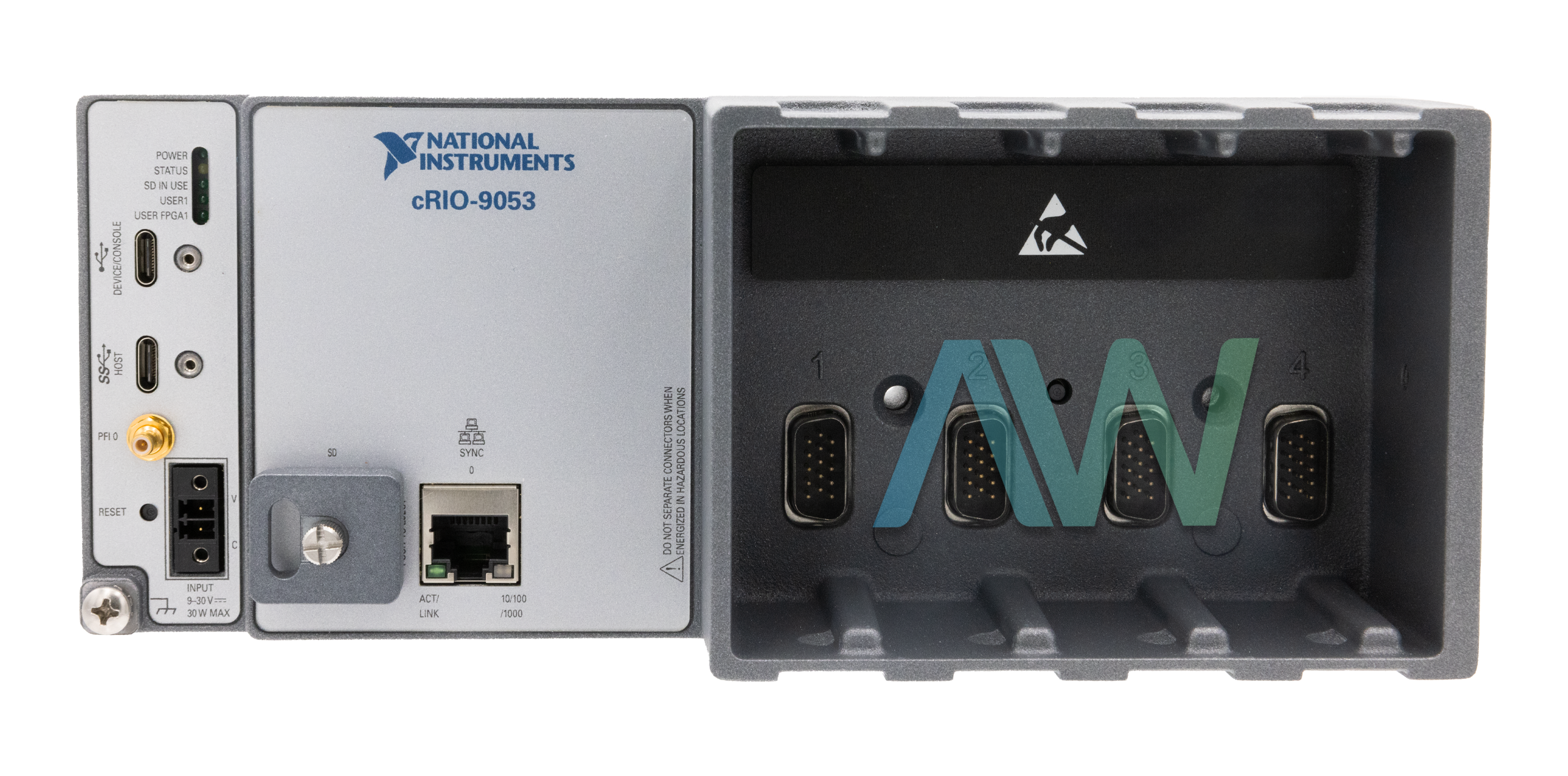

National Instruments cRIO-9053 CompactRIO Controller
Featured with a dual-core CPU and 4 GB of nonvolatile storage, the NI cRIO-9053 (part number: 786424-01) is from National Instruments. This 4-slot controller is designed for deterministic control, high-speed acquisition, and edge processing. In addition to an Intel Atom processor, the cRIO-9053 has an Artix-7 FPGA. It is designed to accommodate a total of 4 C Series modules. You can use four similar or different modules for creating a fully customized control scheme, according to the nature and requirements of your application.
The NI cRIO-9053 utilizes TSN to provide you with deterministic communications and comes with 1 USB 2.0 device port, 1 USB 3.1 host port, 1 Gigabit Ethernet port, 1 SD card slot, and 1 trigger line. The availability of a MicroSD card slot enables you to store important data on the device. The CompactRIO Controller is designed to run with the Linux real-time operating system. The I/O available on this CompactRIO Controller can be accessed through the LabVIEW FPGA module or with the NI-DAQmx driver software.
This CompactRIO controller comes equipped with a 1.33 GHz 2-core Intel Atom CPU. The volatile memory incorporated in this rugged CompactRIO controller is a DDR3L, 1 GB DRAM, which is designed to operate with a maximum theoretical data rate of 8.55 GB/s.
| Model | cRIO-9053 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 786424-01 |
| Type | CompactRIO Controller |
| Slot Count | 4 |
| Processor Core | 1.33 GHz Dual Core Intel Atom |
| FPGA | Artix-7 50T |
| Maximum Power Consumption | 15-17 W (depending on loaded devices) |
| Dimensions | 8.72 in. × 3.25 in. × 3.53 in. |
| Nonvolatile Storage | 4 GB |
| Warranty | 2-3 Year Warranty |
| cRIO-9053 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a quote |
Associated part numbers for cRIO-9053:
National Instruments cRIO-9053 Frequently Asked Questions
Question: How many DMA channels does the FPGA of the cRIO-9053 have?
Answer: The FGPA has 16 DMA channels.
Question: How many counters/timers does the cRIO controller have?
Answer: The cRIO-9053 has 4 general-purpose counters/timers.
Question: What is the voltage input range of the cRIO-9053?
Answer: The voltage input range, measured at the power connector, is 9 V DC to 30 V DC.
Question: What is the maximum power consumption of the CompactRIO Controller?
Answer: The cRIO-9053 has a maximum power consumption of approximately 15–17 W depending on loaded I/O and USB devices.
cRIO-9053 PDF Manuals
CRIO-9053-SAFETY-ENVIRONMENTAL-AND-REGULATORY-INFORMATION.PDF
