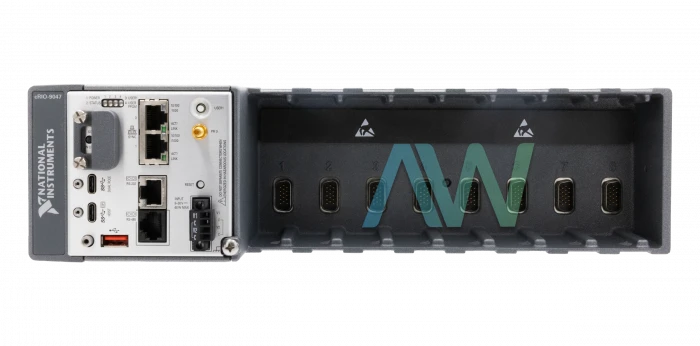

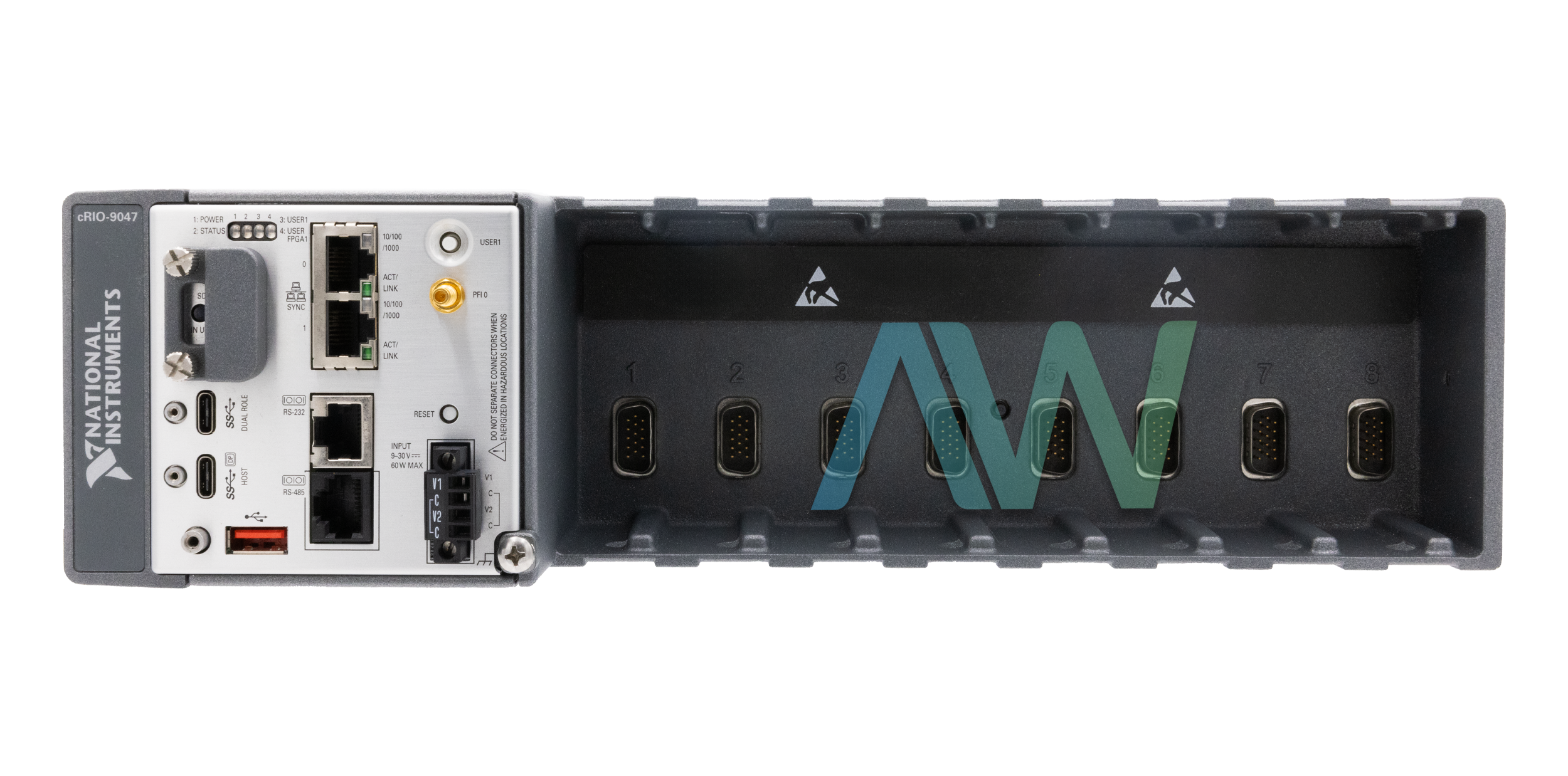

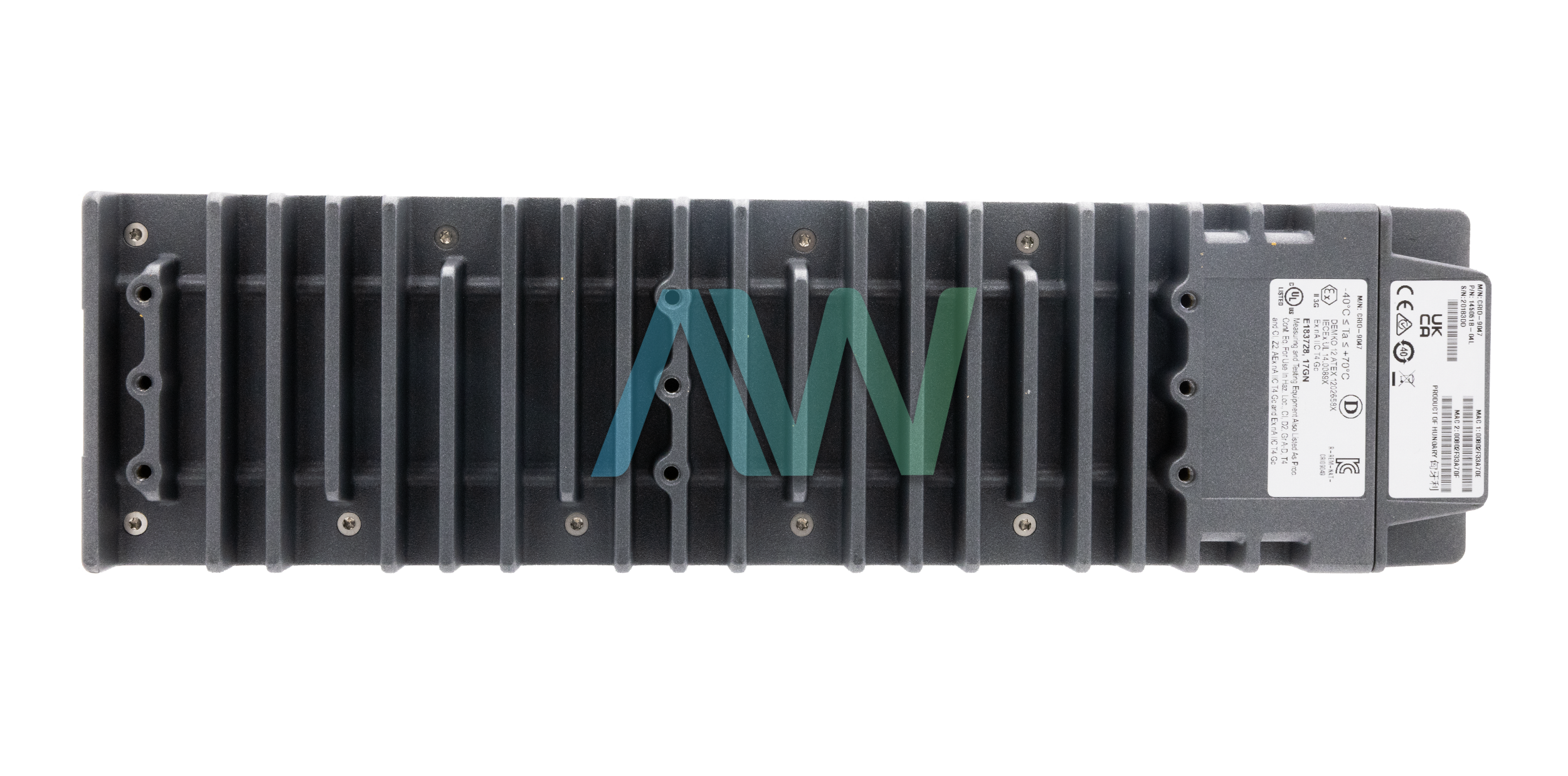

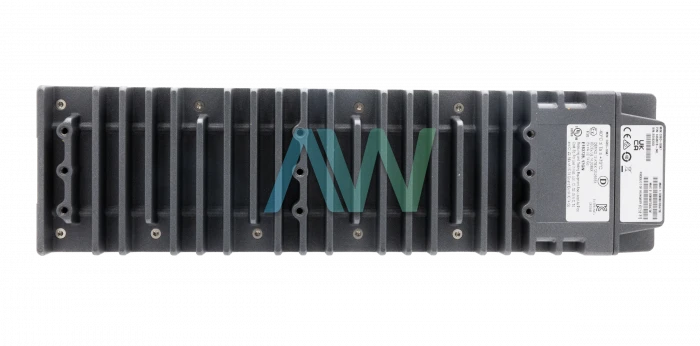

National Instruments cRIO-9047 CompactRIO Controller
The cRIO-9047 (Part Numbers: 785621-01 and 785621-02) is a CompactRIO controller from National Instruments with a 4-core Intel Atom E3940 CPU. Equipped with 2 network/Ethernet ports, this controller is compatible with IEEE 802.3 and has a maximum cabling distance of 100 m/segment. The two serial ports of the device, RS-232 and RS-485, have maximum baud rates of 115,200 b/s and 230,400 b/s, respectively.
This cRIO controller features 4 GB of nonvolatile memory, and the volatile memory has a max theoretical data rate of 12.8 GB/s. There are also three USB ports on the cRIO-9047, two host ports (USB Type-A and USB Type-C) and a USB Type-C port that is a dual-role port (as either device or host). The maximum data rate for the USB Type-A port is 480 Mb/s. For the USB Type-C ports, the max data rate is 5 Gb/s.
The reconfigurable FPGA of the cRIO-9047 is a Xilinx Kintex-7 7K70T type with 4,860 kbits of available block RAM. When the user targets LabVIEW to an FPGA device, they can approach just the LabVIEW VIs and capacities that bode well on the FPGA gadget. One possible scenario is that a regular FPGA gadget does not approach a plate drive, so file I/O capacities are not accessible on the Functions palette when the user focuses on that gadget.
When unloaded, the physical dimensions of the cRIO-9047 measure 12.94 in. × 3.47 in. × 4.77 in. (328.8 mm × 88.1 mm × 121.2 mm) and weigh 4 lbs, 15 oz (2,250 g). The operating temperature range is -40 °C to 70 °C with a noncondensing operating humidity of 10% RH to 90% RH. For storage, the temperature range is -40 °C to 85 °C with a noncondensing storage humidity of 5% RH to 95% RH. These temperature and humidity ranges were tested in accordance with IEC 60068-2-1, IEC 60068-2-2, and IEC 60068-2-30.
| Model | cRIO-9047 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 785621-01 and 785621-02 |
| Type | CompactRIO Controller |
| Slots | 8 |
| FPGA | Kintex-7 70T |
| Ethernet Ports | 2 |
| Processor Core | Quad Core Intel Atom |
| CPU Frequency | 1.60 GHz |
| RAM Storage | 4 GB |
| Programming Method | LabVIEW FPGA, NI-DAQmx |
| GigE Vision Support? | Yes |
| TSN Enabled | Synchronization, Deterministic Communication |
| Operating Temp Range | -40 °C to 70 °C |
| Dimensions | 12.94 x 3.47 x 4.77 (328.8 mm × 88.1 mm × 121.2 mm) |
| Weight | 4 lbs., 15 oz. (2,250 g) |
| Warranty | 2-3 Year Warranty |
| cRIO-9047 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for cRIO-9047:
National Instruments cRIO-9047 Frequently Asked Questions
Question: Why does the NI cRIO-9047 have two part numbers?
Answer: One variation of the cRIO controller has conformal coating (Part Number: 785621-02), while the second variation (Part Number: 785621-01) does not have conformal coating.
Question: Why am I getting spam in the system log of the cRIO-9047 when running C++?
Answer: If you’re getting spam when running C++, it’s usually because you have disabled the LabVIEW Project Access on the cRIO-9047.
Question: Where would I use the VISA functions available on the controller?
Answer: You should be able to use the VISA functions with the serial port of your NI cRIO-9047.
Question: How many USB ports does the cRIO-9047 have?
Answer: There are 3 USB ports on the CompactRIO Controller.
