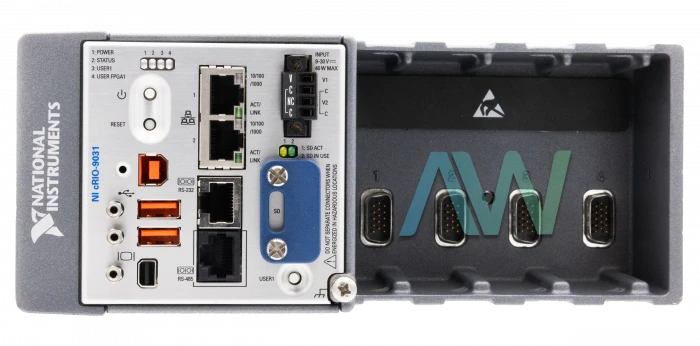

cRIO-9031 National Instruments CompactRIO Controller | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

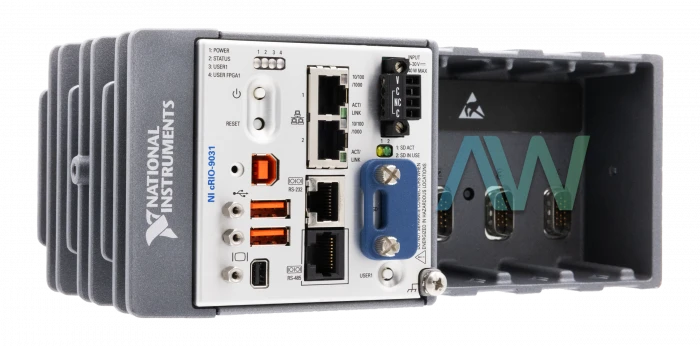

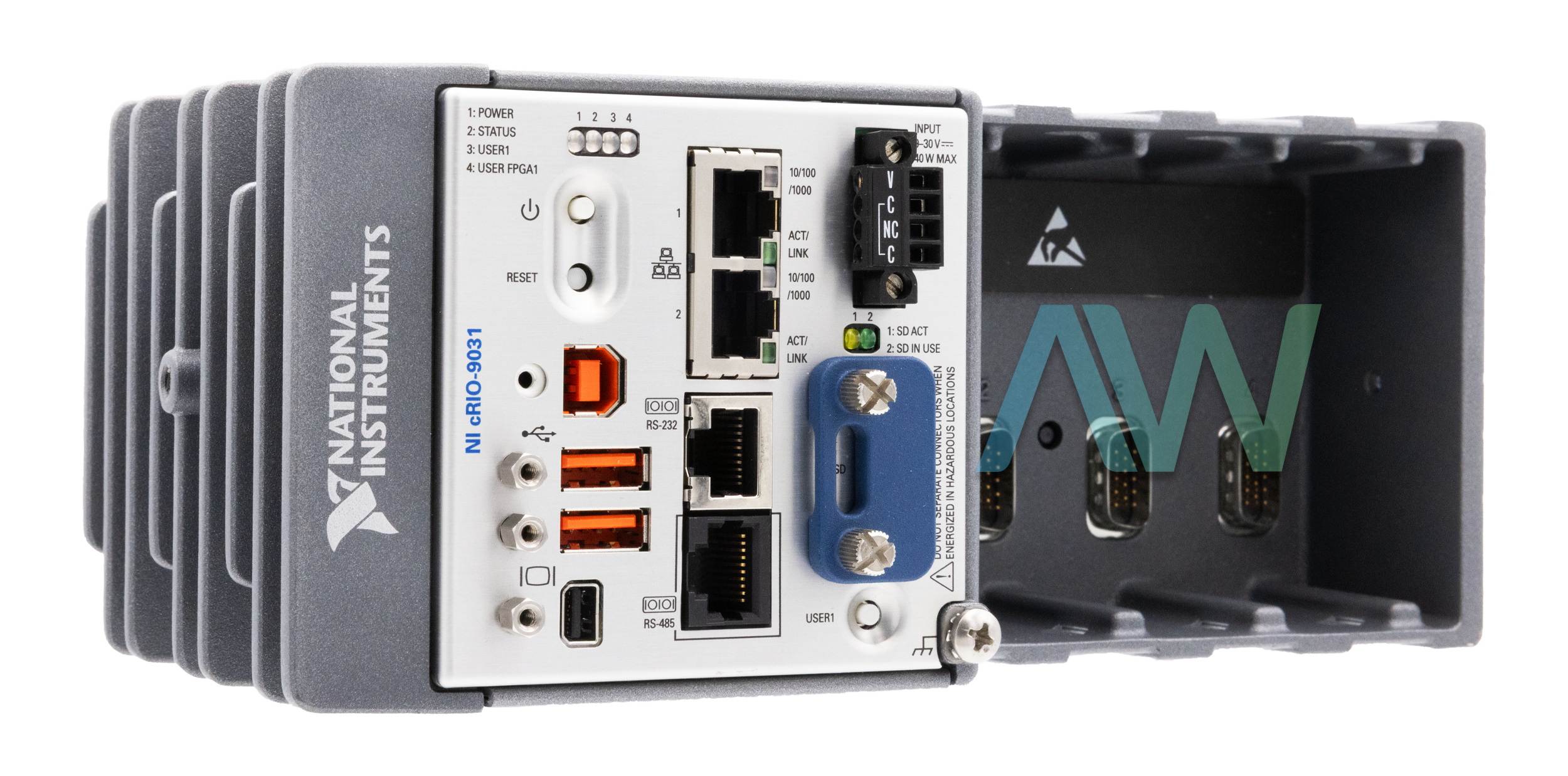

National Instruments cRIO-9031 CompactRIO Controller

The cRIO-9031 is a 4-slot compact RIO controller. This module is available under part number 783451-01. The cRIO-9031 is a software-designed controller with an onboard FPGA chipset. It supports the Linux RT operating system. All these features help simplify application programming by adding a local HMI. The cRIO-9031 can perform timing and triggering tasks. You can implement flexible triggering, using digital triggers, analog triggers, FPGA-based custom triggers, and software triggers.

The cRIO 9031 CompactRIO Controller features an Intel dual-core processor. The processor is an Intel Atom E3825 with a CPU frequency of 1.33 GHz and 1 MB of L2 cache. The NI cRIO-9031 supports many types of application software, which includes LabVIEW, LabVIEW RT, and the LabVIEW FPGA module. The controller also fully supports NI Linux RT and C/C++ development. The driver software compatible with the cRIO-9031 is the NI-RIO device driver.

The cRIO-9031 CompactRIO Controller incorporates eight different ports. It has two RJ-45 Ethernet ports. The ports are configurable in MAX. These ports are compatible with a CAT-5E shielded Ethernet cable up to 100 m. This model also has an SD card slot. The cRIO-9031 supports up to 32 GB external cards. The cRIO 9031 also features serial communication with RS-232 and RS-485/422 ports available for this purpose. This controller also has a mini-display port. Other ports available in the controller are 2 USB host ports and 1 USB device port.

Model	cRIO-9031
Manufacturer	National Instruments
Part Number	783451-01
Type	CompactRIO Controller
CPU	Intel Atom E3825
CPU Frequency	1.33 GHz
Network/Ethernet Ports	2
Dimensions	8.64 x 3.47 x 4.30 in.
Weight	3 lbs., 15 oz. (with no modules installed)
Warranty	2-3 Year Warranty
cRIO-9031 Manual	User Manual and Maintenance Manual Available for Download
Price	Request a quote

Associated part numbers for cRIO-9031:

National Instruments cRIO-9031 Frequently Asked Questions

Question: What is the purpose of the USB host ports?

Answer: The USB host ports are designed to support common USB mass-storage devices and peripherals, such as USB Flash drives, keyboards, mice, USB-to-IDE adapters, and USB cameras

Question: How much nonvolatile storage is available on the cRIO controller?

Answer: The cRIO-9031 has 4 GB of nonvolatile storage.

Question: Does the cRIO-9031 have a removable SD card?

Answer: Yes, the controller has a removable SD card.

Question: How long can an Ethernet cable be for this controller?

Answer: To maintain the integrity of your Ethernet installation and prevent data loss, the Ethernet cable for the cRIO-9031 controller should not exceed 100 m (328 ft) in length.
