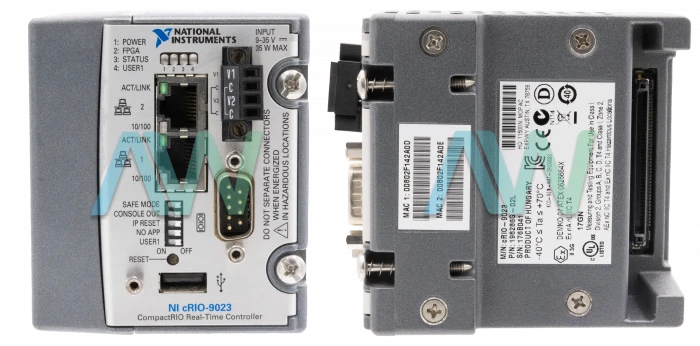

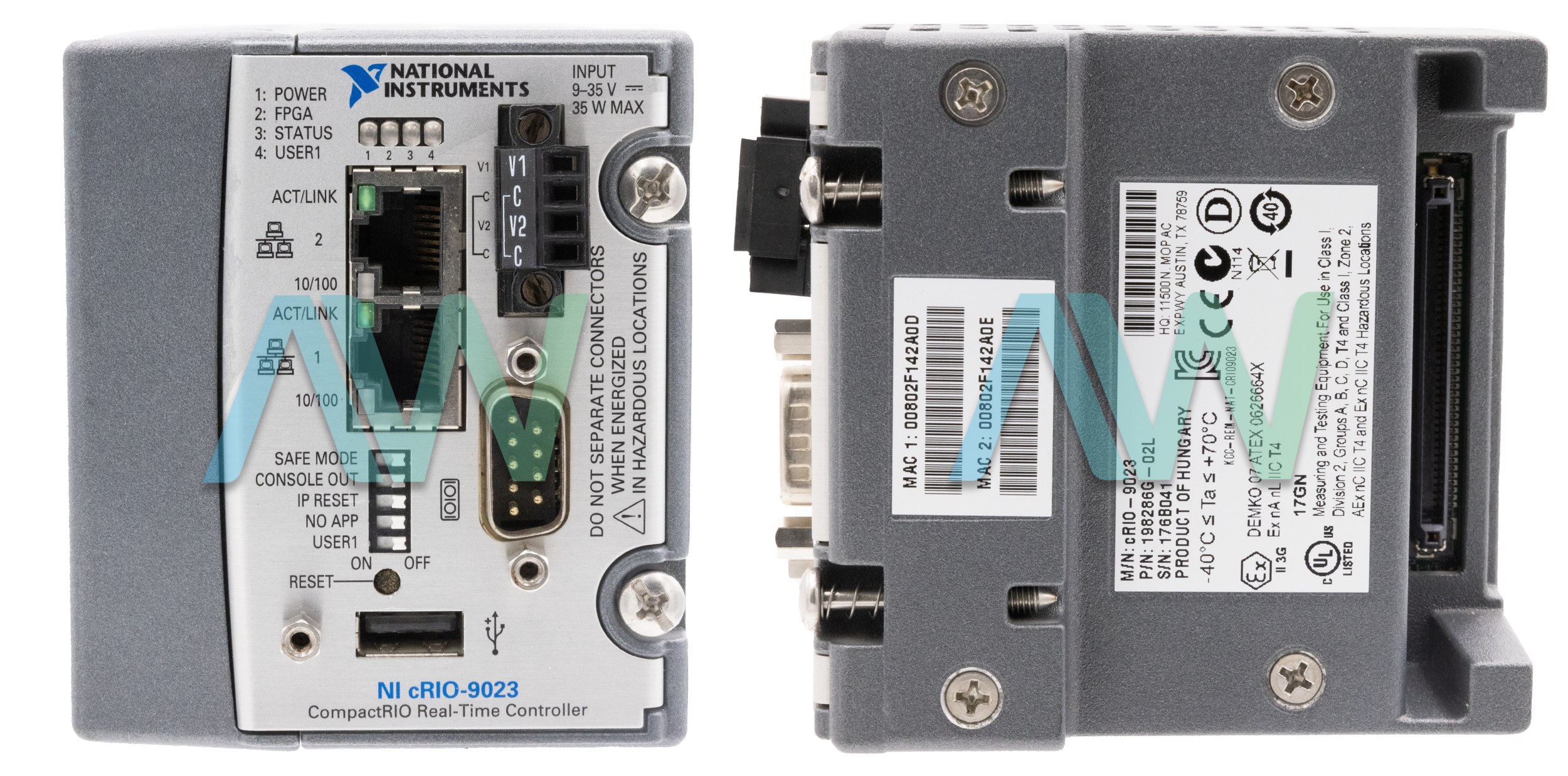

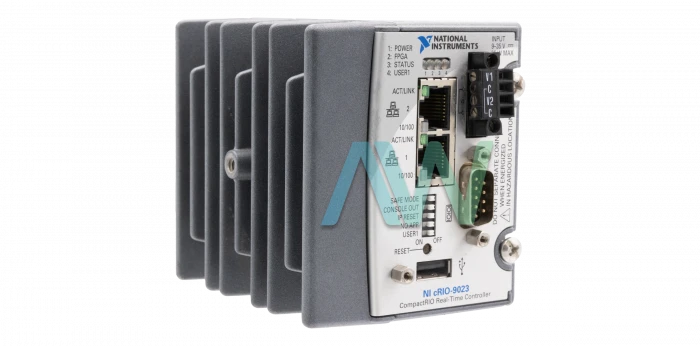

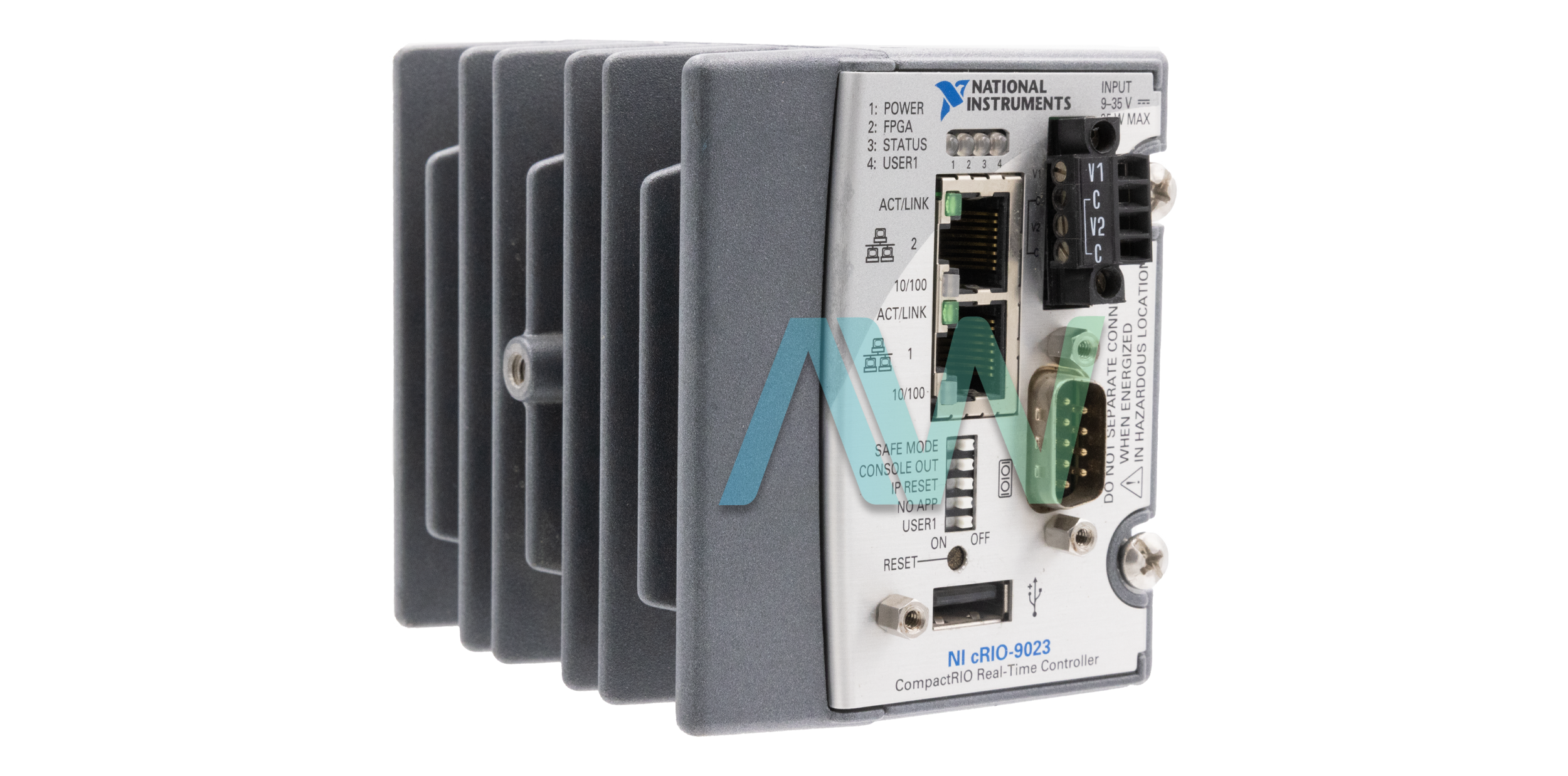

National Instruments cRIO-9023 CompactRIO Controller
The cRIO-9023 (part numbers: 781173-01 and 781173-02) is an embedded CompactRIO controller designed by National Instruments. The difference between the two versions is that part number 781172-02 comes with conformal coating, whereas part number 781173-01 does not have conformal coating. The cRIO 9023 has been designed for monitoring and control applications with C Series devices. The cRIO-9023 is compatible with older cRIO-configurable chassis. These chassis include FPGAs that can easily be programmed.
The NI cRIO-9023 CompactRIO Controller incorporates a 533 MHz real-time processor, which is the Freescale MPC8347 type. This model has two Ethernet ports. The Ethernet ports support a cabling distance up to 100 meters per segment. The NI cRIO 9023 supports a remote user interface through Ethernet ports. This model also has an RS-232 serial port. The baud rate of the serial port is in the range of 600 bps to 230.4 kbps. The controller also features a USB port. USB-based storage media can be connected to the cRIO-9023 through this port to increase the memory. The data rate of the USB port is up to 480 Mb/s. The non-volatile memory is 2 GB. The controller also has a DRAM size of 256 MB.
The cRIO-9023 CompactRIO Controller incorporates an internal real-time clock. The accuracy of this clock is 200 ppm. The power consumption of the controller when operating at full load is 35W. The controller requires a maximum power supply of 35 VDC. Filters are available in the cRIO-9023 to regulate the supplied power.
Physically, the controller weighs in at 21.5 oz (609 g). In operating conditions, the temperature range is -40 °C to 70 °C. When not in use, the storage temperature range of the device ranges from -40 °C to 85 °C. A 22 AWG to 14 AWG copper conductor wire is used with the screw-terminal wiring of the device.
The cRIO-9023 is no longer available from National Instruments, but the CompactRIO controller will remain available for repairs or purchase from Apex Waves in perpetuity.
| Model | cRIO-9023 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 781173-01, 781173-02 |
| Type | CompactRIO Controller |
| Memory | 2 GB |
| DRAM | 256 MB |
| Maximum Data Rate | 480 Mb/s |
| CPU | 533 MHz Freescale MPC8347 |
| Securement Type | Screw Flanges |
| Operating Temp Range | -40 °C to 70 °C |
| Storage Temp Range | -40 °C to 85 °C |
| Weight | 21.5 oz. |
| Warranty | 2-3 Year Warranty |
| cRIO-9023 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for cRIO-9023:
National Instruments cRIO-9023 Frequently Asked Questions
Question: Which power supply is required for the NI cRIO-9023?
Answer: The cRIO controller requires a maximum 35 VDC external power supply.
Question: How many power inputs does the CompactRIO Controller have?
Answer: The cRIO-9023 has two inputs, a primary power input, V1, and a secondary power input, V2.
Question: Does the cRIO-9023 have any reverse-voltage protection?
Answer: The controller has one layer of reverse-voltage protection.
Question: What is the maximum data rate of the cRIO-9023's USB port?
Answer: The maximum data rate is 480 Mb/s.
