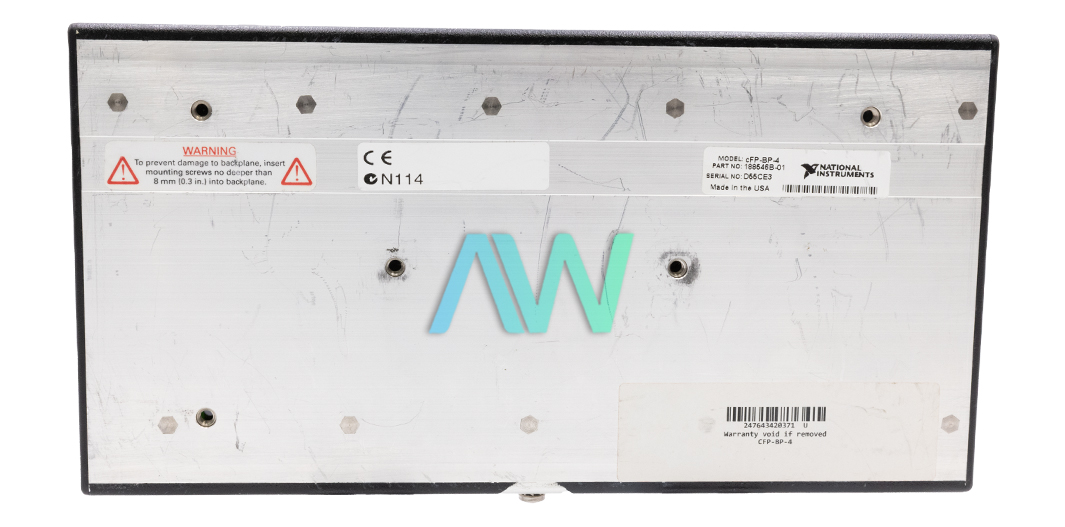

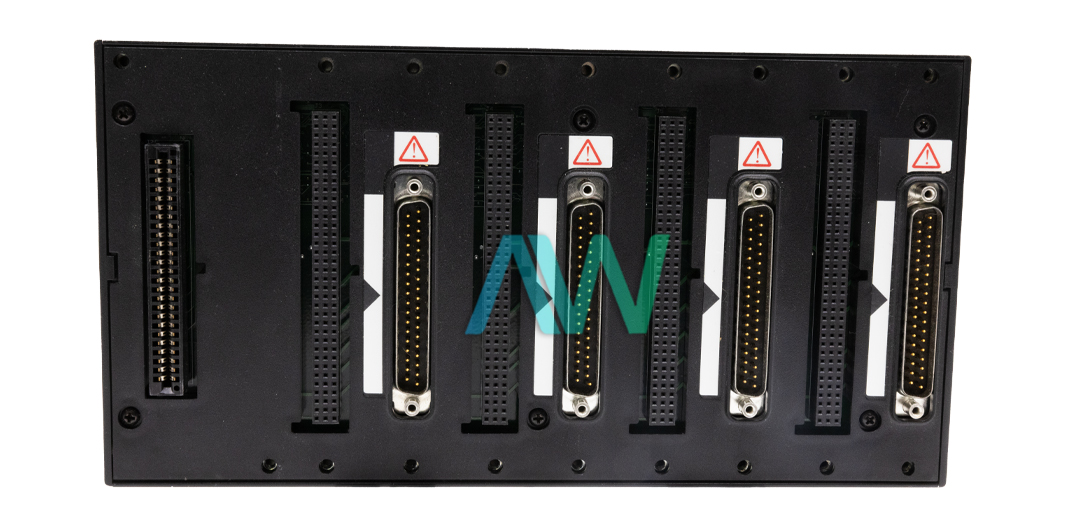

National Instruments cFP-BP-4 Backplane Module for Compact Fieldpoint

The NI cFP-BP-4 Backplane Module (part number: 778617-04) includes a protective earth (PE) ground terminal with optional 37-pin I/O cables. The module is shipped with a horizontal panel-mount kit.

Users have the option to buy a vertical board mount, a DIN rail mount, or a 19-inch rack-mount kit. These backplanes are utilized with Compact FieldPoint. Compact FieldPoint is intended for modern control applications that perform advanced embedded control, information logging, headless tasks, and Ethernet networks. Compact FieldPoint is intended for mechanical conditions with high shock, high vibration, and temperature extremes.

To power up this module, the user will need to look for the DIP switches on the controller, ensuring that the RESET IP switch is OFF. The power and STATUS LEDs power on first, and then after approximately 5 seconds, the STATUS LED begins flashing to indicate that the device is ready to be configured. The cFP-BP-4 has power requirements of 15 W at +24 VDC and a power supply range of 11 to 30 VDC.

The NI device can be programmed using software packages/application development environments such as LabVIEW or LabWindows/CVI. It can be configured using the Measurement & Automation Explorer (MAX) tool.

The NI device weighs 9.8 oz (278 g). It has recommended operating and storage temperature ranges of -25 to 60°C and -40 to 85°C, respectively; a non-condensing relative humidity range of 10 to 90%; and random and sinusoidal operating vibrations of 5 grms and 5 g, respectively, all at a frequency range of 10 to 500 Hz.

Model	cFP-BP-4
Manufacturer	National Instruments
Part Number	778617-04
Type	Backplane for Compact FieldPoint
Slots	4
Connectors	37-pin I/O Cables
Power Requirements with cFP System	24 VDC, 15 W
Power Supply Range	11 to 30 VDC
Software	LabVIEW Real-Time
Warranty	2-3 Year Warranty
cFP-BP-4 Manual	User Manual and Maintenance Manual Available for Download
Price	Request a Quote

Associated part numbers for cFP-BP-4:

National Instruments cFP-BP-4 Frequently Asked Questions

Question: Can the cFP-BP-4 be used for data-logging purposes?

Answer: Yes, the cFP backplane is designed for advanced embedded control, data logging, and Ethernet connectivity.

Question: What should I do before powering up the device?

Answer: Make sure the RESET IP switch is OFF before powering up.

Question: Which types of backplanes are available for mounting the cFP-BP-4?

Answer: Two different backplanes are available for mounting. The backplanes come with a cFP-PM-H horizontal mounting bracket, which provides mounting holes on either side of the backplane, so you can mount it to a panel.
