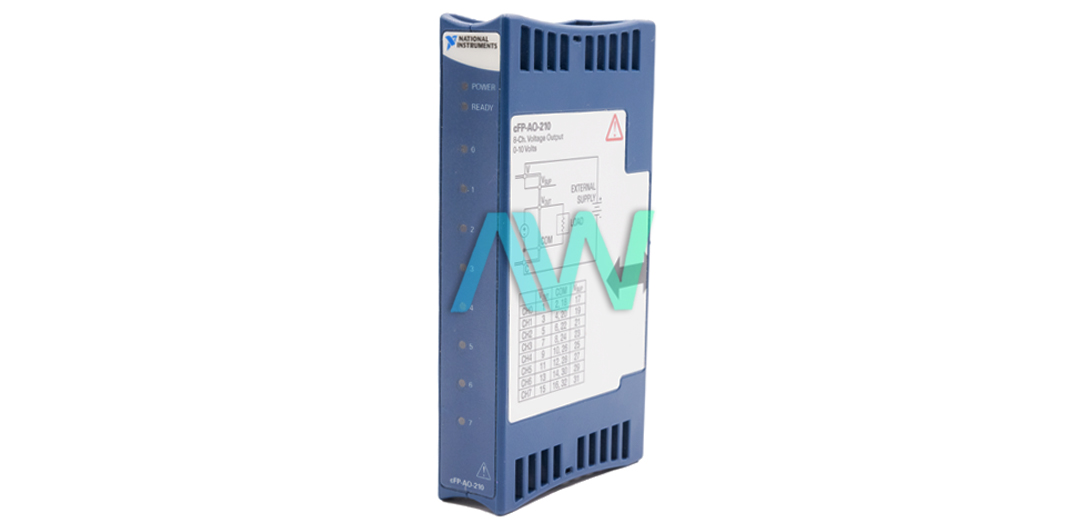

National Instruments cFP-AO-210 Analog Output Module for Compact Fieldpoint
The cFP-AO-210 (part number 777318-210) incorporates eight 0- to 10 V yield channels, created with a 12-bit DAC. Each channel gives a voltage source fit for providing up to 1 mA. This module allows the user to obtain up to 10 mA of sourcing current when using an external 15 to 30 VDC power supply. The device has an all-channel update rate of 200 Hz. The NI cFP-AO-210 receives operating power from a Compact FieldPoint backplane.

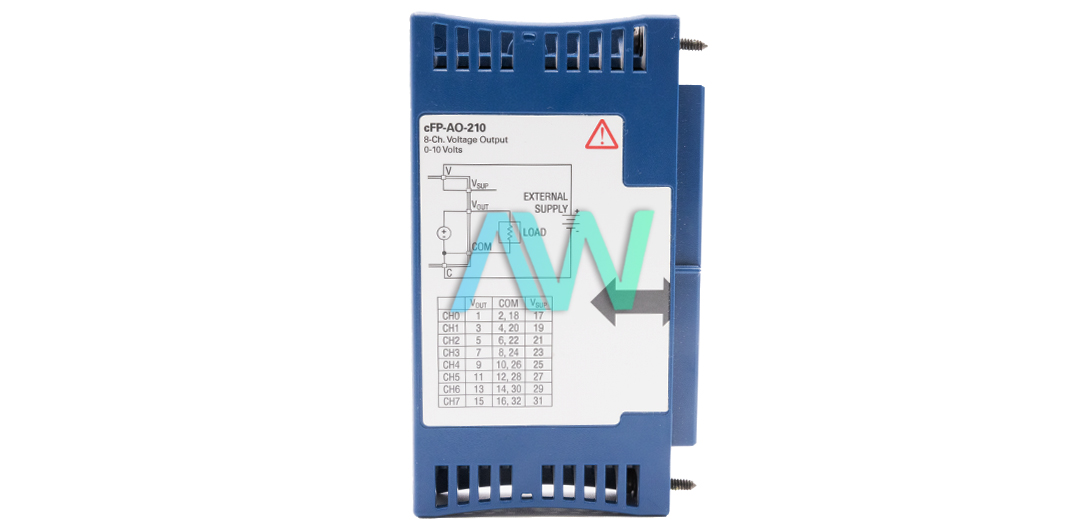

Vout is the name of every channel that comes with an output terminal, a typical terminal, COM, and Vsup, which is a supply terminal. The considerable number of channels that belong to the COM terminals are associated with each other and to the C terminals.
The processing plant default control setting for each channel is 0 V. The NI cFP-AO-210 has an overranging value of 0.2 V. Along these lines, the real full-scale scope of each channel is 0–10.2 V. This expanded range empowers the cFP-AO-210 to adjust for span and offset errors in field devices. The cFP-AO-210 comes with channels that include an observing circuit that distinguishes the measure of current streaming into or out of the channel. If this esteem surpasses the most extreme suitable value (1 mA with no outside supply or 10 mA with an outer supply), the circuit lights a red STATUS pointer for each influenced channel, reports the mistake to the system module, and alters the yield voltage so only the greatest permitted current flows. The mistake is accounted for before the yield is balanced. The device has a maximum conversion rate of 200 updates/s and a slew rate of 0.5 V/µs.
The NI device weighs 4.1 oz and has a recommended operating temperature range of -40 to 70°C, a storage temperature range of -55 to 100°C, a random operating vibration of 5 grms (at a frequency of 10 to 500 Hz), and a sinusoidal operating vibration of 5 g at a frequency of 10 to 500 Hz.
| Model | cFP-AO-210 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777318-210 |
| Type | Analog Output Module for Compact FieldPoint |
| Channels | 8 |
| Resolution | 12 bits |
| All Channel Update Rate | 200 Hz |
| Operating Temperature Range | -40 to 70°C |
| Weight | 4.1 oz. |
| Warranty | 2-3 Year Warranty |
| cFP-AO-210 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for cFP-AO-210:
National Instruments cFP-AO-210 Frequently Asked Questions
Question: Is there any way to build an external circuit to connect to the cFP-AO-210 to exceed the maximum current for the loads connected via an external power supply?
Answer: The module allows a maximum current for the loads connected via an external 15 to 30 VDC power supply to be 10 mA.
Question: What is the primary function of the NI cFP-AO-210 module?
Answer: Its primary function is to act as a current-limited voltage source.
Question: When using the NI cFP-AO-210, is there a way to switch the positive voltage to negative within LabVIEW?
Answer: No, you are not able to switch the positive voltage to negative within LabVIEW.
