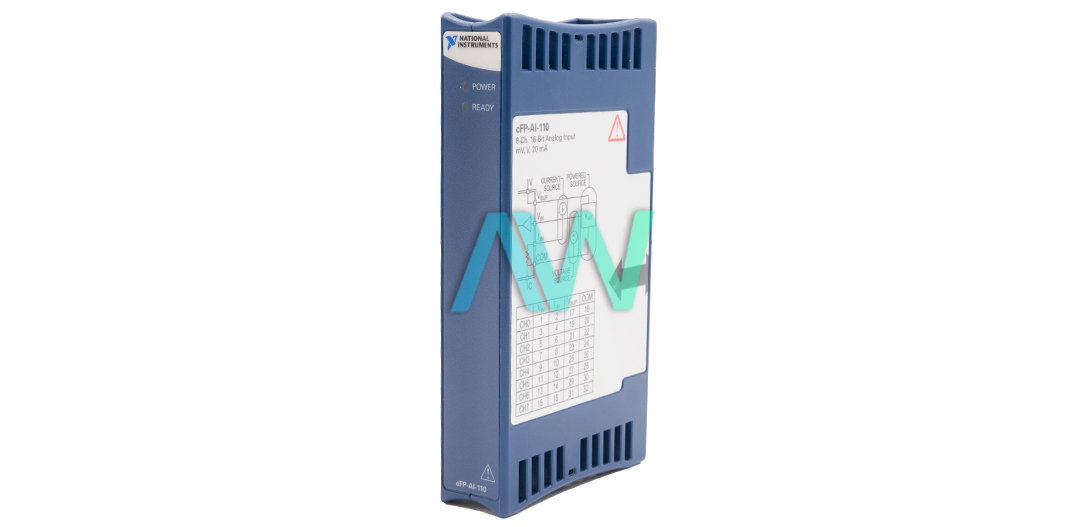

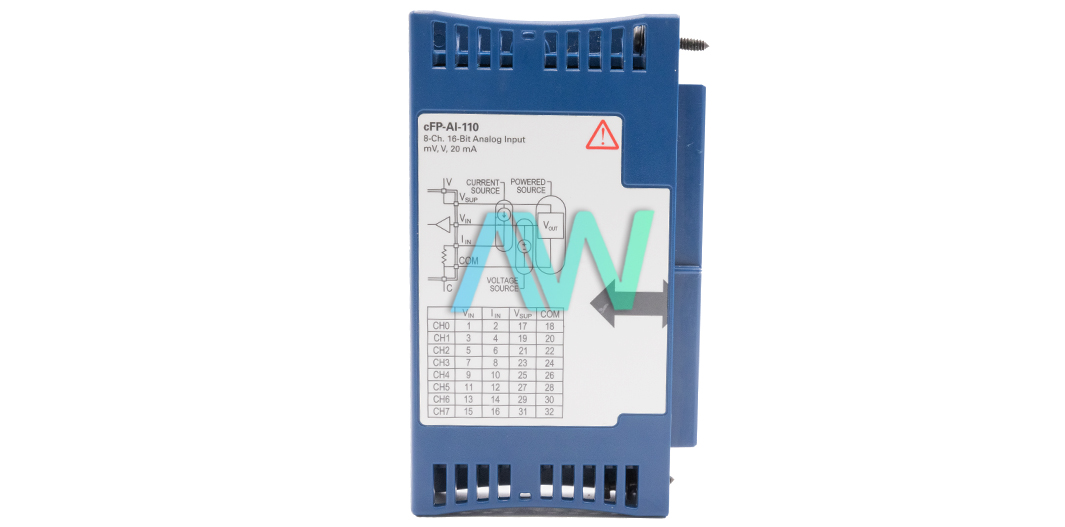

National Instruments cFP-AI-110 Analog Input Module for Compact FieldPoint
The National Instruments cFP-AI-110 (Part Number 777318-110) is an 8-channel, 16-bit, voltage and current analog input module for FieldPoint and Compact FieldPoint. This model comes featured with a software-selectable 50/60 Hz noise filter and offers a 5 Hz to 0.66 Hz update rate on all channels. The NI cFP-AI-110 is a versatile input module that can be employed for measuring voltages from millivolts to high-voltage levels.
Below are key features of the NI device:
- 8 analog voltage/current input channels
- 8 voltage input ranges of 0–1 V, 0–5 V, 0–10 V, ±60 mV, ±300 mV, ±1 V, ±5 V, and ±10 V.
- 3 current input ranges of 0–20, 4–20, and ±20 mA, and
- 3 filter settings of 50, 60, and 500 Hz.
This module can also be used for the measurement of 0 mA or 4 to 20 mA from transducers and transmitters. F This analog input module allows the user to connect to any compatible industrial sensor or unit under test directly to get highly accurate measurements. With under-ranging and over-ranging features, the NI cFP-AI-110 can measure sensors or inputs that are not calibrated according to the standard ranges.
This module comes featured with 250 Vrms of operational and 2,300 Vrms optical isolation. The NI cFP-AI-110 has a built-in bus for power distribution, which brings surplus power terminations on the module. This model consumes 350 mW of power and has a recommended operating temperature range of –40 to 70 °C and a storage temperature range of –55 to 85 °C. It weighs 4.8 oz. and measures 4.3 x 4.3 x 3.6 in. in physical dimensions. It offers an overvoltage protection feature up to ±40 V for voltage and ±25 V for current.
| Model | cFP-AI-110 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777318-110 |
| Type | Analog Input Module for Compact FieldPoint |
| Input Channels | 8 |
| Resolution | 16 bits |
| Update Rate | 5 Hz to 0.66 Hz |
| Dimensions | 4.3 x 4.3 x 3.6 in. |
| Weight | 4.8 oz. |
| Warranty | 2-3 Year Warranty |
| cFP-AI-110 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for cFP-AI-110:
National Instruments cFP-AI-110 Frequently Asked Questions
Question: Can I read a thermocouple using the NI cFP-AI-110?
Answer: Yes, you can take a thermocouple (TC) reading with the module.
Question: What units of measure does the cFP-AI-110 collect?
Answer: The Analog Input Module can measure millivolt, low voltage, or milliampere current signals.
Question: What are the filter settings for the National Instruments cFP-AI-110?
Answer: There are three filter settings: 50, 60, and 500 Hz.
Question: Why is my NI cFP-AI-110 running so slow?
Answer: If you’re experiencing slow running time, it sounds like the filter is being enabled. The update rate for your device is 1.23 seconds with the 60 Hz filter enabled.
