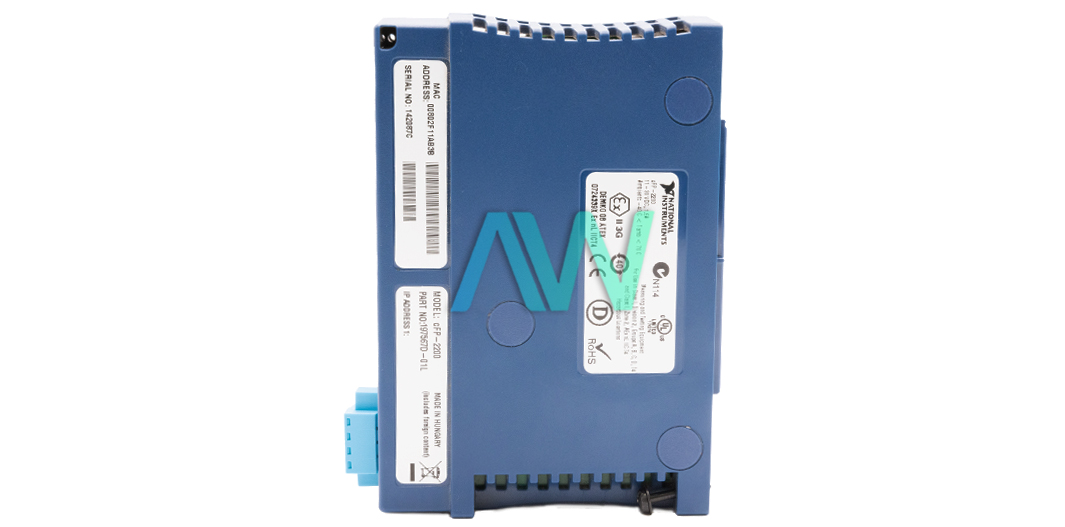

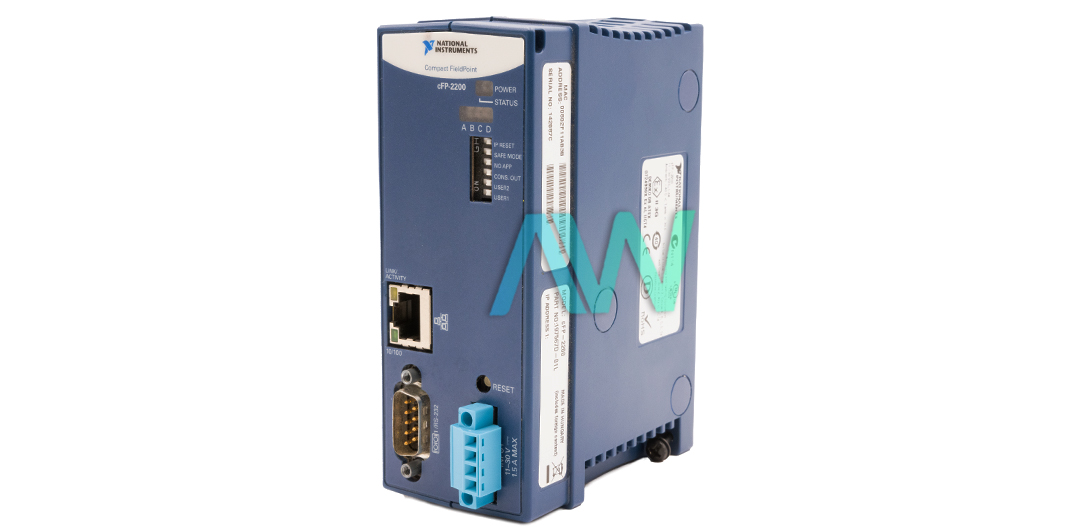

National Instruments cFP-2200 Controller for Compact FieldPoint
The National Instruments cFP-2200 (Part Number 777317-2200) is a 128 MB storage, 128 MB DRAM, and 400 MHz controller for NI Compact FieldPoint. This controller comes equipped with one serial port that can be used to connect a variety of serial devices, such as input or display devices. When power is applied to the NI cFP-2200, the controller initiates a power-on self-test, or POST. The cFP-2200 can be configured to launch a standalone embedded LabVIEW real-time application.
The system clock acquires the time and date from the internally existing real-time, high-precision clock at system startup. Users can also utilize the internal clock for the correction of the system clock's drift. The NI cFP-2200 has six DIP switches: NO APP, IP RESET, CONS OUT, SAFE MODE, USER 1, and USER 2. The two USER switches can be defined by the user for their own application. For embedded VIs, multiple remote front panels can be accessed through either a Web browser or LabVIEW. This allows the user to control and monitor any embedded VI from a remote location.
The cFP-2200 is fully compatible with IEEE 802.3 and offers 10 Mbps or 100 Mbps auto-negotiated communication rates. The maximum cabling distance possible with this controller is 100 meters/segment. With this module, the user can utilize a Class 2, 11 to 30 VDC external power supply. For systems where more than eight modules are required, a combination of a cFP-1808 expansion chassis and the cFP-2200 is a cost-effective and viable solution. With this combination, users can accomplish I/O expansion over serial or Ethernet. For connection to another network, the cFP-2200 has an RJ-45 Ethernet port on its controller front panel.
The cFP-2200 operates using FieldPoint software 6.0.1 or later versions and requires the installation of the LabVIEW Real-Time Module 8.5.1 or later versions—an application development environment.
cFP-2200 Obsolete Status has been announced by National Instruments, but the controller will still be available for purchase and repairs in perpetuity from Apex Waves.
| Model | cFP-2200 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777317-2200 |
| HTS Code | 8471500150 |
| Type | Controller for Compact FieldPoint |
| Serial Ports | 1 |
| RAM | 128 MB |
| Storage | 128 MB |
| Compatibility | IEEE 802.3 |
| Weight | 9.8 oz. |
| Warranty | 2-3 Year Warranty |
| cFP-2200 Manual | User and Maintenance Manuals Available for Download |
| Price | Request a quote |
Associated part numbers for cFP-2200:
National Instruments cFP-2200 Frequently Asked Questions
Question: What are the specifications of the NI cFP-2200's serial port?
Answer: The Controller has a single RS-232 serial port that allows for connection to peripherals.
Question: Why am I getting a server app error 1 stating “STM write metadata" when writing from a cFP-2200?
Answer: If you’re getting the STM write metadata error, it likely means that your listener ID is wired to the STM write instead of the connection ID.
Question: How long can I record on the cFP-2200?
Answer: On the cFP-2200, as long as you send the data back to the host machine that you are connected to, you will be able to continuously log data. You only need to be concerned about free space if you are storing data.
Question: What is the maximum cabling distance of the cFP-2200?
Answer: The maximum cabling distance is 100 meters per segment.
cFP-2200 PDF Manuals
CFP-2200-2210-2220-OPERATING-INSTRUCTIONS-AND-SPECIFICATIONS.PDF
FIELDPOINT-SAFETY-AND-RADIO-FREQUENCY-INTERFERENCE-READ-ME-FIRST.PDF
USING-FIELDPOINT-AND-COMPACT-FIELDPOINT-SAFELY-IN-HAZARDOUS-LOCATIONS-5BNOTE-TO-USERS5D.PDF
