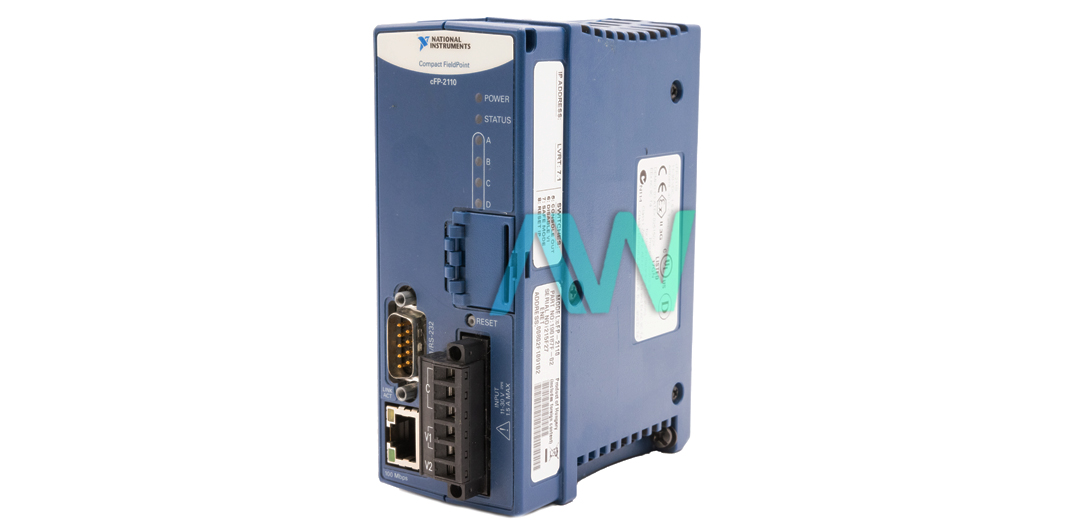

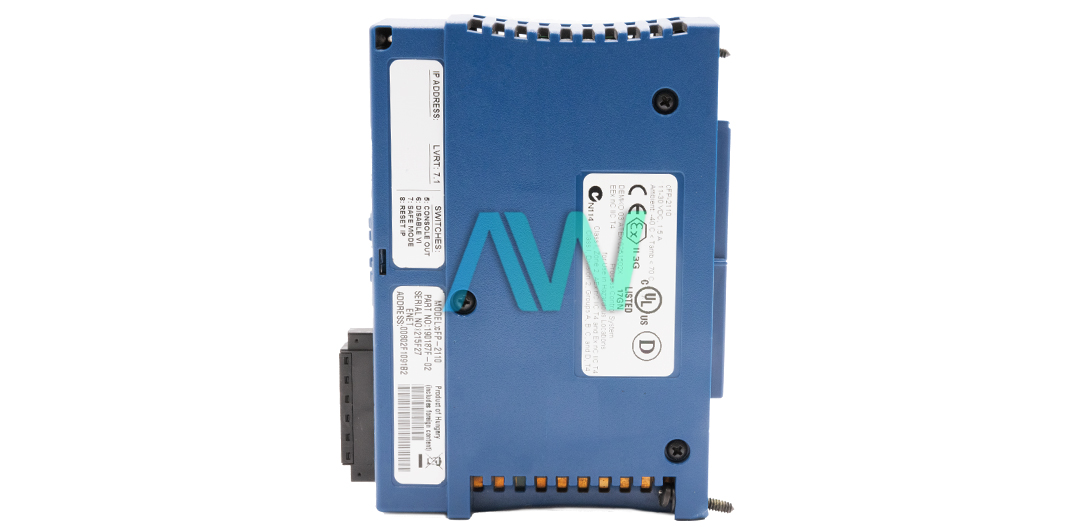

National Instruments cFP-2110 Compact FieldPoint LabVIEW Real-Time/Ethernet Network Controller
The cFP-2110 (part number 777317-2110) is a high-performance Compact FieldPoint Controller from National Instruments. This model can be utilized for embedded and distributed I/O applications. Users can perform real-time measurements, analysis, and simulation. The NI cFP-2110 FieldPoint Controller enables user-defined applications, such as data logging, I/O, PIDs, signal processing, and analysis algorithms.
The NI cFP-2110 FieldPoint Controller offers various interfaces and control features on the front panel, which include Ethernet and RS-232 communication ports, LED indicators, DIP switches, a reset switch, and a power connector. The backplane of the instrument offers a mounting capability for a standard 19-inch rack. There are many controlling techniques available with or without a host PC. The NI cFP-2110 FieldPoint Controller also comes with a network watchdog feature to protect the system against network connection failures, cable issues, or host computer problems. This feature is disabled by default.
The National Instruments cFP-2110 FieldPoint LabVIEW Real-Time/Ethernet Network Controller complies with IEEE 802.3 specifications. The instrument incorporates 10BaseT and 100BaseTX Ethernet and offers the communication rates of 10 and 100 Mbps. These rates are auto-negotiable. This model also includes 64 MB of nonvolatile storage memory and 32 MB of DRAM. The lifetime of the memory is 300,000 times per sector.
| Model | cFP-2110 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777317-2110 |
| Series | cFP20xx |
| Type | Compact FieldPoint LabVIEW Real-Time Controller |
| Ethernet Ports | 1 |
| SDRAM Memory | 32 MB |
| Internal Nonvolatile Storage | 64 MB |
| Warranty | 2-3 Year Warranty |
| cFP-2110 Manual | User Manual and Maintenance Manual Available for Download |
| Host PC | It can run with or without a host |
| Price | Request a quote |
Associated part numbers for cFP-2110:
National Instruments cFP-2110 Frequently Asked Questions
Question: How much storage does the cFP-2110 provide?
Answer: The controller has 64 MB of nonvolatile storage and 32 MG of SDRAM.
Question: What type of interface is used with the NI cFP-2110?
Answer: The controller uses an Ethernet interface for PC-based I/O.
Question: Is the cFP-2110 considered an industrial grade product?
Answer: Yes, the controller is industrial-grade with 50 g shock, 5 g vibration, and -40 °C to 70 °C operating range.
cFP-2110 PDF Manuals
CFP-21XX-AND-CFP-BP-X-USER-MANUAL.PDF
CFP-21XX-QUICK-START-GUIDE.PDF
FIELDPOINT-SAFETY-AND-RADIO-FREQUENCY-INTERFERENCE-READ-ME-FIRST.PDF
USING-FIELDPOINT-AND-COMPACT-FIELDPOINT-SAFELY-IN-HAZARDOUS-LOCATIONS-5BNOTE-TO-USERS5D.PDF
