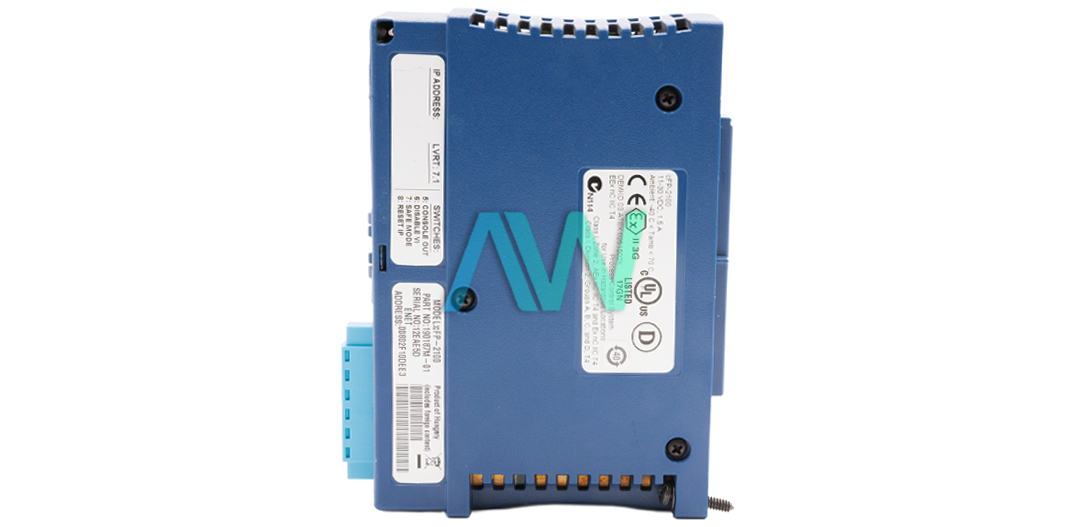

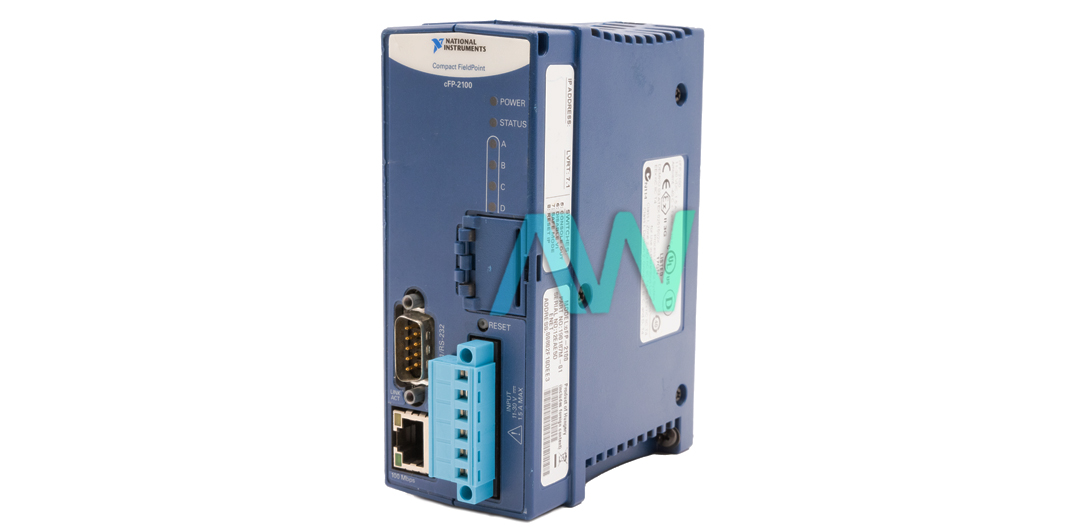

National Instruments CFP-2100 Compact FieldPoint Lab VIEW Real-Time Controller
The CFP-2100 (part number 777317-2100) is a Compact FieldPoint LabVIEW real-time controller from National Instruments. The controller allows users to work with various embedded applications through LabVIEW real-time and perform data logging and processing serial signals.
The National Instruments CFP 2100 FieldPoint is an industrial controller that offers various techniques for automated embedded control or distributed I/O applications. It also allows users to run the applications without a host PC. The instrument is designed to adhere to strict industrial requirements
The National Instruments CFP-2100 FieldPoint Controller incorporates an Ethernet interface, which enables users to connect the CFP-2100 to an Ethernet network. Users can then fulfill various testing requirements using a separate host PC and check status information, change controller settings, and display measurement results.
The instrument also incorporates various LED indicators on the front panel of the NI CFP-2100. The LED indicators exhibit the various operational states of the device. The instrument package also includes FieldPoint software with NI measurement and automation explorer capabilities.
The National Instruments CFP-2100 FieldPoint LabVIEW Real-Time Controller comes with built-in non-volatile memory with the storage capacity of 64 MB. This model also includes an RS-232 serial port to further enhance the communication capabilities of the NI CFP-2100 Compact FieldPoint Controller. The device has a power supply range of 11 to 30 VDC and a power consumption value of 6.1 W + 1.1 (I/O module power requirements).
The CFP-2100 can be programmed using software packages such as the FieldPoint software (4.1.1 or later), LabVIEW, LabVIEW Real-Time Module, LabWindows/CVI, or Measurement Studio. It can be configured using the Measurement & Automation Explorer (MAX) tool.
The NI device weighs 9.8 oz. It has recommended operating and storage temperature ranges of -25 to 60°C and -40 to 85°C, respectively.
| Model | cFP-2100 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777317-2100 |
| Series | cFP20xx |
| Type | Compact FieldPoint LabVIEW Real-Time Controller |
| Ethernet Ports | 1 |
| SDRAM Memory | 32 MB |
| Internal Nonvolatile Storage | 64 MB |
| Warranty | 2-3 Year Warranty |
| cFP-2100 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for cFP-2100:
National Instruments cFP-2100 Frequently Asked Questions
Question: What type of user interface does the cFP-2100 use?
Answer: The controller uses embedded web and file servers with a remote-panel user interface.
Question: How many serial ports does the NI cFP-2100 offer for communication?
Answer: The controller provides up to 4 serial ports; 3 are RS232 and 1 is RS485.
Question: How does the cFP-2100 controller mount?
Answer: The controller mounts on a metal backplane that provides the communication bus, and a solid surface for Compact FieldPoint I/O.
cFP-2100 PDF Manuals
CFP-21XX-AND-CFP-BP-X-USER-MANUAL.PDF
CFP-21XX-QUICK-START-GUIDE.PDF
FIELDPOINT-SAFETY-AND-RADIO-FREQUENCY-INTERFERENCE-READ-ME-FIRST.PDF
USING-FIELDPOINT-AND-COMPACT-FIELDPOINT-SAFELY-IN-HAZARDOUS-LOCATIONS-5BNOTE-TO-USERS5D.PDF
