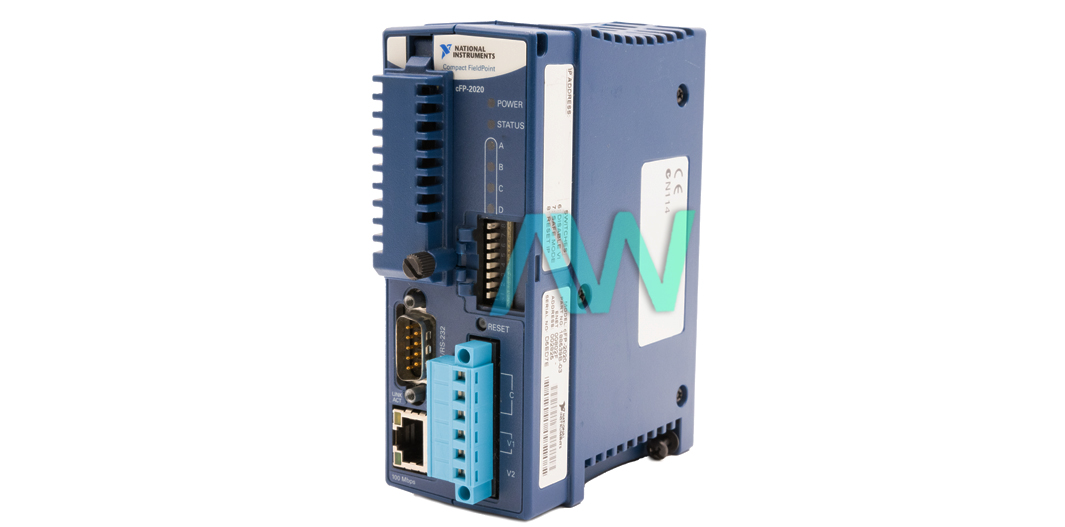

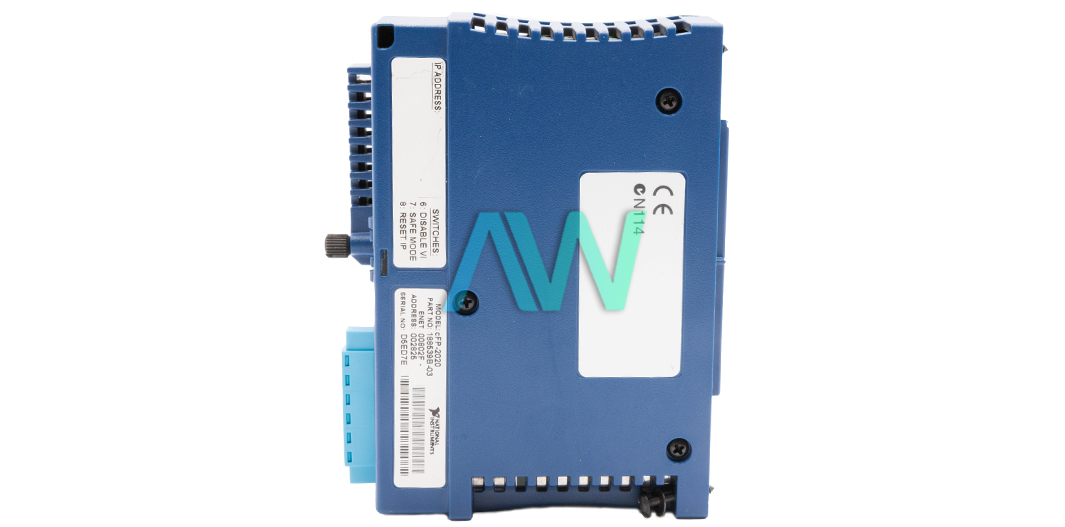

National Instruments cFP-2020 Compact FieldPoint LabVIEW Real-Time/Ethernet Controller
The NI cFP-2020 (part number: 777317-2020) has one Ethernet port, four serial ports, removable CompactFlash storage, and broadened DRAM (32 MB) memory for advanced applications. Additionally, it has an internal nonvolatile storage of up to 64 MB. The four serial ports on this model include three RS-232, DTE ports and one RS-485, DTE port. Specialists and researchers usually utilize the cFP-2020 controllers in applications that require industrial-grade quality, such as stand-alone data logging, analog processing, discrete control frameworks, taking measurements, performing analysis and simulation in real time, recording data, and communicating through serial and Ethernet interfaces.
The device is equipped with 1 Ethernet port with a 10BaseT and 100BaseTX Ethernet network interface. Once sent, the controller can communicate with another cFP-2020, with FieldPoint cFP-2020 shrewd controllers, or with non-keen system interfaces, such as an FP-16xx and FP-1000. Also, the cFP-2020 interface naturally distributes I/O estimations to a Windows-based PC running FieldPoint Explorer, LabVIEW, the LabVIEW Datalogging and Supervisory Control Module (LabVIEW DSC), LabWindows/CVI, Lookout, or the application programming customer for OLE for process control (OPC) of the user’s decision. It is additionally effectively coordinated with existing legacy frameworks or programmable logic controller (PLC) frameworks. It is important to keep in mind the NI cFP-2020 supports LabVIEW Real-Time 8.5.1 and previous versions.
By utilizing LabVIEW Real-Time, users can develop capable data logging, control, and estimation frameworks on their PC and effortlessly incorporate their application into the NI cFP-2020 intelligent controller for reliable deployment, whether distributed or stand-alone. Users can integrate all the intelligence, advanced control, and analysis abilities of LabVIEW into a measured and minimal package proper for industrial environments. Each cFP 2020 on the user’s system requires an 11–30 VDC control supply. NI prescribes the PS-5 power supply for most Compact FieldPoint applications. The PS-5 gives 24 V at 120 W and is intended to be mounted on a DIN rail.
The device has recommended operating and storage temperature ranges of -25 to 60°C and -40 to 85°C, respectively.
| Model | cFP-2020 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777317-2020 |
| Type | Compact FieldPoint LabVIEW Real-Time/Ethernet Controller |
| DRAM Memory | 32 MB |
| Internal Nonvolatile Storage | 64 MB |
| Ethernet Ports | 1 |
| Network Interface | 10BaseT and 100BaseTX Ethernet |
| Weight | 9.8 oz. |
| Warranty | 2-3 Year Warranty |
| cFP-2020 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for cFP-2020:
National Instruments cFP-2020 Frequently Asked Questions
Question: Does the cFP-2020 have a removable CompactFlash?
Answer: Yes, the controller has a removable CompactFlash.
Question: What is the power consumption of the NI cFP-2020?
Answer: The power consumption of the controller is 6.1 W + 1.1 (I/O module power requirements).
Question: What comprises a Compact FieldPoint system?
Answer: The system is comprised of a cFP-20xx controller, a minimum of one connector block or accessory, a cFP-BP-x backplane, and at least one I/O module.
Question: What does it indicate if the status LED on the NI cFP-2020 stays lit and does not flash?
Answer: If the status LED on the controller stays lit and does not flash, it indicates that the model did not power on properly.
cFP-2020 PDF Manuals
CFP-20XX-AND-CFP-BP-X-QUICK-START-GUIDE.PDF
CFP-20XX-AND-CFP-BP-X-USER-MANUAL.PDF
COMPACT-FIELDPOINT-ACCESSORIES-OPERATING-INSTRUCTIONS.PDF
FIELDPOINT-CFP-20XX-QUICK-START-GUIDE.PDF
FIELDPOINT-SAFETY-AND-RADIO-FREQUENCY-INTERFERENCE-READ-ME-FIRST.PDF
USING-FIELDPOINT-AND-COMPACT-FIELDPOINT-SAFELY-IN-HAZARDOUS-LOCATIONS-5BNOTE-TO-USERS5D.PDF
