cRIO-9067 In Stock | Ships Today
cRIO-9067, Dual Core, 667 MHz, Zynq-7020 FPGA Processor, NI Embedded CompactRIO Controller
Rated 4.5/5 | 15 ratings
Actual item may vary if no part number is provided on quote request.
✔ 2 Year Warranty Included
✔ Free Ground Shipping
✔ NIST Calibration Available
Expert Insights for the cRIO-9067
"The cRIO-9067 chassis offers a rugged, fanless design and a Zynq-Z-7020 FPGA. It runs the NI Linux Real-Time OS and offers 8 slots for cRIO C Series modules. This chassis can be the backbone of a fairly demanding test system that needs to go long periods of time without maintenance. With 2 gigabit ethernet ports and USB connectivity, there are a variety of ways to maintain the system (deskside or remotely) and collect data in real time."
- Chris B.
LabVIEW Trained
In-House Technician
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Expert Insights for the cRIO-9067
"The cRIO-9067 chassis offers a rugged, fanless design and a Zynq-Z-7020 FPGA. It runs the NI Linux Real-Time OS and offers 8 slots for cRIO C Series modules. This chassis can be the backbone of a fairly demanding test system that needs to go long periods of time without maintenance. With 2 gigabit ethernet ports and USB connectivity, there are a variety of ways to maintain the system (deskside or remotely) and collect data in real time."
- Chris B.
LabVIEW Trained
In-House Technician

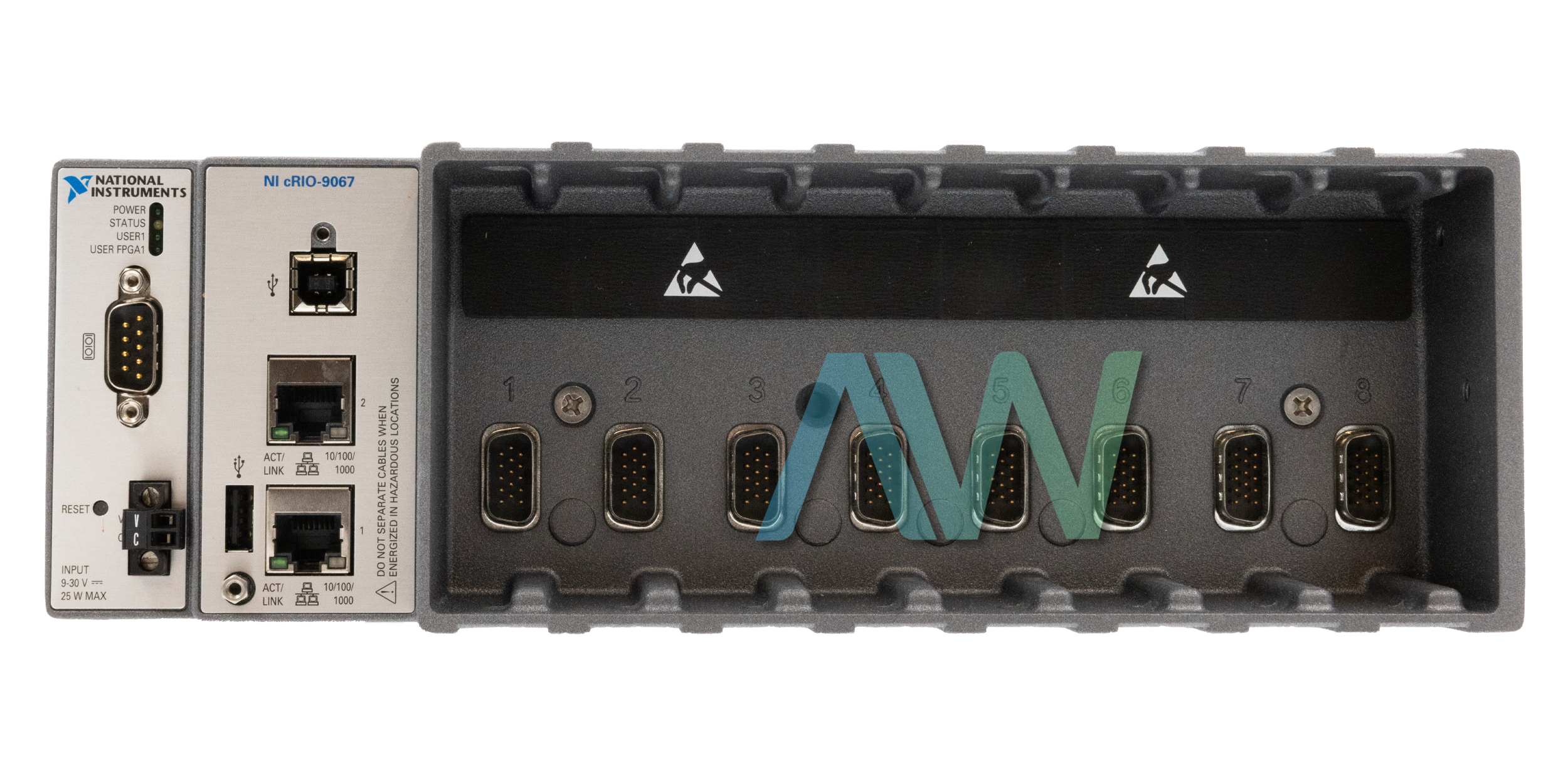

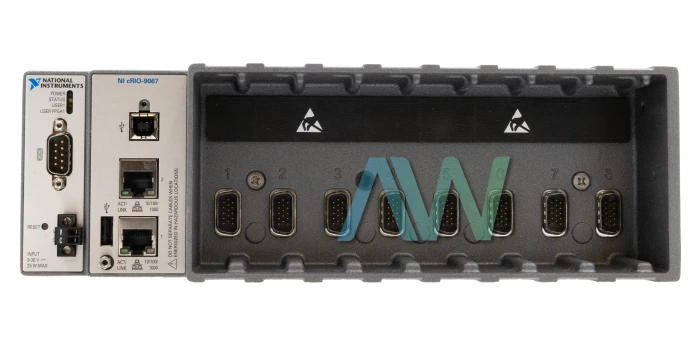

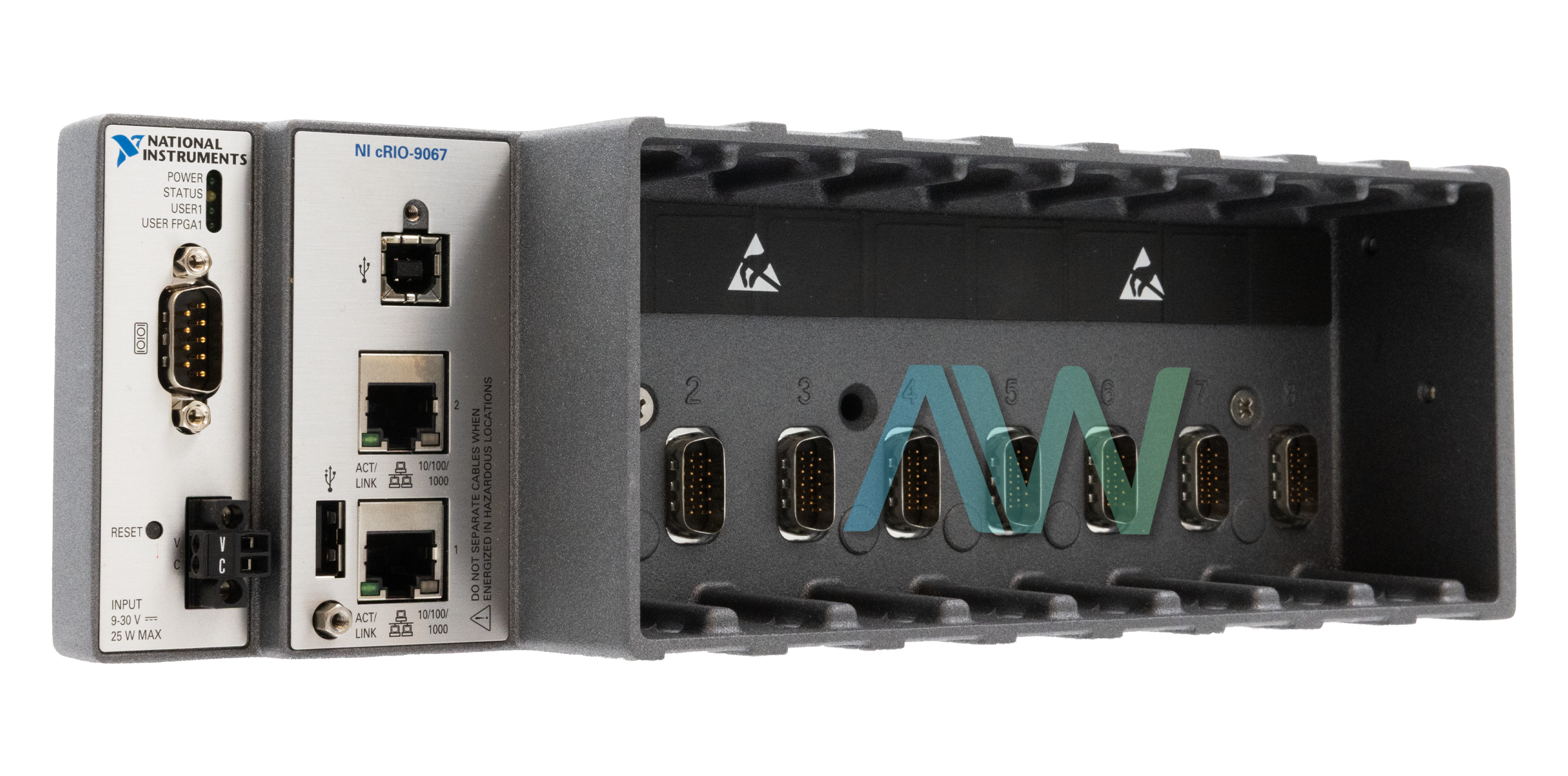

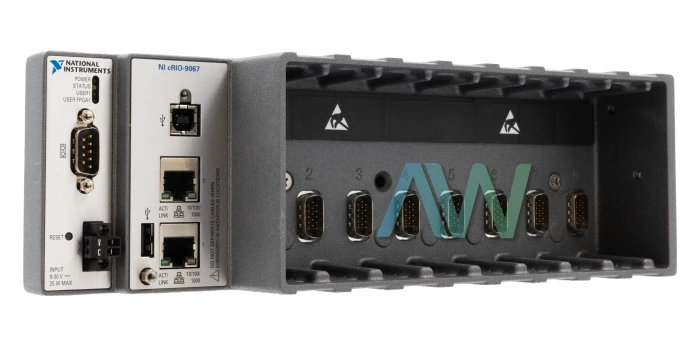

National instruments cRIO-9067 CompactRIO Controller
The National Instruments cRIO-9067 (Part Number: 783170-01, 155824C-01L) is an advanced, hardy, fanless embedded controller built for demanding industrial automation control and monitoring applications. This controller delivers high-performance processing capabilities thanks to its Xilinx Zynq-7000 All Programmable SoC, which features a dual-core ARM Cortex-A9 CPU operating at 667 MHz. It includes 1 GB of NAND flash for nonvolatile storage and 512 MB of DDR3 DRAM for volatile memory, supporting efficient data processing and storage.
The cRIO-9067 is equipped with two tri-speed RJ-45 Gigabit Ethernet ports, which facilitate uninterrupted networking connectivity at 10 Mb/s, 100 Mb/s, and 1,000 Mb/s communication speeds. By default, these ports are enabled, but you may use MAX software to set them up for automatic IP address assignment. It also has a USB host port that can be used to connect keyboards, mice, cameras, and other USB mass-storage devices. The USB device port is primarily used for configuration, application deployment, debugging, and field maintenance tasks such as software installation.
With its RS-232 serial connector, the cRIO-9067 can be connected to external devices, including input and display devices. Utilizing its customizable FPGA, which is likewise built on the Xilinx Zynq-7000 platform, you may customize control algorithms and signal processing jobs with its 85,000 logic cells, 106,400 flip-flops, and 53,200 6-input LUTs. It provides improved processing power for real-time applications with 220 DSP slices and 4,480 kbits of accessible block RAM.
The cRIO-9067 includes an internal real-time clock with 5 ppm accuracy to maintain system time when the device is powered off. With an IP40 ingress protection rating and a pollution degree 2 rating, it is built to resist tough industrial settings and functions throughout a wide temperature range of -20°C to 55°C. It also has reverse-voltage protection up to 30 V DC and can accept a voltage input range of 9 V DC to 30 V DC.
The cRIO-9067 also satisfies IP40 ingress protection standards, making it appropriate for use in challenging industrial settings. It has a pollution degree of 2 and a maximum altitude tolerance of 5,000 m.
| Model | cRIO-9067 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 783170-01, 155824C-01L |
| Type | CompactRIO Controller |
| Slots | 8 |
| CPU Frequency | 667 MHz |
| Storage | 1 GB |
| Dimensions | 10.74 x 3.47 x 2.45 in. |
| Weight | 37.04 oz. |
| Warranty | 2-3 Year Warranty |
| cRIO-9067 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for cRIO-9067:
National Instruments cRIO-9067 Frequently Asked Questions
Question: Does EtherCAT 18.5 support the cRIO-9067?
Answer: Yes, EtherCAT 18.5 does support the controller.
Question: Is it possible to open a remote connection from my host computer using iMAQdx with the NI cRIO-9067 to get images from a Basler USB camera?
Answer: You cannot access the camera images directly. You will have to implement image transfer between the CompactRIO controller and the PC.
Question: Why am I getting error "-2147220623" when running code on the NI cRIO-9067?
Answer: This error typically means that a specific property node is not supported on the object or module you're using. The NI Controller runs NI Linux Real-Time, which may not support certain property nodes designed for other targets like VxWorks or Phar Lap. Ensure that your code and property nodes are compatible with Linux RT.
cRIO-9067 PDF Manuals
ARCHIVED--NI-CRIO-9067-LETTER-OF-VOLATILITY.PDF
CRIO-9067-LETTER-OF-VOLATILITY.PDF
CARRYING-HANDLE-FOR-COMPACTRIO-AND-COMPACTDAQ-USER-GUIDE.PDF
COMPACTRIO-CONTROLLERS-PRODUCT-FLYER.PDF
CRIO-9067-LETTER-OF-VOLATILITY.PDF
INDUSTRIAL-RACK-MOUNT-KIT-FOR-COMPACTRIO-AND-COMPACTDAQ-INSTALLATION-GUIDE.PDF
MODULE-IMMOBILIZATION-ACCESSORY-INSTALLATION-GUIDE.PDF
NI-CRIO-9067-GETTING-STARTED-GUIDE.PDF
