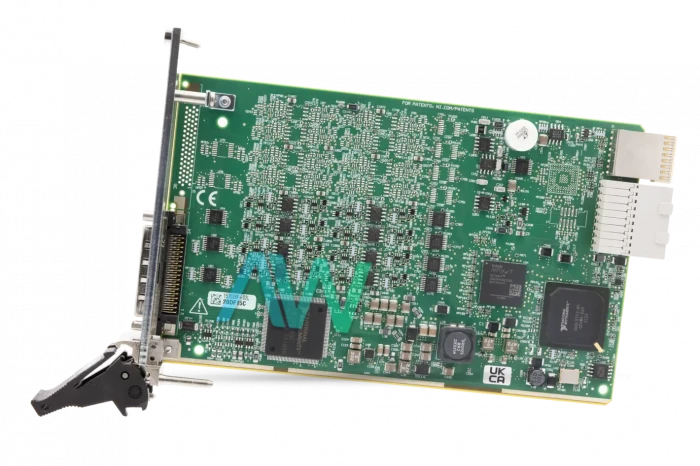

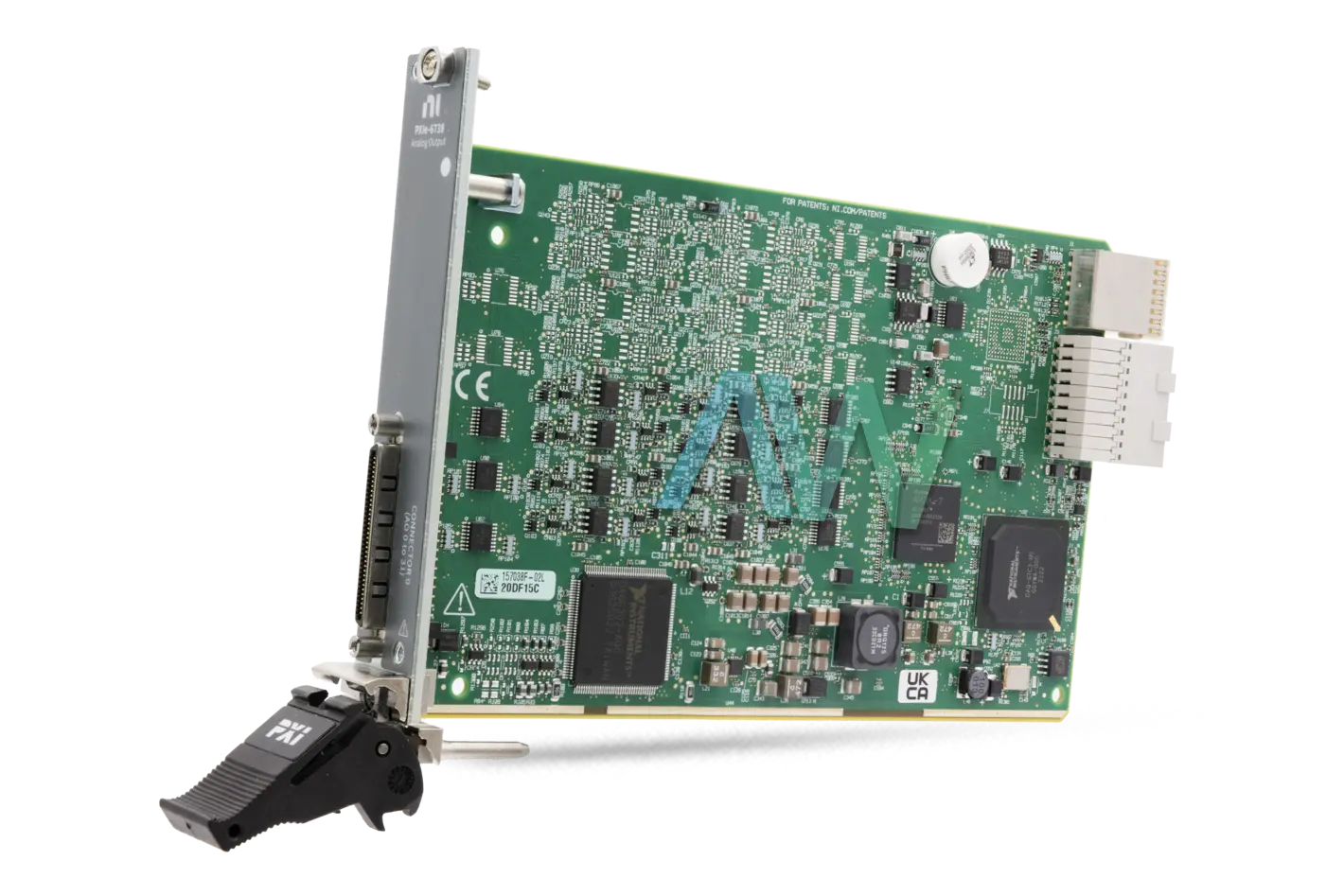

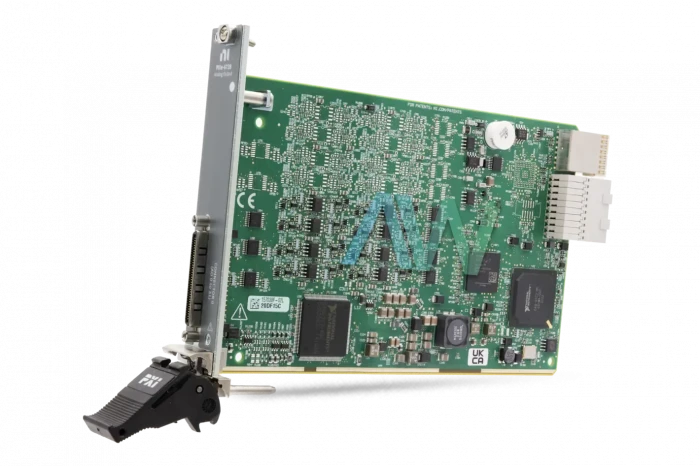

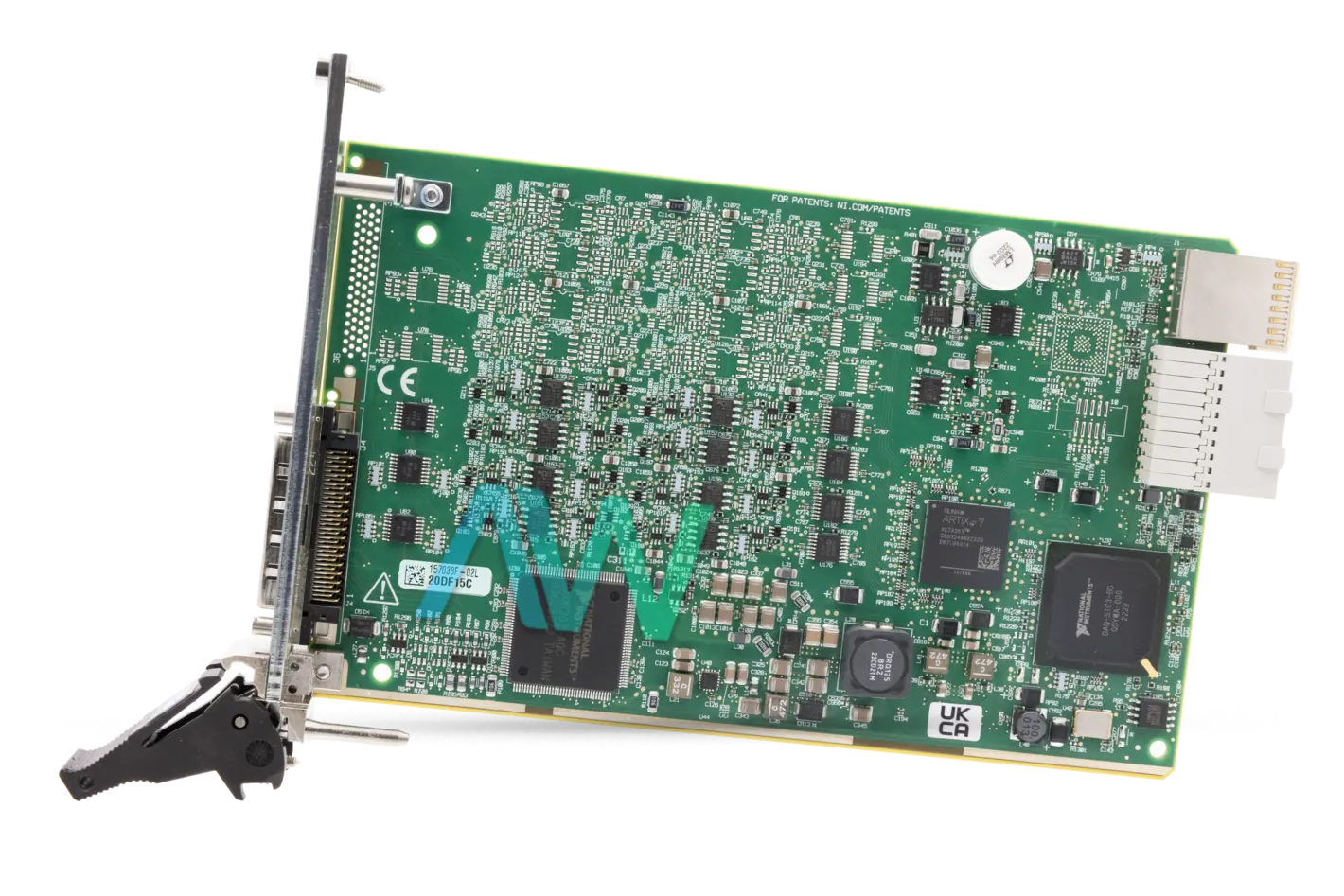

National Instruments PXIe-6738 PXI Analog Output Module
The National Instruments PXIe-6738 (Part Numbers: 783800-01, 157038F-02L, 157038D-02L) is a 16 Bit, 32 Channel, 1 MS/s, high density Analog Output Module. It has an analog output voltage range of -10 V to 10 V. The gadget is perfect for applications, such as jolt reaction tests and open circle recreations at high densities. The user can achieve the most extreme inspecting rate if they are utilizing eight channels, where each direct channel is in a different bank.
The NI PXIe-6738 additionally incorporates 10 digital I/O lines, four counters/clocks, digital triggering, and propelled timing to meet a wide assortment of necessities for users. The PXI Express' digital firing and synchronization capacities enable this Analog Output Module to be supplemented with extra items for data acquisition, development, and vision to make exceedingly modified estimation answers for creative test designs. In Finite Mode, the AO Start Trigger is configurable as retriggerable. The timing motor creates the sample clock for the designed generation considering each pulse on an AO Start Trigger signal.
In the PXIe 6738, the timing motor disregards the AO Start Trigger signal while the clock generator is in advance. After the clock generator is done, the counter waits for another Start Trigger to start another clock generation. When users create analog output signals, the generation pauses when the interruption trigger is declared. If the source of the sample clock is the onboard clock, the generation continues when the delay trigger is deserted. The device is equipped with 1 68-pin VHDCI I/O connector.
The PXIe-6738 is run using the NIDAQmx driver software which is compatible with software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, or Measurement Studio. It has a recommended warm-up time of 15 minutes, and should be calibrated at least once a year.
The NI device weighs 5.8 oz, and measures 6.3 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, a storage temperature range of -40 to 71 °C, and operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz.
| Model | PXIe-6738 |
|---|---|
| Part Number | 783800-01, 157038F-02L, 157038D-02L |
| Manufacturer | National Instruments |
| Type | PXI Analog Output Module |
| Analog Output Channels | 32 |
| Maximum Update Rate | 1 MS/s |
| Analog Output Voltage Range | -10 V to 10 V |
| Analog Output Resolution | 16 Bits |
| Bus Connector | PXI Express |
| Digital I/O Lines | 10 |
| Counter/Timers | 4 |
| Dimensions | 6.3 x 3.9 in. |
| Weight | 5.8 oz. |
| Warranty | Three Year Warranty |
| PXIe-6738 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-6738:
National Instruments PXIe-6738 Frequently Asked Questions
Question: How many I/O connectors does the PXIe-6738 module have?
Answer: The Analog Output Module has one 68-pin VHDCI I/O connector.
Question: What is the overdrive current for the PXIe-6738?
Answer: The Module has an overdrive current of 15 mA.
Question: Which types of counter measurements can the counters/timers on the NI PXIe-6738 perform?
Answer: The counters/timers on the can perform two-edge separation, edge counting, period, pulse, semi-period, and pulse width counter measurements.
Question: How long is the calibration interval for the PXIe-6738?
Answer: The calibration interval of the device is 2 years.
