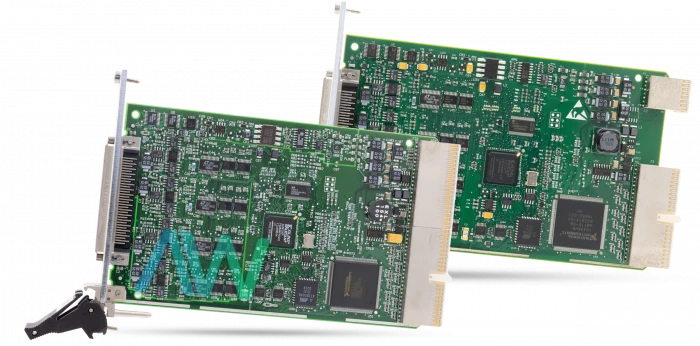

PXI-6733 NI Analog Output Module | In Stock Ships Today | Image

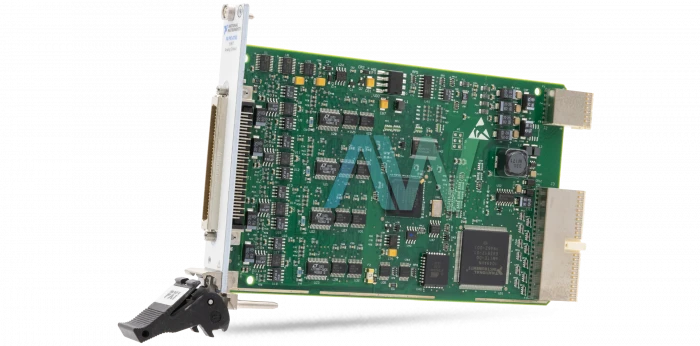

PXI-6733 NI Analog Output Module | In Stock Ships Today | Image
PXI-6733 New
PXI-6733 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PXI-6733 NI Analog Output Module | In Stock Ships Today | Image
PXI-6733 NI Analog Output Module | In Stock Ships Today | Image
PXI-6733 New
PXI-6733 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-6733 PXI Analog Output Module

The PXI-6733 (Part Number: 778512-01, 187995F-01L) from National Instruments has 8 analog output channels with 1 MS/s per channel maximum update rate, 16-bit resolution, an output voltage range of -10 V to 10 V, and advanced triggering. The device has a FIFO buffer size of 16,384 samples, and 3 DMA channels. It has 8 digital I/O channels with a TTL/CMOS compatibility, has 2 counter/timer I/O channels with a resolution of 24 bits, and with base clocks of 20 MHz and 100 MHz. This module utilizes the PXI trigger bus to synchronize with extra data acquisition, motion, and vision items, so the user can make custom estimation solutions for test innovative plans. The PXI-6733 is perfect for stimulus-reaction tests, including acoustic distortion testing and open-loop recreation, such as three-phase power reenactment.

The National Instruments PXI-6733 does not contain DIP switches, jumpers, or potentiometers, so the user can smoothly arrange software and calibrate it. This is conceivable through the NI MXI Interface to Everything (MITE) bus interface chip that links the module to the PCI I/O bus. The MITE actualizes the PCI Local Bus Specification with the goal that the interrupts and base memory addresses are software configured.

The user can introduce the NI PXI-6733 in any accessible PCI framework opening or 5 V PXI extension space in the PC. The user can additionally introduce the DAQ Card-6715 in any accessible CardBus-compatible Type II PCMCIA 5 V PC Card space in the PC. To accomplish the best motion execution, the user can leave as much space as possible between the NI PXI-6733 and different gadgets and equipment.

The NI PXI-6733 Analog Output Module is completely compliant with the business standard, PXI Specification Revision 2.0. This permits the PXI/CompactPCI framework to naturally play out all bus related setups, such as setting the gadget base memory address and interrupt channel, without client interaction.

The device operates using the NI-DAQmx driver software which is compatible with software packages/application development environments like LabVIEW, LabWindows/CVI, or Measurement Studio.

The status of the PXI-6733 has been declared as Mature by National Instruments, but the PXI Analog Output Module will still be available for purchase and repairs in perpetuity with Apex Waves.

ModelPXI-6733
ManufacturerNational Instruments
Part Numbers778512-01, 187995F-01L
TypePXI Analog Output Module
Analog Output Channels8 Voltage Output Channels
Digital I/O8 I/O Channels
Timing I/O CompatibilityTTL/CMOS
Maximum Update Rate1 MS/s
Bus InterfacePXI/CompactPCI Master, Slave
FIFO Buffer Size16,384 Samples
Dimensions6.3 × 3.9 in. (16 × 10 cm)
I/O Connector68-Pin Male SCSI-II Connector Type
Analog Output Voltage Range-10 V to 10 V
Analog Output Resolution16 Bits
WarrantyThree Year Warranty
PXI-6733 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXI-6733:

National Instruments PXI-6733 Frequently Asked Questions



Question: Would the PXI-6733 be appropriate for stimulus-response tests?

Answer: Yes, the device is designed for stimulus-response test and simulation.



Question: What is the FIFO buffer size of the NI PXI-6733?

Answer: The FIFO buffer size is 16,384 samples.



Question: What are the update rates of the analog output channels on the device?

Answer: The analog output channels on the NI PXI-6733 have simultaneous update rates of up to 1 MS/s/ch.
