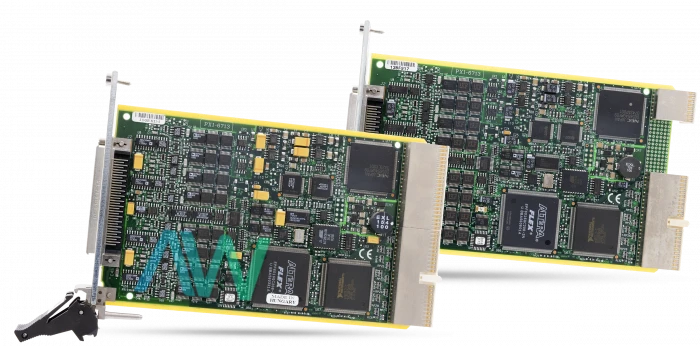

PXI-6713 National Instruments Analog Output Module | Apex Waves | Image

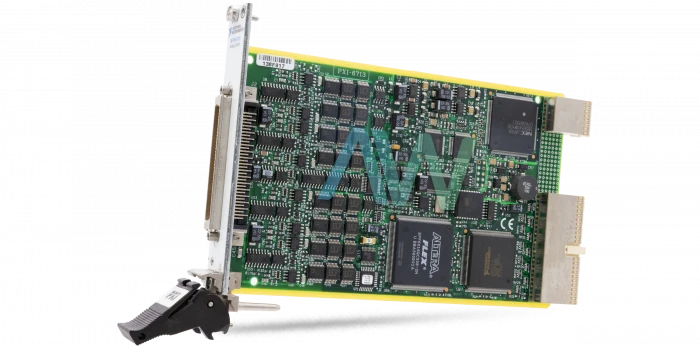

PXI-6713 National Instruments Analog Output Module | Apex Waves | Image
PXI-6713 New
PXI-6713 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

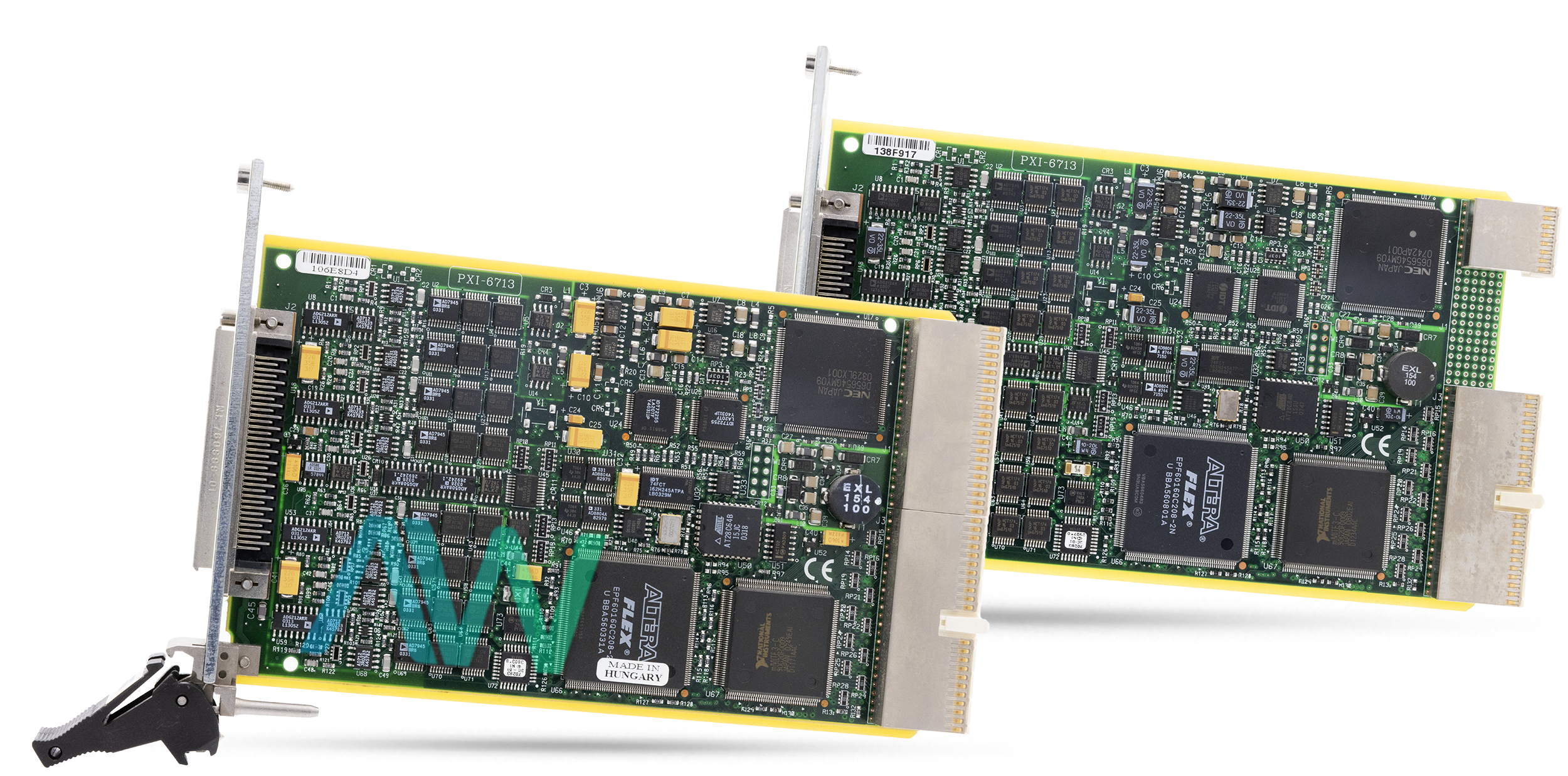

PXI-6713 National Instruments Analog Output Module | Apex Waves | Image

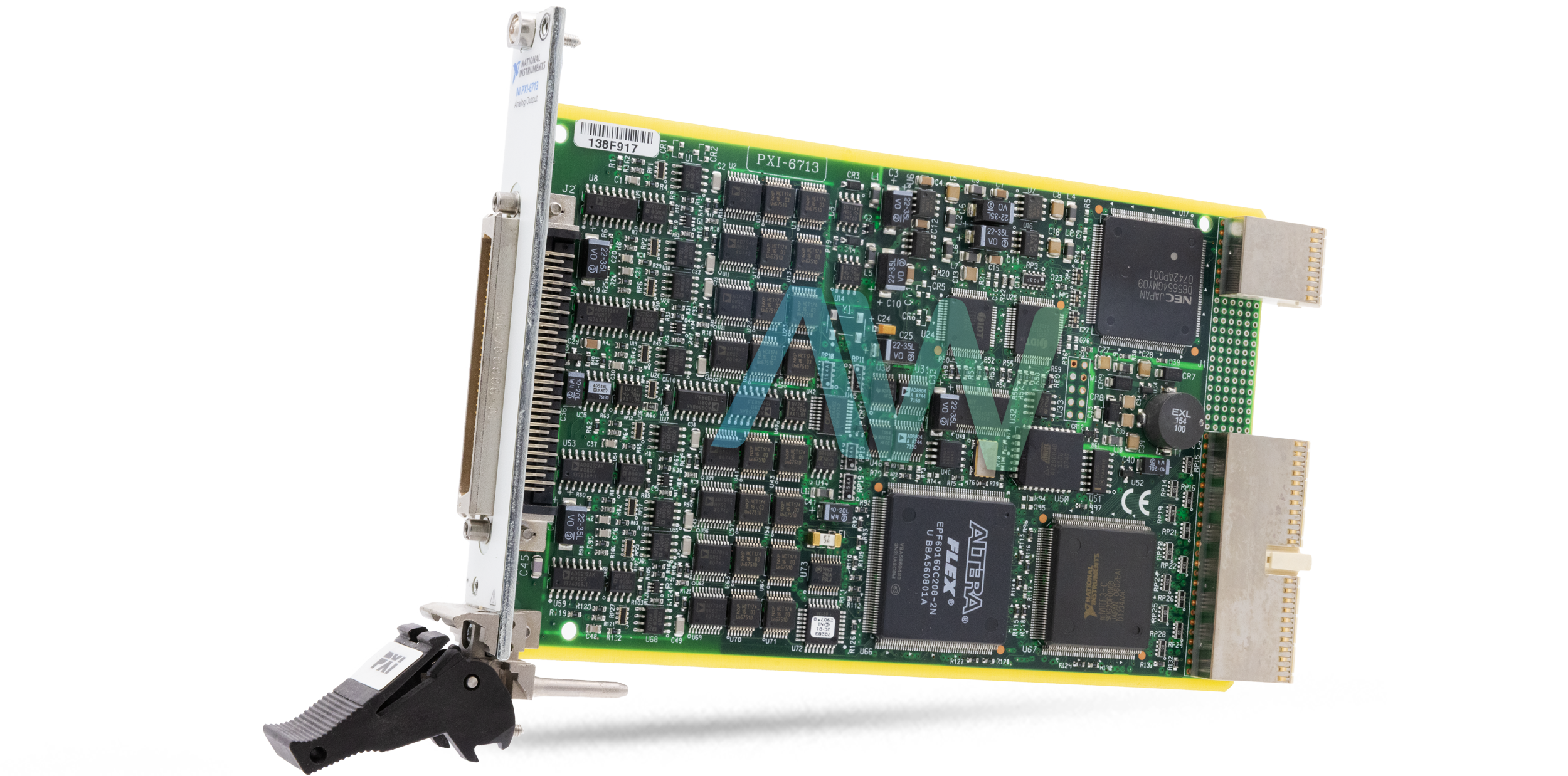

PXI-6713 National Instruments Analog Output Module | Apex Waves | Image
PXI-6713 New
PXI-6713 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-6713 PXI Analog Output Module

The National Instruments PXI-6713 (Part Number: 777795-01, 185860-01, 185860J-01) Analog Output Module can utilize its inside 20 MHz time-base or a time-base received over the RTSI bus. Furthermore, if the user wants to design the gadget to utilize the inside time-base, they can program the gadget to drive its interior time-base over the RTSI bus to another gadget that is modified to get this time-base signal. This clock source, regardless of whether nearby or from the RTSI bus, is utilized straightforwardly by the gadget as the essential recurrence source. The default design at startup is to utilize the inner time-base without driving the RTSI bus time-base signal (this time-base is software selectable). Part number 185860-01 is for the board only version of the PXI-5713.

The device has 8 analog output channels with a resolution of 12 bits and a maximum update rate of 1 MS/s. It has an analog output voltage range of -10 V to 10 V. The analog output signals on the PXI-6713 are DAC0OUT, AOGND, and EXTREF. DAC0OUT is the voltage output signal for analog output channel 0 and EXTREF is the outside reference input for all analog output channels. The user can utilize this input to diminish the voltage swing on the DAC outputs while protecting the dynamic range.

Two sticks on the I/O connector supply +5 V from the PC control supply by means of a self-resetting wire. The wire will reset naturally a couple of moments after the overcurrent condition is evacuated. These pins are referenced to as DGND and can be utilized to control outside computerized hardware. All external control over the timing of the PXI-6713 Analog Output Module is directed through the 10 programmable capacity inputs named PFI0 through PFI9. These PFIs are bidirectional. As outputs they are not programmable and mirror the condition of numerous DAQ, waveform generation, and general purpose timing signals. The NI device measures 6.3 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 to 50 °C, and a storage temperature range of –20 to 70 °C.

Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PXI-6713 has been announced as Obsolete and is no longer available from National Instruments, the PXI Analog Output Module will remain available with Apex Waves. Request your quote today!

ModelPXI-6713
ManufacturerNational Instruments
Part Numbers777795-01, 185860-01, 185860J-01
TypePXI Analog Output Module
Analog Output Channels8 Voltage Outputs
Maximum Update Rate1 MS/s
Analog Output Resolution12 Bits
Analog Output Voltage Range-10 V to 10 V
Bus InterfacePXI/CompactPCI Master, Slave
PXI Trigger Lines 6
I/O Connector68-Pin Male SCSI-II Type
Power at I/O Connector+4.65 to +5.25 VDC at 1 A
Digital I/O Channels8 Input / Output
DMA Channels 3
Operating Temperature0 °C to 50 °C
Storage Temperature–20 °C to 70 °C
Dimensions6.3 × 3.9 in. (16 × 10 cm)
WarrantyThree Year Warranty
PXI-6713 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote for Pricing

Associated part numbers for PXI-6713:

National Instruments PXI-6713 Frequently Asked Questions



Question: What is the FIFO buffer size of the PXI-6713?

Answer: The FIFO buffer size is 16,384 samples.



Question: How many digital I/O channels are on the NI PXI-6713?

Answer: There are 8 digital I/O channels on the PXI Analog Input Module.



Question: How many counters does the module have?

Answer: The NI PXI-6713 has two 24-bit counter/timers.



Question: Where can I find additional information for the PXI-6713?

Answer: Official documentation and manuals from NI can be found free to download under the "Manuals & PDFs" tab!
