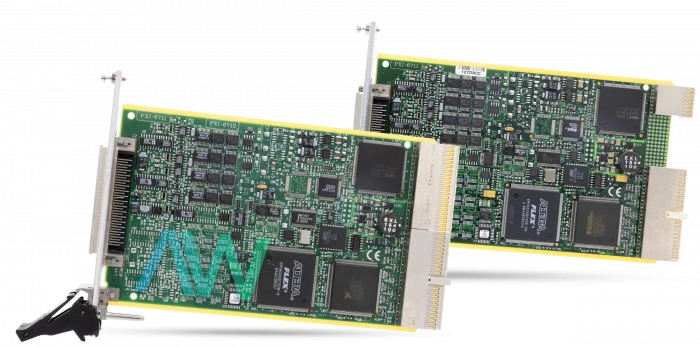

PXI-6711 National Instruments Analog Output Module | Apex Waves | Image
PXI-6711 National Instruments Analog Output Module | Apex Waves | Image
PXI-6711 New
PXI-6711 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

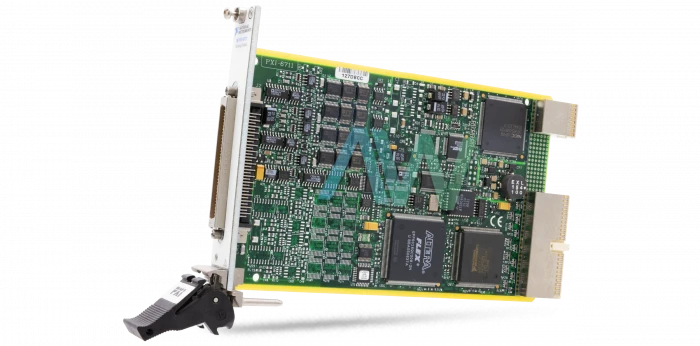

PXI-6711 National Instruments Analog Output Module | Apex Waves | Image
PXI-6711 National Instruments Analog Output Module | Apex Waves | Image
PXI-6711 New
PXI-6711 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

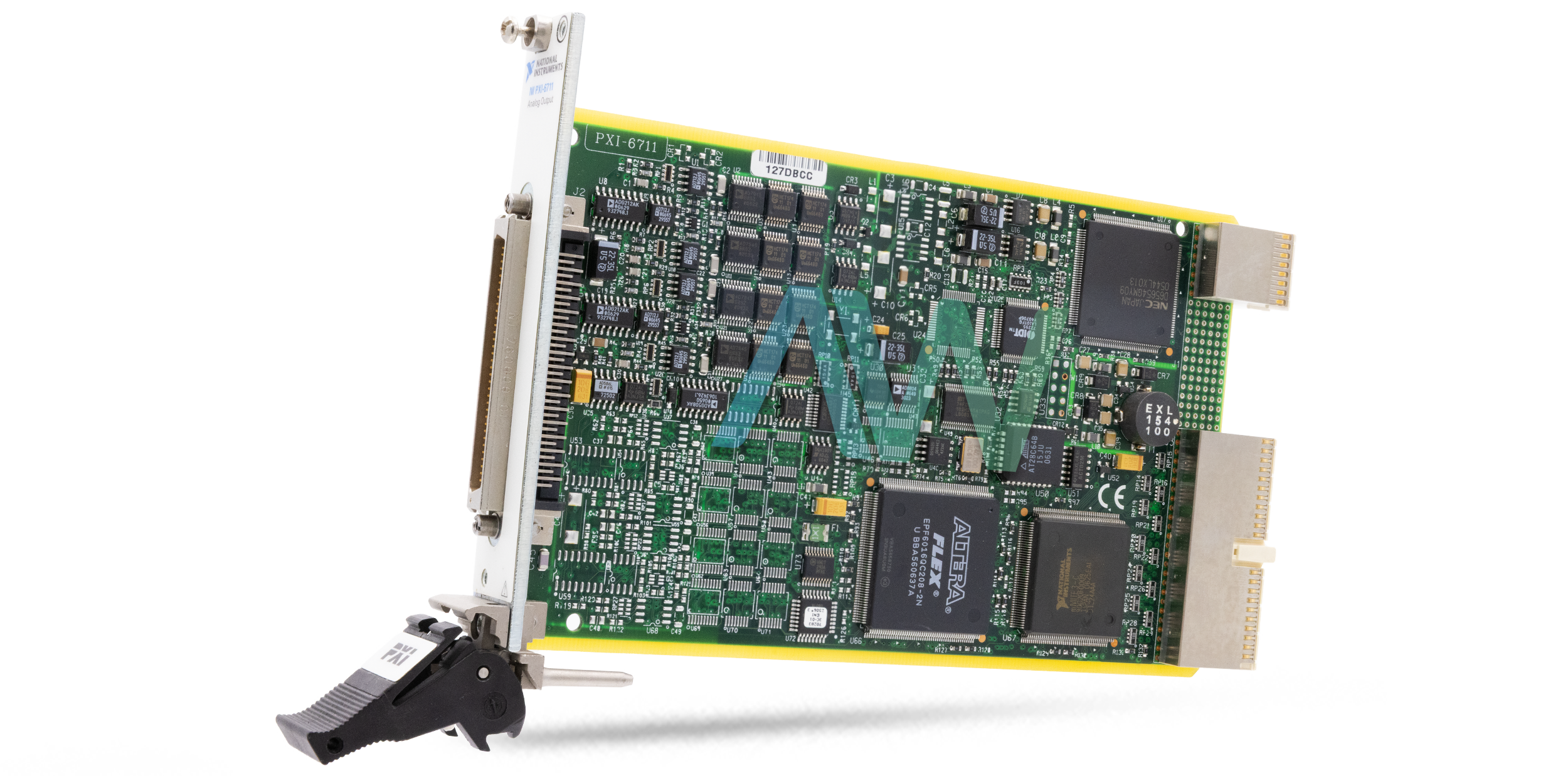

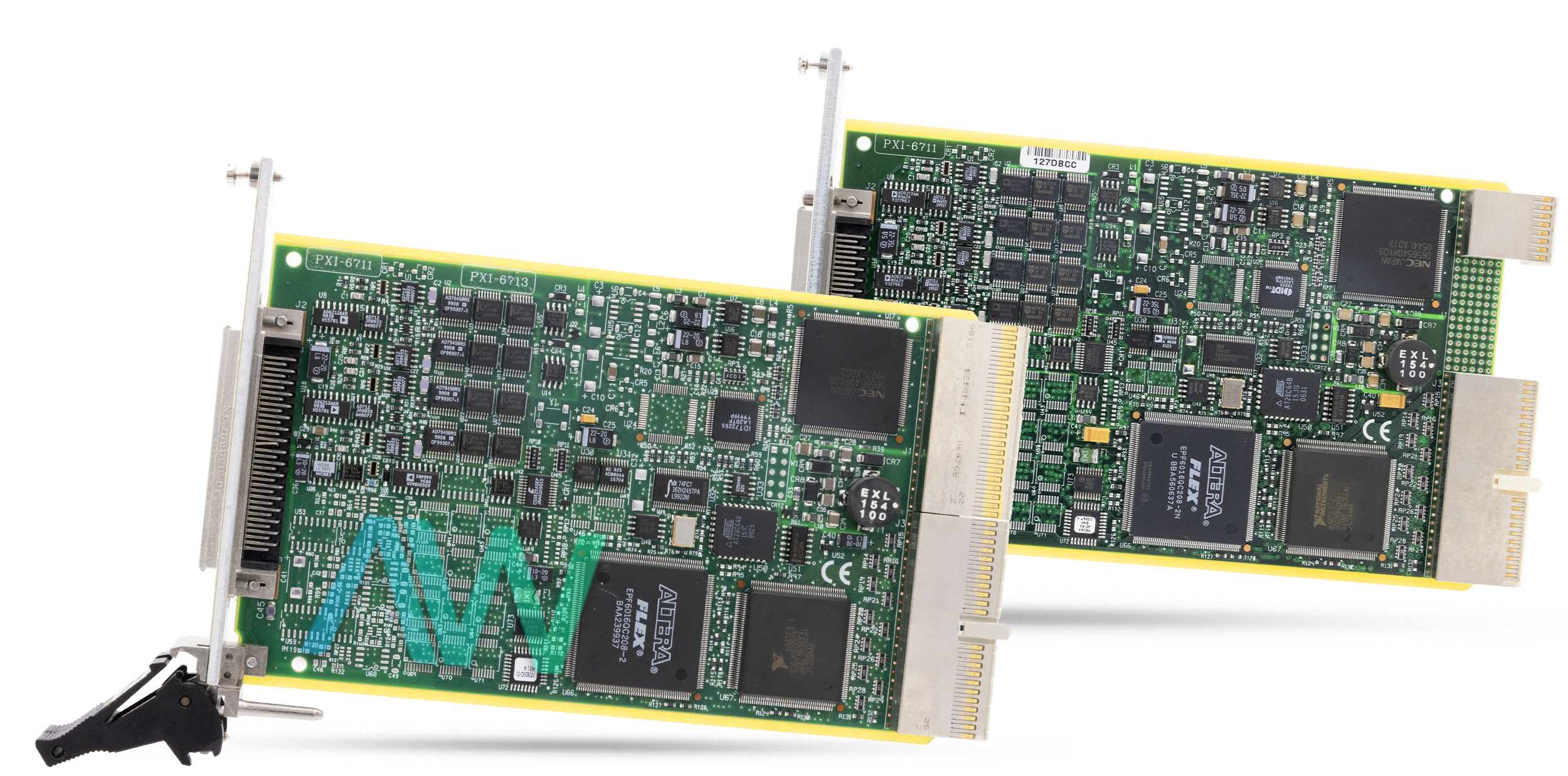

National Instruments PXI-6711 PXI Analog Output Module

The PXI-6711 (Part Number: 777794-01) can supplant a few types of instruments, including stand-alone proportional integral derivative (PID) controllers, low-speed subjective waveform generators, and capacity generators. The user can control every datum point for each channel to characterize normal waveforms, such as square, sine, or saw-tooth, and complex waveforms, including stimulus-response, power supply control, high-speed, deterministic control, and sensor/signal recreation. Also, the gadget gives eight 5 V TTL/CMOS computerized I/O lines, two 24 bit, 20 MHz counter/timers, and digital triggering and outer timing abilities.

With this module, the user can associate every D/A converter (DAC) to the inward reference of 10 V or to the outer reference signal associated with the outside reference (EXTREF) stick on the I/O connector. This signal connected to EXTREF ought to be inside ±11 V. The user can configure each channel to utilize either inside or outside reference (the default reference esteem determination is inner reference). The PXI-6711 Analog Output Module contains eight lines of advanced I/O for universal use. The user can independently configure each line for either input or output. At framework startup and reset, the computerized I/O ports are altogether high impedance.

The DAQ-STC gives an exceptionally adaptable interface to associating timing signals to different gadgets or outer hardware. The PXI-6711 module utilizes the RTSI bus to interconnect timing signals amongst gadgets, while the Programmable Function Input (PFI) sticks on the I/O connector to interface the gadget to outer hardware. These associations are intended to empower the PXI-6711 to both control and be controlled by different gadgets and circuits.

Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PXI-6711 entered the NI Maintenance phase on March 31, 2022, it will remain available with Apex Waves. Request your quote today!

ModelPXI-6711 (777794-01)
ManufacturerNational Instruments
TypePXI Analog Output Module
Analog Output Channels4
Maximum Update Rate1 MS/s
Analog Output Resolution12 bits
Analog Output Voltage Range-10 V to 10 V
Warranty2-3 Year Warranty
PXI-6711 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXI-6711:

National Instruments PXI-6711 Frequently Asked Questions



Question: How are the data points set for the PXI-6711?



Answer: On the PXI-6711, you control each data point for each channel to define what you need.



Question: How many digital I/O lines are on the NI PXI-6711?



Answer: The NI PXI-6711 has eight 5 V TTL/CMOS digital I/O lines.



Question: Does the PXI-6711 have external clocking capabilities?



Answer: Yes, the PXI-6711 has digital triggering and external clocking capabilities.
