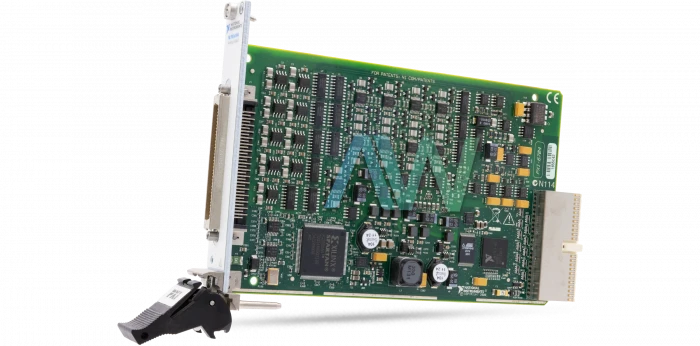

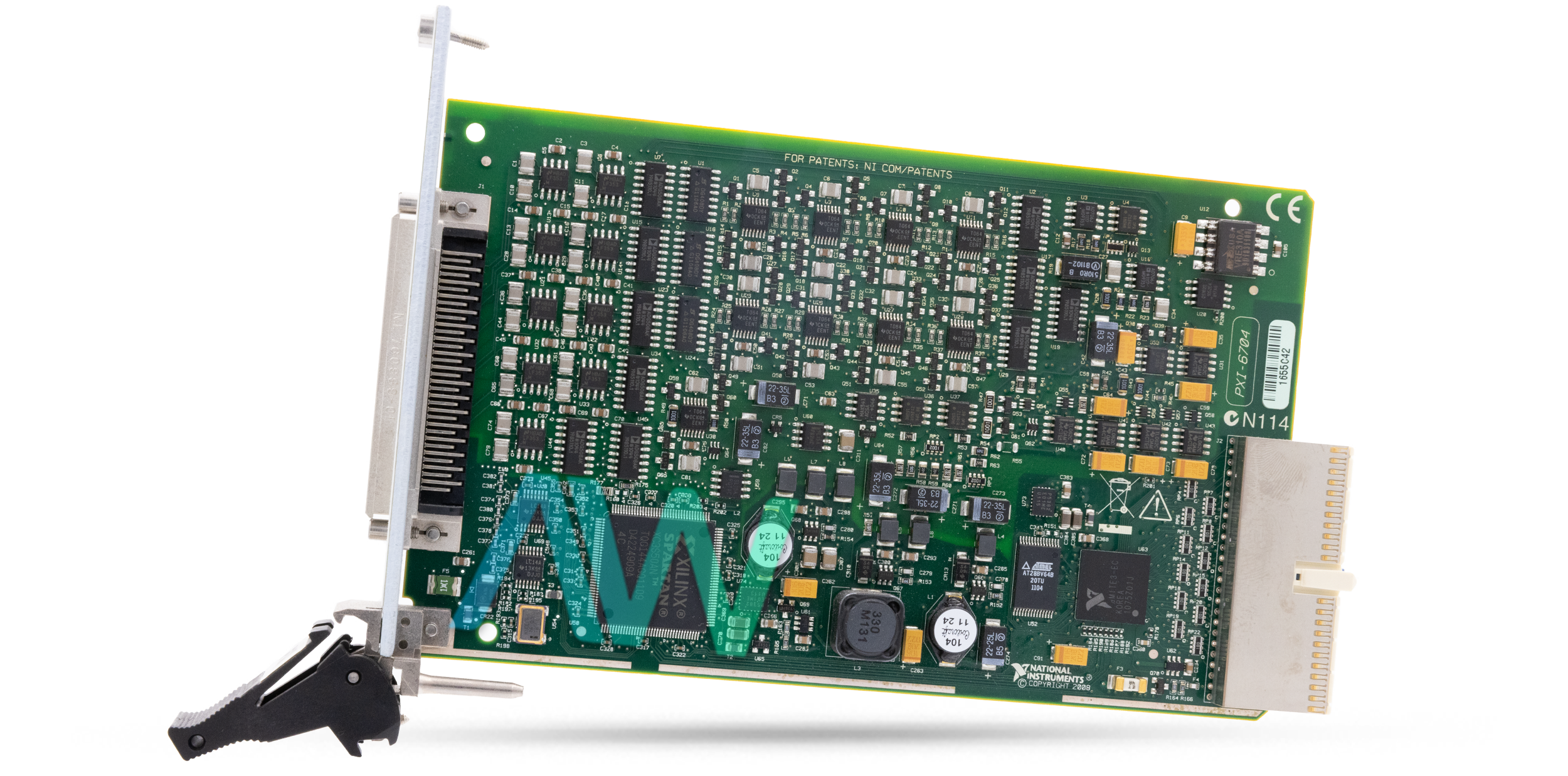

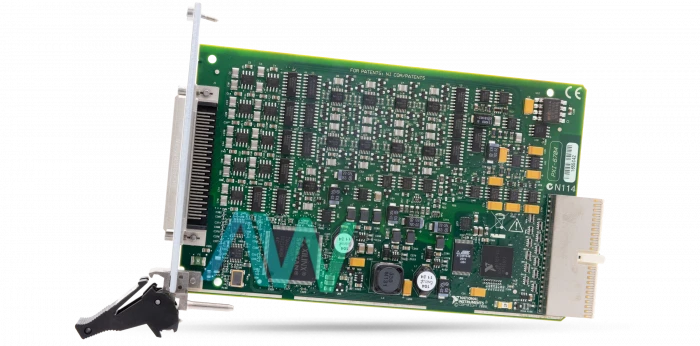

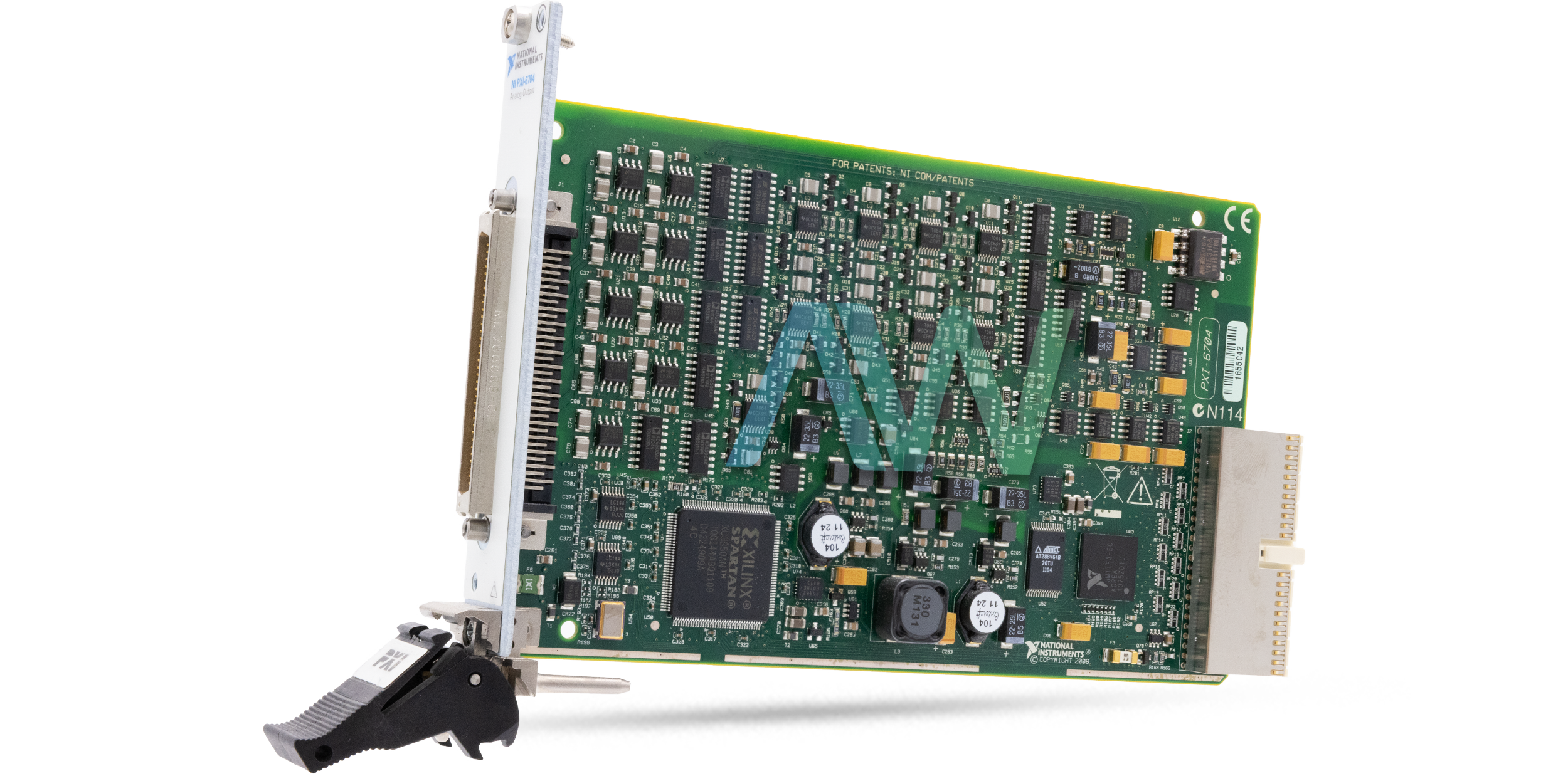

National Instruments PXI-6704 PXI Analog Output Module
The National Instruments NI PXI-6704 (Part Number: 777796-01) is an Analog Output Module which can be used to create software timed voltage and current output applications.The NI PXI-6704 has one 16-bit DAC that is time-division multiplexed to make all the output channels. Each channel has a track-and-hold circuit to keep up the channel value between DAC updates. On this model, the DAC is multiplexed to create 16 voltage outputs, 16 current outputs, and 4 calibration channels.
The PXI-6704 also incorporates eight digital 5 V TTL I/O lines. It has an analog output voltage range of -10.1 V to 10.1 V. The onboard temperature sensor measures the air temperature flowing over the board. This sensor is situated close to the onboard precision voltage reference, which can be influenced by extraordinary temperatures. This sensor has a serial computerized interface.
The NI PXI-6704 performs persistent self-calibration. Additionally, to the accessible analog output channels, there are inside calibration channels that get scanned and refreshed alongside all the output channels. There are two of these calibration channels for the output voltage: the voltage offset channel and the voltage gain channel.
There are additionally two calibration channels for the current output on the PXI-6704: the current offset channel and the current gain channel. The outputs of these calibration channels are individually contrasted to onboard references and the 16-bit DAC offset and gain are adjusted to minimize the mistakes in the adjustment channels. Since the NI PXI-6704 has excellent channel-to-channel matching of offset and gain errors, limiting the errors in the alignment channels likewise minimizes the mistakes for all the voltage and current outputs. It is equipped with a 68-pin male I/O connector.
The NI device measures 3.9 in. x 6.3 in physical dimensions when not including the connectors. Designed for indoor use only, the PXI-6704 has an operating temperature range of 0 to 55 °C. When not being used, the storage temperature range for the device measures –20 to 70 °C.
| Model | PXI-6704 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777796-01 |
| Type | PXI Analog Output Module |
| Analog Output Channels | 32 |
| Maximum Update Rate | Static |
| Analog Output Voltage Range | -10.1 V to 10.1 V |
| I/O Connector | 68-Pin Male |
| Digital I/O Channels | 8 |
| Digital I/O Compatibility | TTL |
| Dimensions | 6.3 x 3.9 in. |
| Operating Temp Range | 0 to 55 °C |
| Storage Temp Range | –20 to 70 °C |
| Dimensions | 6.3 x 3.9 in. |
| Warranty | Three Year Warranty |
| PXI-6704 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for Pricing! |
Associated part numbers for PXI-6704:
National Instruments PXI-6704 Frequently Asked Questions
Question: What is the analog output resolution of the NI PXI-6704?
Answer: The analog output features 16 bits of resolution.
Question: What is the output current range of the NI PXI-6704?
Answer: The Analog Output Module has an output current range of 0.1 mA to 20.2 mA.
Question: Which operating systems can the PXI-6704 be used with?
Answer: The module can be used with these operating systems: Linux, Mac OS X, Windows 2000/NT/XP, Real-Time performance with LabVIEW, and more.
Question: What is the power-up state of the module?
Answer: The PXI-6704 has independent, user-defined values for the power-up state.
