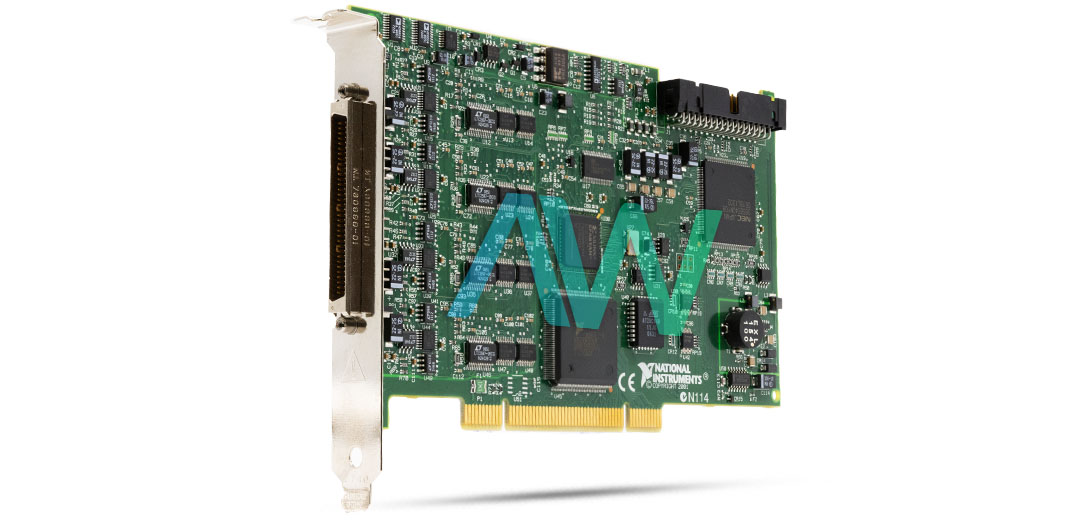

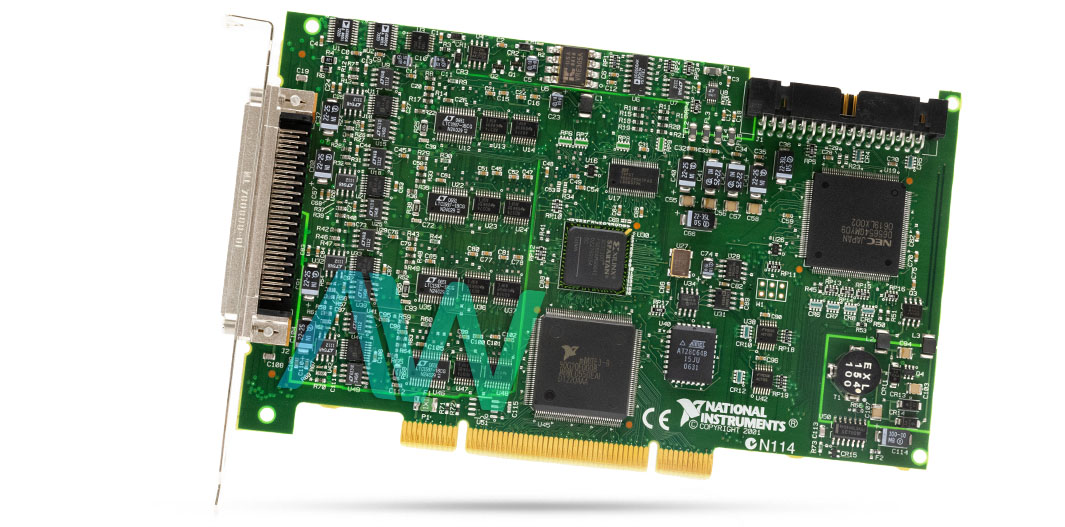

National Instruments PCI-6733 Analog Output Device

The National Instruments PCI-6733 (Part Numbers: 778510-01, 187992E-01) is a 1 MS/s, 8-Channel, 16-Bit Analog Output Device. Apart from various standard functions, this model comes with sound waveform generation and acquisition capabilities. With the NI PCI-6733, the user can create common, as well as complex waveforms, while keeping each data point controlled for each channel. This model allows the user to connect each DAC to either a device internal reference or to an external reference signal through AO EXT REF, (external reference pin) contained by its I/O connector. However, the user cannot apply any signal beyond the permitted range of ±11 Volts of AO GND. The net reduction in the output voltage range possible through AO EXT REF can bring a higher resolution at the modified range. The device is equipped with a 68-pin male SCSI-II I/O connector. It has 8 digital I/O lines with a 5 V TTL/CMOS compatibility, with an input and output buffer of 2,000 bytes each, and 2 counter/timer I/O lines with a frequency of 20 MHz and a resolution of 24 bits. Additionally, it has a power requirement of 1.25 A typical and 1.8 A maximum at +5 VDC, 125 mA typical and 250 mA maximum at +3.3 VDC.

The PCI 6733 National Instruments Analog Output Device comes with eight lines of bidirectional digital input/output signals with individually controllable function and direction control, fast waveform generation, and acquisition features. The DIO terminals on the PCI-6733 NI can be accessed through the standard I/O connector incorporated in this device; the DIO terminals are named as P0. <0...7>. With the NI PCI 6733 Analog Output Device, the user can utilize each DIO line as either a static digital input or digital output line. Static digital I/O lines are a countable solution for the monitoring or controlling of digital signals. However, the entire sampling of static digital input lines and updates of static digital output lines is controlled through software.

The NI device measures 6.87 x 4.2 in. in physical dimensions. It has a recommended operating temperature range of 0 to 50 °C, and a storage temperature range of –20 to 70 °C.

Apex Waves stocks, buys, and repairs EOL hardware in perpetuity! While the PCI-6733 is no longer available directly from National Instruments, the Analog Output Device will remain available with Apex Waves for purchase and repairs.

ModelPCI-6733
ManufacturerNational Instruments
Part Numbers778510-01, 187992E-01
TypeAnalog Output Device
Analog Output Channels8 (16-Bit, 1 MS/s)
Digital Inputs/Outputs8 (5 V TTL/CMOS Compatibility)
Timing I/O2 Counter/Timer I/O (24 Bits, 20 MHz)
I/O Connector68-Pin Male SCSI-II
Power Requirements+5 VDC, +3.3 VDC -- 1.25 A, 125 mA
Dimensions6.87 in × 4.2 in.
Software DriverNI-DAQmx
Measurement & Automation Explorer Configuration Utility
WarrantyThree Year Warranty
PCI-6733 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today for More Information

Associated part numbers for PCI-6733:

National Instruments PCI-6733 Frequently Asked Questions



Question: Why don’t I see the NI PCI-6733 in MAX?

Answer: If you don’t see the Analog Output Device in MAX, first make sure that you have the correct version of DAQmx or other related drives installed. Temporarily turn off the firewall and check the connections at the PCI-6733 and the computer.



Question: What should I do if I get “Error 200020 - occurred at self-test" when I install the PCI-6733?

Answer: If you see “Error 200020 – occurred at self-test” when you install the device, it means that the board needs to be repaired.



Question: Does the NI PCI-6733 provide three-phase power simulation?

Answer: Yes, the device is designed to deliver simultaneous, multichannel updates, including simulation such as three-phase power simulation.



Question: What is the FIFO buffer size of the Analog Output Device?

Answer: The PCI-6733 has a FIFO buffer size of 16,384 samples.
