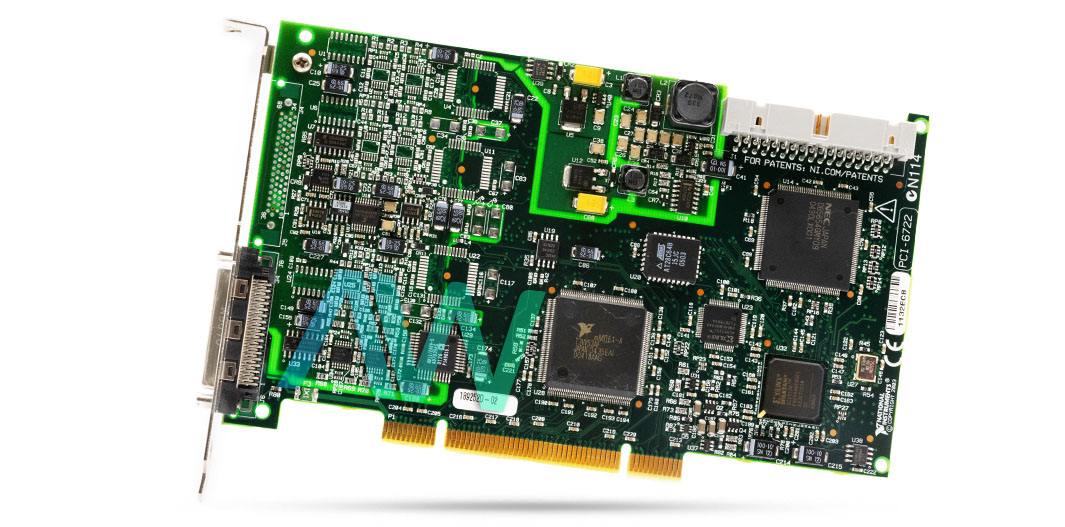

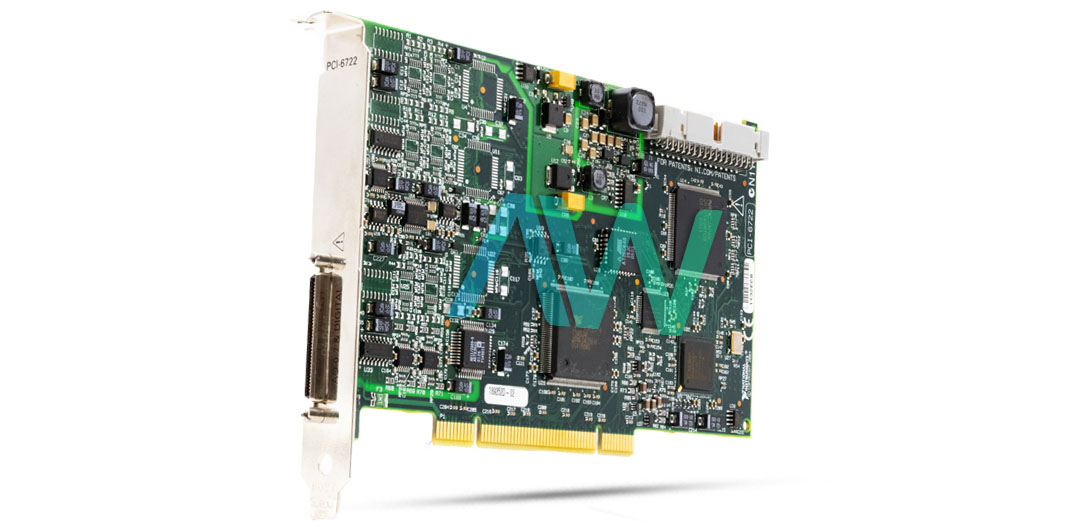

National Instruments PCI-6722 Analog Output Device
The National Instruments PCI-6722 (Part Number: 778705-01) is a 13-bit, high-speed, high channel density Analog Output Device. This model offers up to 800 kS/s update rate per channel and comes featured with external clocking, digital triggering, an integrated synchronization bus, and 24-bit counters/timers. This device has 8 analog output channels designed to operate over an output range of ±10 V. Moreover, this device also has 8 TTL/CMOS compatible digital I/O lines. The National Instruments PCI 6722 device can also be utilized as a low-cost, high efficiency arbitrary waveform generator since it can generate up to 500 kHz waveforms. Thus, with this device it is possible to generate common waveforms such as sine, square, and complex waveforms.
The NI PCI 6722 offers the capability to be deployed as master or slave of a timing and triggering system consisting of several devices. For this, the integration technologies can be utilized, such as RTSI bus and PFI pins. These options allow the user to synchronize and trigger a broad range of I/O types, ranging from image acquisition, analog input, high-speed digitizers, motion control to multifunction DAQs (data acquisition devices). Thus, the NI PCI-6722 allows users to create a robust, custom test, and control infrastructure with no complication.
This voltage output device is fully compatible with the LabVIEW Real-Time Module. Thus, users can consider it a viable solution for Real-Time control applications as well. The NI PCI-6722 not only supports common control algorithms like PID, but also allow users to implement cutting-edge and complex control algorithms.
Apex Waves stocks, buys, and repairs EOL hardware in perpetuity. While the PCI-6722 is no longer available direct from the manufacturer National Instruments, the Analog Output Device will remain available with Apex Waves.
| Model | PCI-6722 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778705-01 |
| Type | Analog Output Device |
| Analog Output Channels | 8 (13-Bit, 800 kS/s) |
| Digital Inputs/Outputs | 8 (5 V TTL/CMOS Compatibility) |
| Timing I/O | 2 Counter/Timer I/O (24 bits, 20 MHz) |
| I/O Connector | 68-Pin VHDCI |
| Power Requirements | +3.3 VDC, +5 VDC -- 300 mA, 1.5 A |
| Dimensions | 6.85 in. × 3.85 in. |
| Software Driver | NI-DAQmx Measurement & Automation Explorer configuration utility |
| Warranty | 2-3 Year Warranty |
| PCI-6722 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote For Pricing Information |
Associated part numbers for PCI-6722:
National Instruments PCI-6722 Frequently Asked Questions
Question: Is there any way to use the NI PCI-6722 with traditional NI-DAQ?
Answer: No, the device can only be used with NI-DAQmx driver software.
Question: Which operating system is compatible with the PCI-6722?
Answer: The Analog Output Device is only compatible with Windows OS.
Question: What is the voltage output range on the NI PCI-6722?
Answer: The voltage output range is ±10 V.
Question: How often should the device be calibrated?
Answer: It is recommended to get the PCI-6722 calibrated once a year.
PCI-6722 PDF Manuals
AO-WAVEFORM-CALIBRATION-PROCEDURE-FOR-NI-DAQMX.PDF
ANALOG-OUTPUT-SERIES-USER-MANUAL.PDF
DAQ-GETTING-STARTED-GUIDE-FOR-PCI-PCI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST-NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
NI-6722-6723-DEVICE-SPECIFICATIONS.PDF
NI-67XX-PINOUT-LABELS-FOR-THE-SCB-68-NOTE-TO-USERS.PDF
