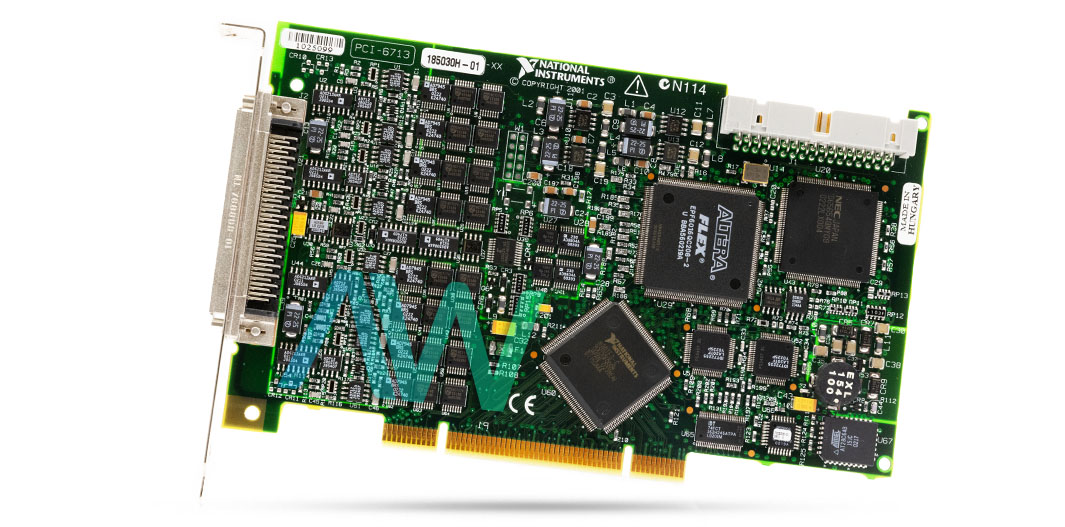

PCI-6713 National Instruments Analog Output Device | Apex Waves | Image

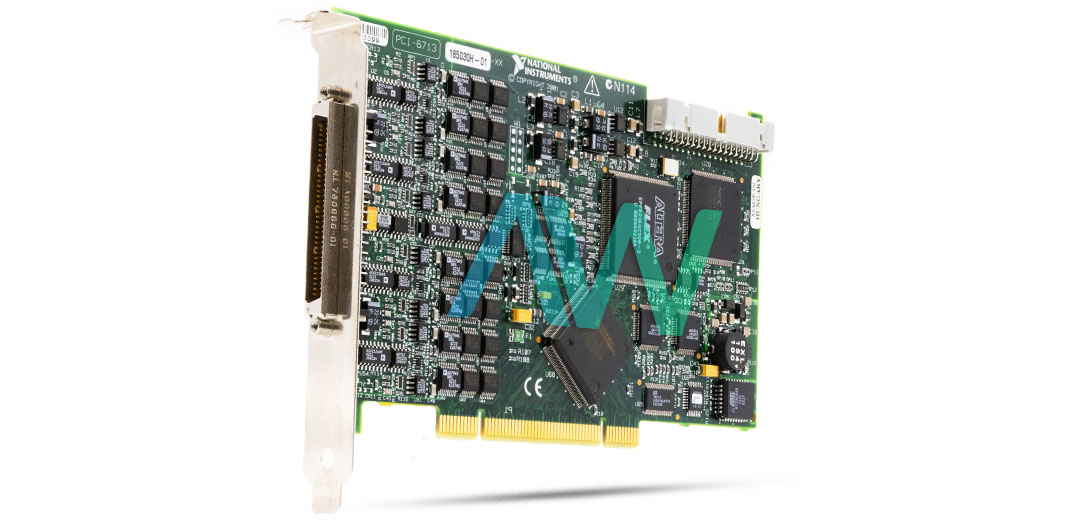

PCI-6713 National Instruments Analog Output Device | Apex Waves | Image
PCI-6713 New
PCI-6713 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PCI-6713 National Instruments Analog Output Device | Apex Waves | Image
PCI-6713 National Instruments Analog Output Device | Apex Waves | Image
PCI-6713 New
PCI-6713 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PCI-6713 Analog Output Device

Featured with 8 Analog Output Channels, 2 Counters, and 8 Digital Input/Output Channels, the National Instruments PCI-6713 (Part Number: 777741-01) is a PCI based multifunction analog output, timing input/output, and DIO device. This device is designed to operate as a plug and play unit entirely. For each of its 8 analog output channels, a dedicated 12-bits digital-to-analog converter is provided that offers up to 1 MS per second update rates for voltage outputs. This model also has eight 5 V TTL/CMOS compatible digital input/output lines. It has 3 DMA channels with a scather-gather DMA mode, a 5V PCI master-slave bus interface.

The counter/timers incorporated in this device are 2 in number, have 24-bit resolution, and have a frequency of 20 MHz, 100 kHz. It has 1 frequency scaler with base clocks of 10 MHz, 100 kHz. The device has a maximum working voltage of ±11 V, CAT 1 for a channel-to-earth isolation; and ±22 V, CAT 1 for a channel-to-channel. The National Instruments PCI-6713 supports hardware-based digital triggering as well. This model comes equipped with DAQ-STC which makes possible selectable logic level, PFI lines, and frequency shift keying. Moreover, the DAQ-STC also brings a variety of buffered operations, such as up/down control, equivalent time sampling, single pulse generation, pulse train generation, buffered period, and semi-period measurements. The NI device is equipped with a 68-pin male SCSI-II I/O connector.

The PCI-6713 Analog Output Device consumes 1.25 amperes at +5 VDC (±5%), whereas it offers +4.65 VDC to +5.25 VDC power at the I/O connector (at 1 A). In addition to redundant counters/timers, 4-bit, 10 MHz, 100 kHz frequency scalers are also incorporated in this module. This device is capable of identifying, measuring, and correcting for any of its calibration related errors. The software program provided with the NI PCI-6713 device defines a self-calibration method. The self-calibration process takes less than two minutes in most cases. To ensure the integrity of self-calibration, this device comes with an onboard calibration reference as well. The device measures 6.87 x 4.2 in. in physical dimensions. It has a recommended operating temperature range of 0 to 50 °C.

Apex Waves stocks, buys, and repairs end-of-life hardware in perpetuity. The PCI-6713 is no longer available directly from National Instruments (NI), but the Analog Output Device will remain available from Apex Waves for both purchase and repair services.

ModelPCI-6713
ManufacturerNational Instruments
Part Number777741-01
TypeAnalog Output Device
Analog Output Channels8 (12-Bit, 1 MS/s)
Digital Inputs/Outputs8 (5 V TTL/CMOS Compatibility)
Timing I/O2 Counter/Timer I/O (24 bits, 20 MHz)
I/O Connector68-Pin Male SCSI-II
Power Requirements+5 V -- 1.25 A
Dimensions6.87 × 4.2 in.
Software DriverNI-DAQmx
Measurement & Automation Explorer configuration utility
WarrantyThree Year Warranty
PCI-6713 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today for Pricing

Associated part numbers for PCI-6713:

National Instruments PCI-6713 Frequently Asked Questions



Question: Will my NI PCI-6713 fit into a PCI-X slot on a computer?

Answer: The Analog Output Device may be compatible with a PCI-X slot; it is based on the keying in the card. Universal PCI standard keying is compatible.



Question: What is the driver software that is used with the PCI-6713?

Answer: The driver software is NI-DAQmx.



Question: What is the update rate of the device?

Answer: The update rate of the NI PCI-6713 is 740 k to 1 M (S/s) for each channel.



Question: Which type of compatibility do the digital I/O channels on the PCI-6713 have?

Answer: The digital I/O channels are TTL/CMOS compatible.
