National Instruments NI-9263 Voltage Output Module

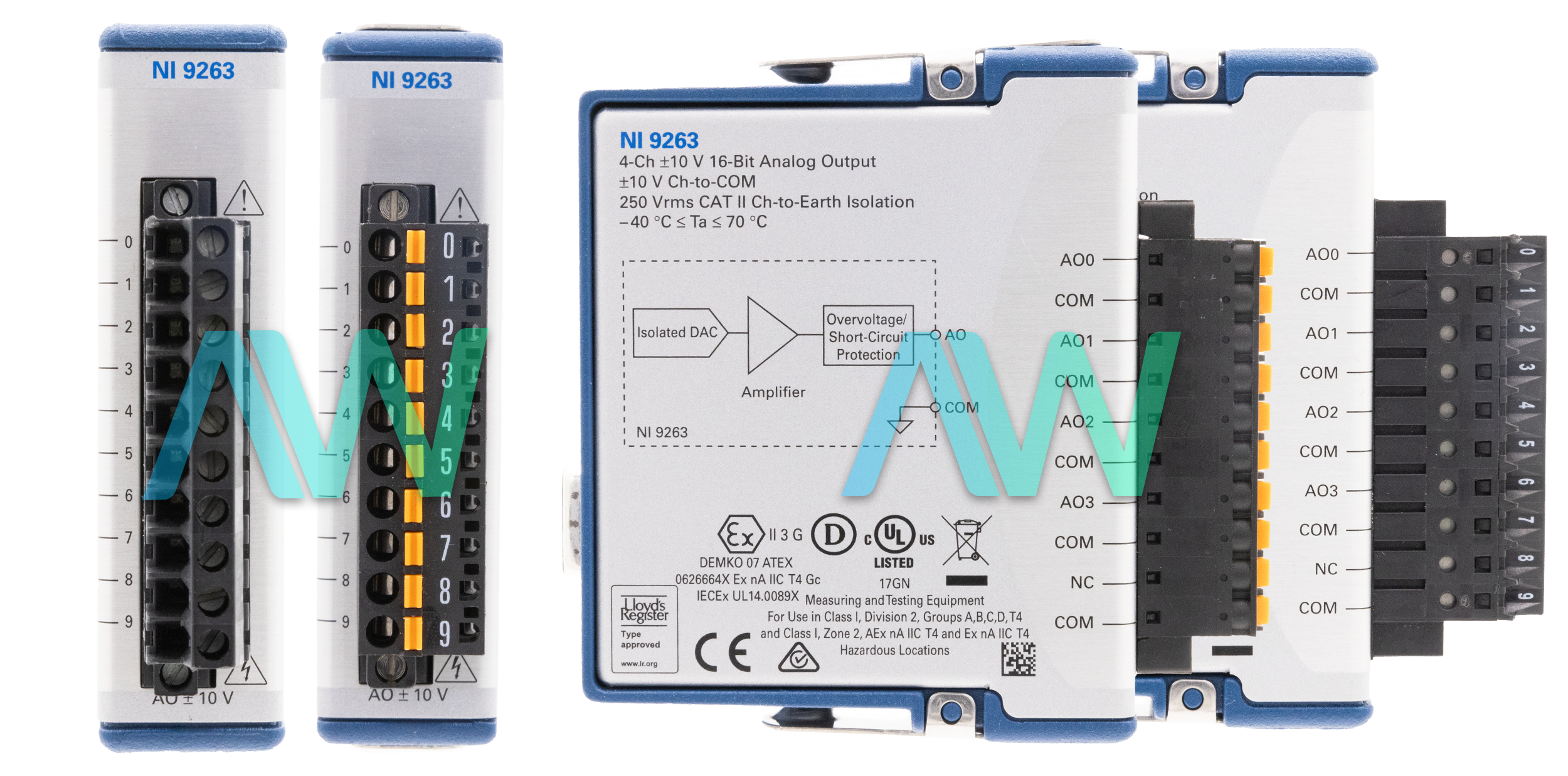

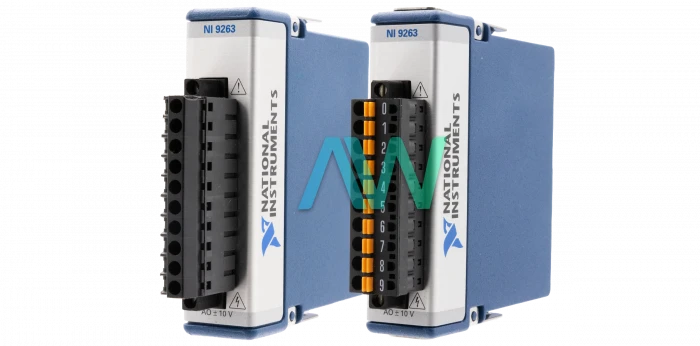

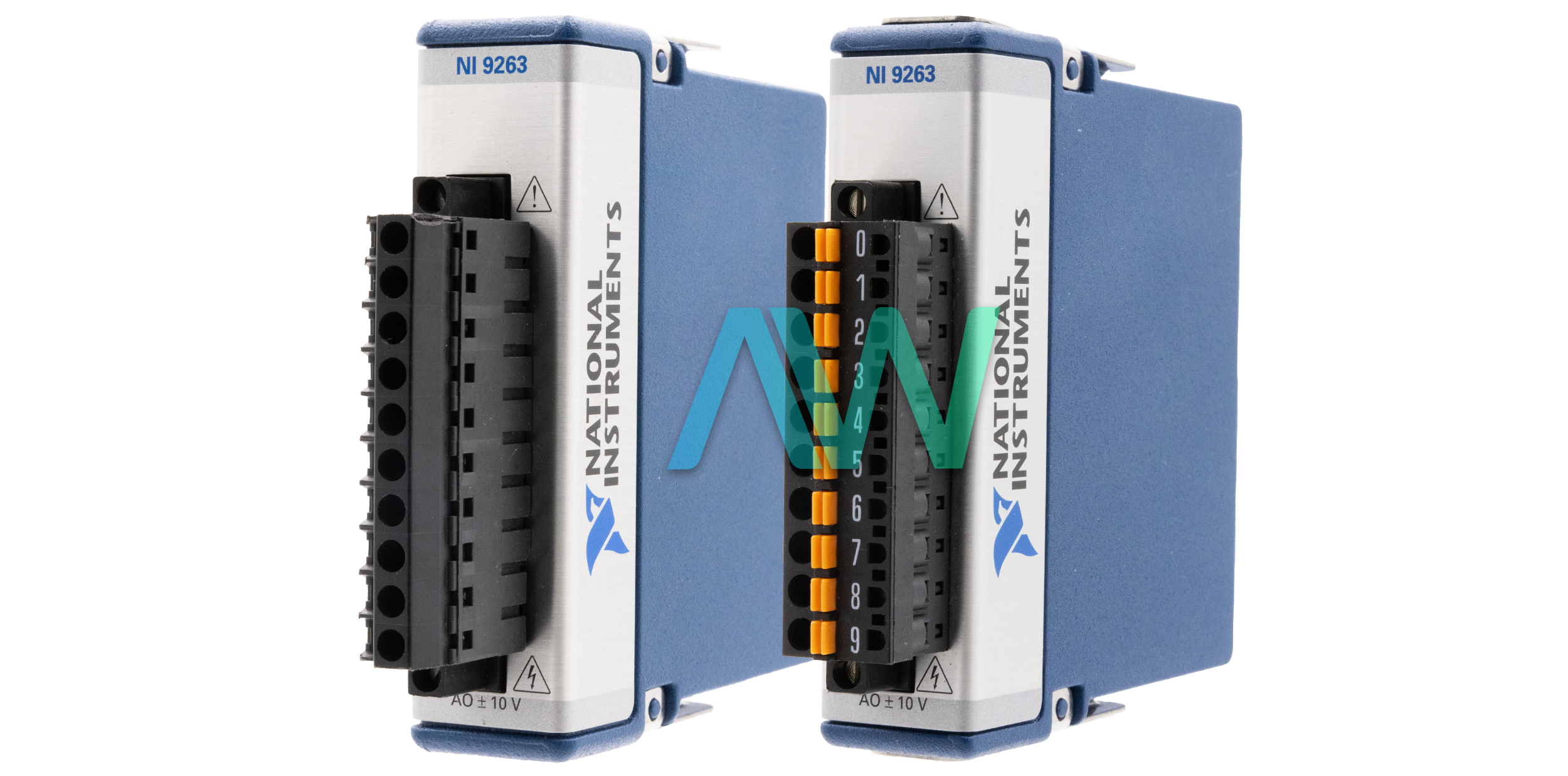

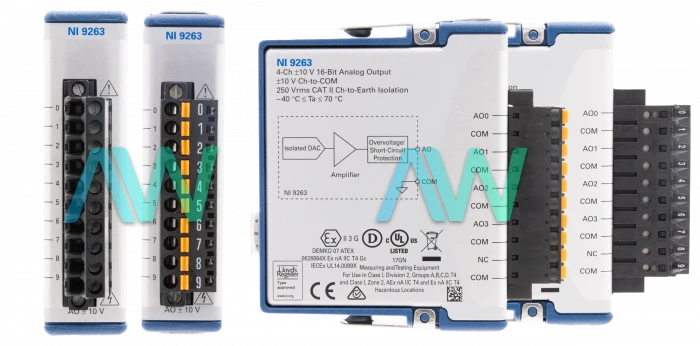

The NI-9263 (Part Numbers: 779012-01, 783740-01, 198856C-06L) is a C Series Voltage Output Module featured with 4 analog output channels, 100 kS/s per channel maximum sample rate, and ±10 V analog output voltage range. The two part numbers have the same specifications, except for their front connectors. Part number 783740-01 has a Spring Terminal front connector, while part number 779012-01 has a Screw Terminal front connector. The NI-9263 Analog Output Module is not conformal coated but is an enclosed module. This module comes with several useful protective functions, such as overvoltage and short-circuit protection. In addition, the NI-9263 is known for its fast slew rate, high relative accuracy, low crosstalk, and NIST traceable calibration. This model also features a channel-to-earth ground-based double isolation barrier for noise immunity and safety. Each channel of the NI-9263 has an integrated AO terminal for the user to link the positive lead of a load.
This Voltage Output Module operates with string type of DAC and offers a DAC resolution of 16 bits. As far as its output voltage range is concerned, it provides ±10 V nominal, ±11 V maximum, ±10.7 V typical ±10.4 V minimum with 2Ω output impedance and ±1 mA (per channel max) current drive. The NI-9263 is a sophisticated performer regarding accuracy as well. When adequately calibrated, this model can operate with a gain error as low as 0.03% (at (25 °C, ±5 °C). Additionally, scores for the gain drift and offset drift is 11 ppm/°C and 110μV/°C respectively. The overvoltage protection setting for the NI-9263 is ±30 V. The device can be programmed using software packages like LabVIEW Real-Time module, LabVIEW FPGA Module, and LabVIEW Professional Development System for Windows.
The National Instruments NI-9263 consumes 500 mW max, while operating in active mode and 25 μW maximum in sleep mode. This module weighs 5.3 ounces with screw terminal front connectors and 4.9 ounces with spring terminal front connectors. This product complies with a range of safety and EMC standards applicable to electrical equipment utilized in control, laboratory settings, and measurement tasks, such as IEC 61010-1, EN 61010-1, among others. It is engineered to achieve peak performance across a temperature spectrum ranging from -40°C to 70°C.
| Model | NI-9263 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779012-01, 783740-01, 198856C-06L |
| Series | C Series |
| Type | Voltage Output Module |
| Channels | 4 Analog Output |
| Maximum Update Rate | 100 kS/s per Channel |
| Analog Output Resolution | 16 Bits |
| Analog Output Voltage Range | -10 V to 10 V |
| Enclosed? | Yes |
| Conformal Coated? | No |
| Supported Hardware Platform | C Series |
| Analog Output Isolation | 250 Vrms Ch-Earth Ground Isolation |
| Current Drive | 1 mA Maximum |
| Weight | Screw Terminal: 5.3 oz; Spring Terminal: 4.9 oz. |
| Warranty | Three Year Warranty |
| NI-9263 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Pricing Information |
Associated part numbers for NI-9263:
National Instruments NI-9263 Frequently Asked Questions
Question: What is the difference between the two part numbers for the NI-9263?
Answer: Part number 783740-01 has a Spring Terminal front connector and weighs 5.3 oz. The second part number, 779012-01, has a Screw Terminal front connector and weighs 4.9 oz. All other specifications are the same for the two modules.
Question: What is the analog output isolation for the Voltage Output Module?
Answer: The NI-9263 has an analog output isolation of 250 Vrms Ch-Earth Ground Isolation.
Question: What type of DAC does the module have?
Answer: The NI-9263 has a string DAC type.
Question: What is the power-on output state for the NI 9263 Module?
Answer: in the power-on output state, the module's channels are off.
