National Instruments 778511-01 Analog Output Device

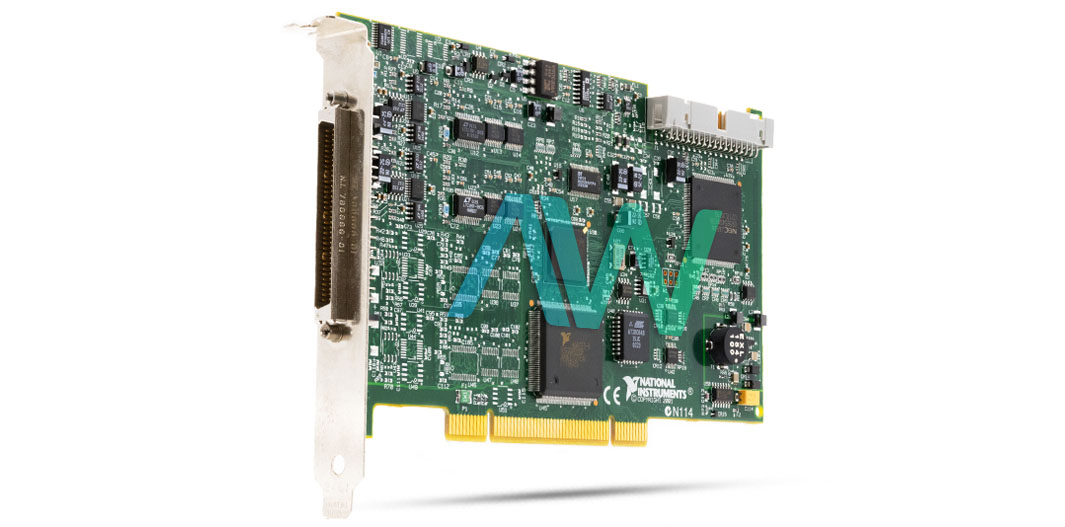

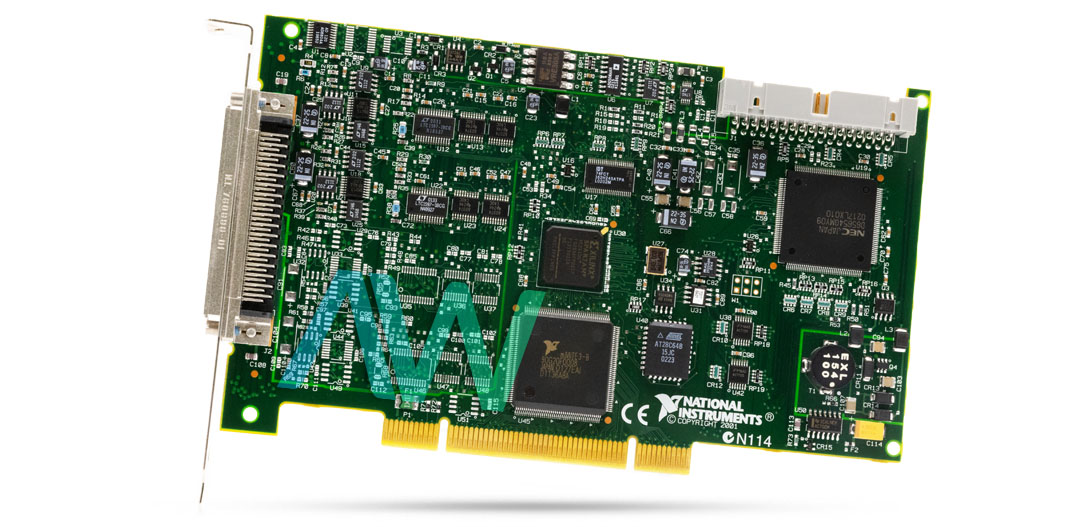

National Instruments part number 778511-01 is an identifying part number for the PCI-6731, an Analog Output Device. The 778511-01 has 4 channels, 16-bits of resolution, and a sampling rate of 1 MS/s. This module is intended to offer simultaneous multichannel updates for waveform output and control applications, such three-phase power modeling and stimulus-response tests that involve acoustic distortion. The device is capable of both external clocking and digital triggering, equipped with 8 TTL/CMOS digital I/O lines and 2 (20 MHz) counter/timers.

The 778511-01 can be used in place of a variety of instruments, including function generators, stand-alone PID controllers, and arbitrary waveform generators that are low-speed. Users may build complicated waveforms as well as standard waveforms like square, sine, or sawtooth by controlling each data point for each channel. As a PCI-based device, the 778511-01 can be effortlessly plugged into and deployed in any PCI bus-compatible computer.

Conversely, the PXI-based version can only be utilized with a compatible PXI chassis. This Analog Output Device offers a cost-effective alternative to multiple instruments, including PID controllers and function generators. It also supports the creation and acquisition of digital waveforms. Upon startup, all PFI and DIO lines of the 778511-01 are configured as high-impedance inputs, with each line featuring a weak pull-up resistor. The NI-DAQmx driver software, which is compatible with software packages and application development environments including Measurement Studio, LabVIEW, or LabWindows- powers the 778511-01. Configuration can be done using the Measurement & Automation Explorer (MAX) tool.

Part Number778511-01
Model NamePCI-6731
Part TypeAnalog Output Device
Number of Inputs and Type8 Digital
Number of Outputs and Types4- Analog, 8- Digital
Output Resolution16 Bits
Bidirectional Channels8
I/O Connectors68-pin male SCSI-II
Timing I/O2 Counter/Timer I/O (24 bits, 20 MHz)
Output Range±10V
