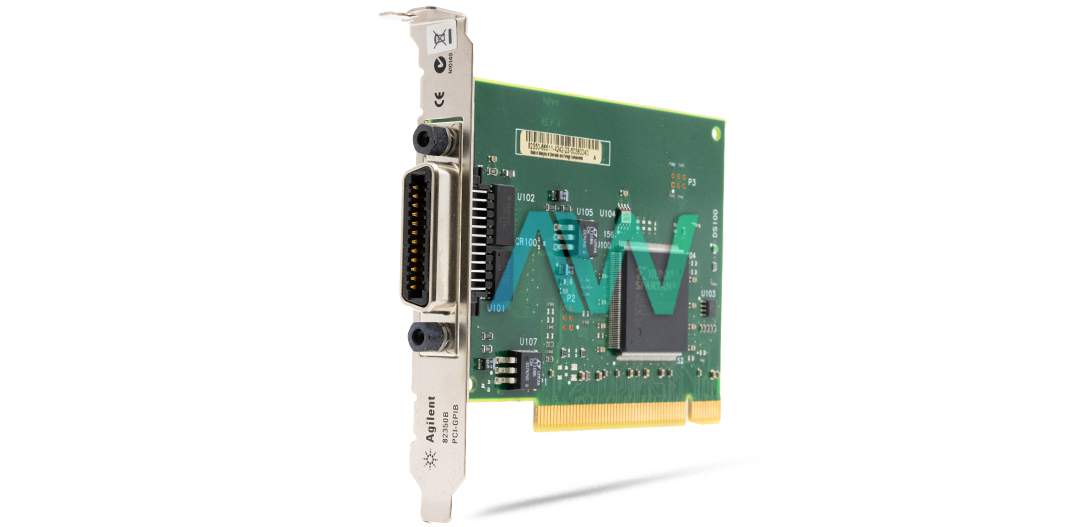

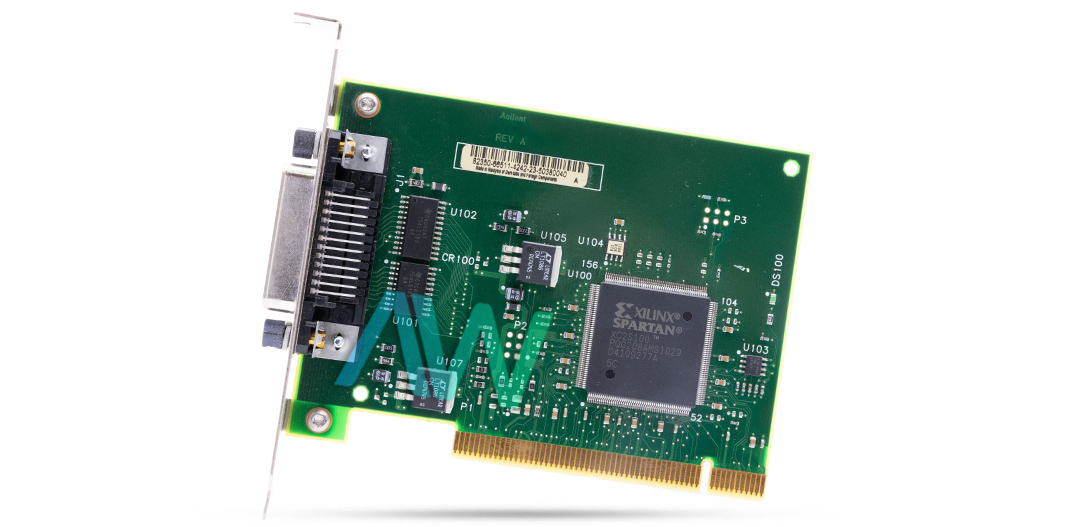

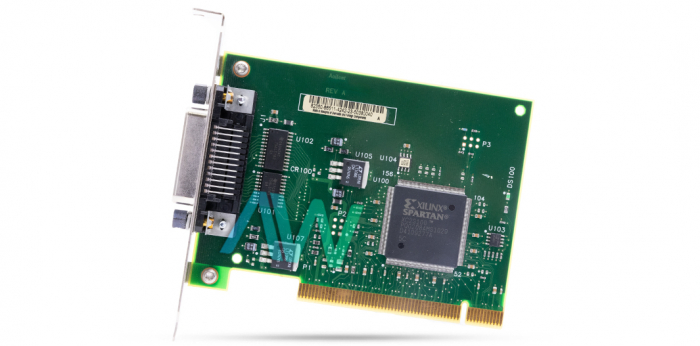

Keysight 82350B PCI High-Performance GPIB Interface Card
The 82350B is a PCI High-Performance GPIB Interface Card. The 82350B is a product of Agilent/HP/Keysight Technologies. The 82350B can be used with Windows XP/Vista/7/8 operating systems. The 82350B has been announced with “discontinued” status from Agilent/HP/Keysight Technologies. The 82350B can be utilized with the Keysight I/O Libraries Suite-15.0 or higher. The Keysight 82350B has the support of standard PCI rev-2.1. The 82350B is compatible with IEEE versions 488.1 and 488.2.
The Keysight 82350B PCI High-Performance GPIB Interface Card is fabricated with a 32-bit PCI bus slot. The 82350B is fully supported with a Sever of 2008 R2. The Keysight 82350B is powered by a backplane +5 V PCI bus. The 82350B PCI High-Performance GPIB Interface Card has 24-pin GPIB standard connectors with +5 V PCI. The 82350B is featured with a data rate of up to 900 kB/s. The Keysight 82350B can connect a maximum of 14 instruments via GPIB. The 82350B PCI GPIB Interface Card has built-in buffering support. The 82350B is configured as a plug-n-play card. The 82350B is worked with PCI-based computers.
The 82350B PCI High-Performance GPIB Interface Card complies with EMC as well as safety measurements for IEC 61326-1, with Group1 and Class-A of IEC 61010-1. The Keysight 82350B is designed with a weight of 1 lb. The 82350B PCI High-Performance GPIB Interface Card is manufactured with a height of 0.87 in. The 82350B has a length and width of 4.8 in. The Keysight 82350B PCI High-Performance GPIB Interface Card is assembled as a full-height PCI card. The Keysight 82350B can be used with an environmental temperature range from 0 to +55 °C.
| Model | 82350B |
|---|---|
| Manufacturer | Keysight Agilent HP |
| Series | T&M Software and Connectivity Products |
| Type | PCI High-Performance GPIB Interface Card |
| Maximum I/O Speed | 900 KB/s |
| Processor | 1 GHz, no support for Itanium64 |
| Hard Disk Space Required | 2 GB |
| RAM | 1 GB minimum |
| Compatible Models | 5V PCI-based PCs |
| Warranty | 2-3 Year Warranty |
| 82350B Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
