Keysight M9018A PXIe Chassis
The Keysight M9018A Chassis provides top-of-the-line features a definitive in versatility, compatibility, and execution. This chassis contains a propelled switch fabric that works up to Gen 2 speeds and can be arranged for ideal execution with most PXIe controllers. The switch fabric is additionally configurable for shared interchanges and some openings can speak with other peripherals without utilizing the system slot PCIe links. The user has the option to combine the PXI M9018A with the M9021A Cable Interface and M9048A Desktop Adapter to accomplish the most noteworthy data transfer capacity framework.
The Keysight M9018A comes equipped with a soft front panel (SFP), which can be utilized to monitor the status of different parameters, such as the temperature, rail voltage monitoring, temperatures, chassis fan speed, chassis data, or alarms for fan speed, rail voltage, and temperature. The SFP has two modes: Hardware Mode and Simulation Mode. In Hardware Mode, the SFP communicates with the frame itself. The SFP will show chassis data and enable the user to set frame parameters, such as temperature limits and voltage cautions. In Simulation Mode, the SFP mimics case activity and does not speak with the frame. Reenactment Mode is helpful to become familiar with the capacities of the SFP and the M9018A PXIe Chassis.

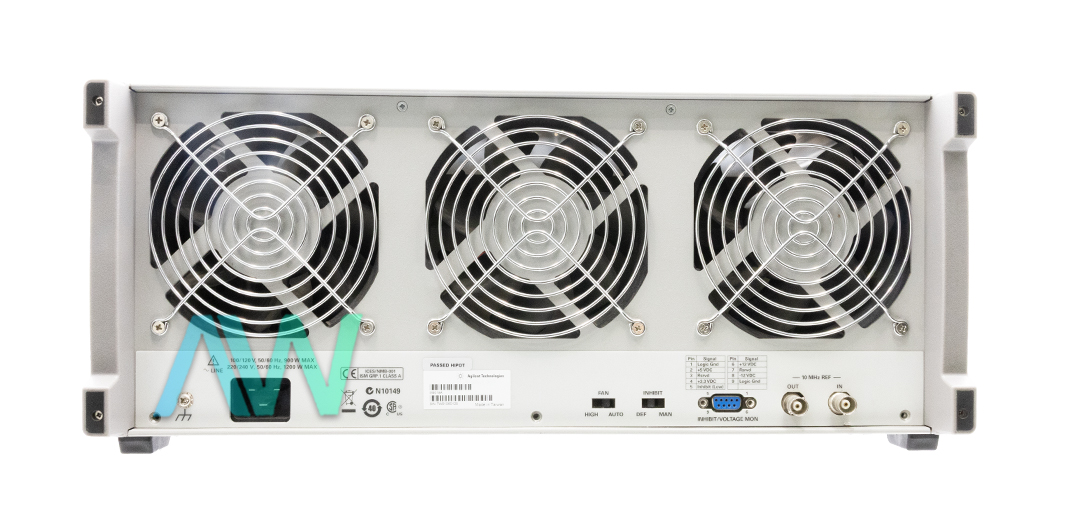

To ensure proper cooling, make sure to avoid blocking any vents or the fan exhaust, and insert filler panels into any empty slots. A gap of at least 2 inches (50mm) around the vent holes on both sides of the chassis help to ensure adequate ventilation. The power supply and fans of the M9018A can be expelled while the chassis is mounted in a rack, enabling the frame to be adjusted while keeping DUT cabling and modules set up.
The environmental characteristics of the M9018A include an operating temperature range of 0ËšC to 55ËšC and an operational altitude of up to 10,000 ft. When not being used, the storage temperature range is –40ËšC to 70ËšC and the altitude goes up to 15,000 ft. With the feet installed, the PXIe chassis measures dimensions of 444.4 mm x 191.8 mm x 466 mm. Without the feet, the device measures dimensions of 444.4 mm x 177.8 mm x 466 mm.
| Model | M9018A |
|---|---|
| Manufacturer | Keysight Agilent HP |
| Type | PXIe Chassis |
| Slots | 18 |
| Maximum Data Rate | 4 GB/s |
| Total DC Power | 867.5 W |
| Cooling Power | 42 W / slot |
| Hybrid Compatible Slots | 16 |
| Cooling Power | 42 W / slot |
| Operating Temp Range | 0ËšC to 55ËšC |
| Storage Temp Range | –40ËšC to 70ËšC |
| Dimensions | 17.5 in. x 7.5 in. x 18.3 in. (with feet installed) |
| Weight | 34 lbs. |
| Warranty | 2-3 Year Warranty |
| M9018A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for Pricing |
Associated part numbers for M9018A:
Keysight M9018A Frequently Asked Questions
Question: What drivers are used with the Keysight M9018A?
Answer: The drivers are IVI-COM, IVI-C, and LabVIEW.
Question: Which types of slots does the PXI M9018A have?
Answer: The PXIe Chassis has 16 hybrid compatible slots, 1 PXIe system slot, and 1 PXIe timing slot.
Question: Does the M9018A have overcurrent protection?
Answer: Yes, the chassis has an internal fuse in line for overcurrent protection.
