PXI-4070 In Stock | Ships Today
PXI-4070, 6.5 Digit, 1.8 MS/s Sample Rate, PXI Digital Multimeter
Rated 4.83/5 | 12 ratings
Actual item may vary if no part number is provided on quote request.
✔ 2 Year Warranty Included
✔ Free Ground Shipping
✔ NIST Calibration Available
Expert Insights for the PXI-4070
"With a 6.5 digit resolution, the PXI-4070 is a great solution for measuring and testing electronic components in a variety of applications. It has an intuitive yet comprehensive interface for measuring voltage, current, resistance and diodes. With an excellent sample rate and general measurement capabilities it can be a cost effective solution for your lab. Despite no longer being produced, it is still widely available and supported."
- Chris B.
LabVIEW Trained
In-House Technician
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Expert Insights for the PXI-4070
"With a 6.5 digit resolution, the PXI-4070 is a great solution for measuring and testing electronic components in a variety of applications. It has an intuitive yet comprehensive interface for measuring voltage, current, resistance and diodes. With an excellent sample rate and general measurement capabilities it can be a cost effective solution for your lab. Despite no longer being produced, it is still widely available and supported."
- Chris B.
LabVIEW Trained
In-House Technician

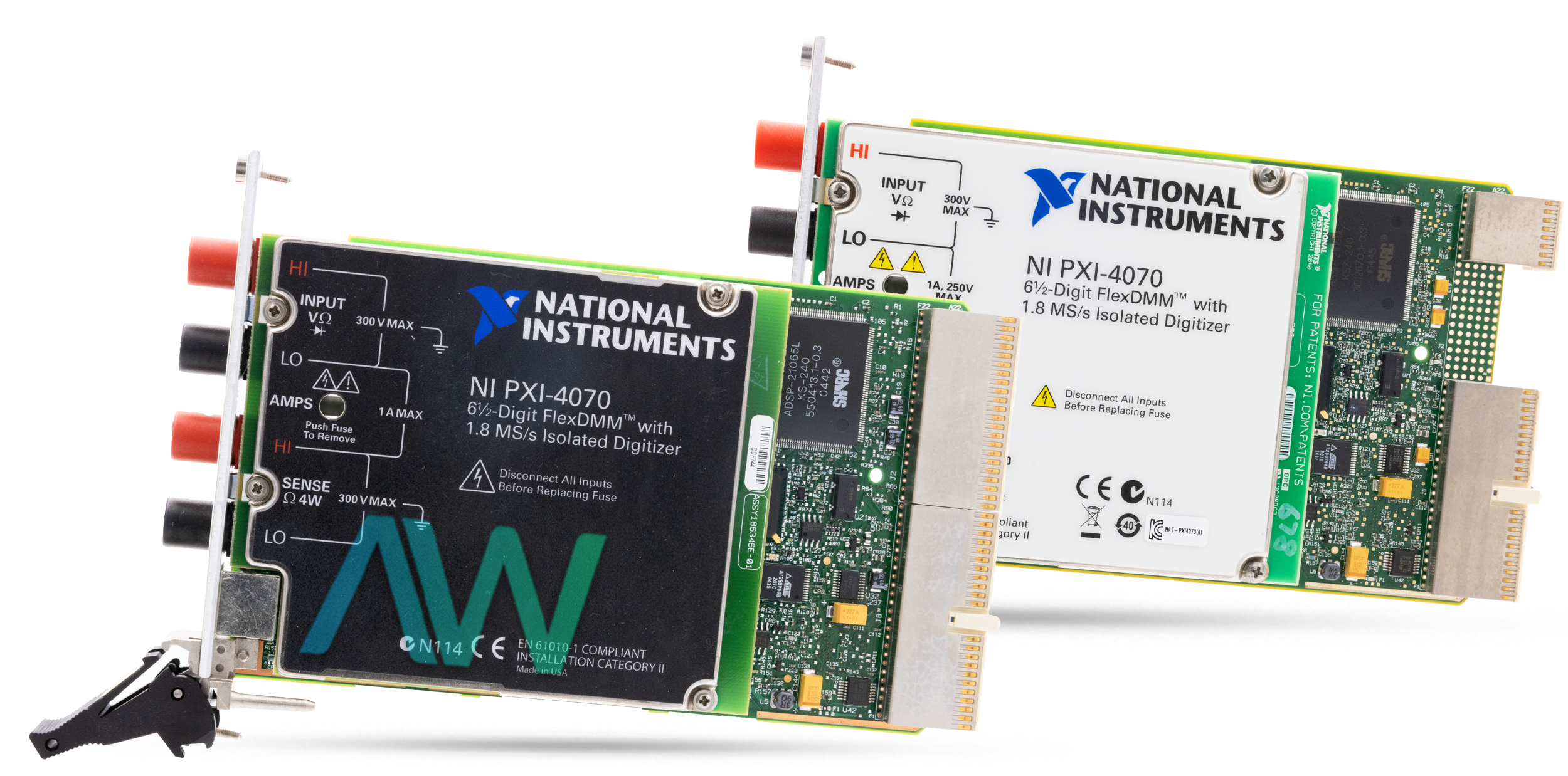

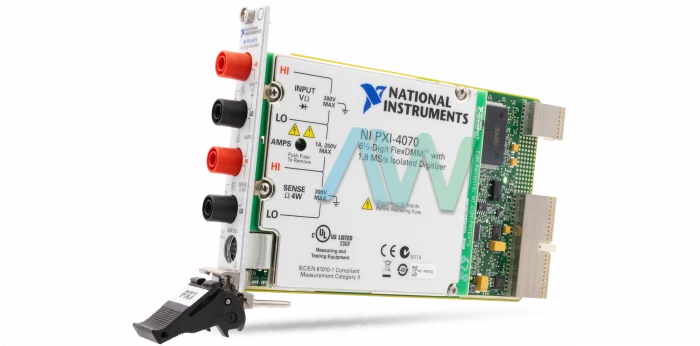

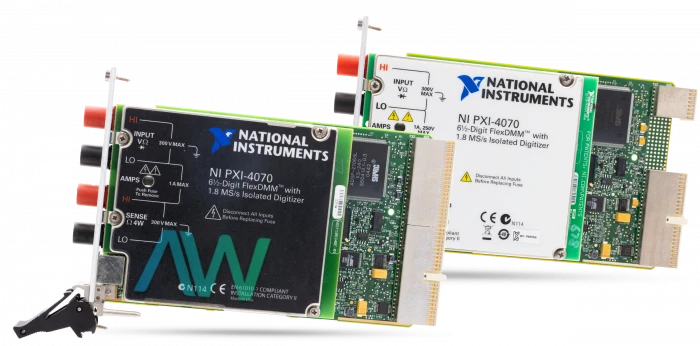

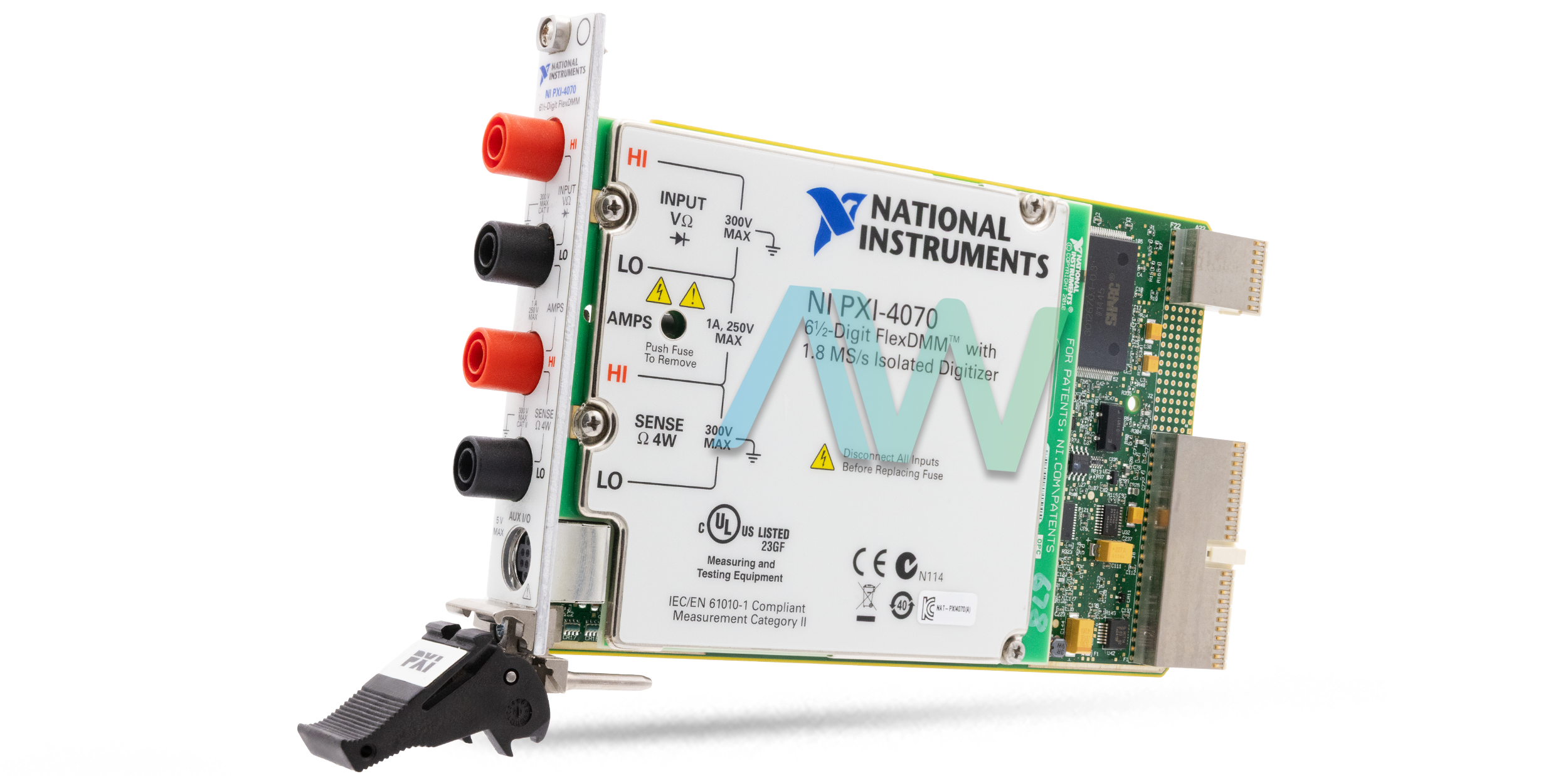

National Instruments PXI-4070 PXI Digital Multimeter
The NI PXI-4070 (Part Number: 778274-01) 6.5 Digit FlexDMM has high throughput rates, while keeping up precision and stable estimation. With National Instruments restrictive FlexDMM innovation, this DMM gives a completely separated, high-voltage digitizer capable of acquiring waveforms at sampling rates up to 1.8 MS/s at all voltage and current ratings. Utilizing the analysis capabilities available in NI LabVIEW programming, the user can dissect these waveforms in both the time and frequency spaces. The NI PXI-4070 DMM has superior speed, precision, and functionality, making it an excellent fit for use in computerized tests on both the production floor and in R&D applications.
The PXI-4070 can be used with NI-DMM, which is an IVI-consistent driver that accesses the entire functionality of the DMM through a simple-to-utilize application programming interface (API) and is compatible with languages like C/C++, .NET, Visual Basic, LabVIEW, and LabWindows/CVI. This unit also offers a 1.8 MS/s Flexible-Resolution Isolated Digitizer and the possibility to vary the resolution of the FlexDMM from 10 to 23 bits by changing the sampling rate. In addition, the Digital Multimeter includes a one of a kind multi-instrument functionality that limits general framework cost by eradicating the need to buy a different data acquisition device, signal conditioning, fixturing, etc.
The device is coupled with both DC and AC systems. Its DC system has the following features: a range/function change of 100/s, a resistance auto-range time of 50 ms, a trigger latency of 2 μs, and a maximum trigger rate of 6 kHz. Its AC system has the following features: a range or function change of 10/s, an auto-range time of 250 ms, a trigger latency of 2 μs, and a maximum trigger rate of 1 kHz.
The National Instruments PXI-4070 additionally has a built-in self-calibration feature. The self-calibration or Self-Cal feature enhances preciseness by addressing errors from temperature changes and long-term drift. Self-Cal guarantees preciseness over the complete 0 to 55 degrees Celsius operating temperature range. In addition, an external calibration every two years helps decrease downtime and maintenance expenses.
The PXI-4070 had a Last Time Buy Date from National Instruments in December 2018 and is now obsolete—but the digital multimeter will still be available in perpetuity for purchase and repairs with Apex Waves!
| Model | PXI-4070 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778274-01 |
| HTS Code | 8471804000 |
| Type | PXI Digital Multimeter |
| Maximum Sample Rate | 1.8 MS/s |
| Digits of Resolution | 6.5 |
| DC Voltage Range | -300 V to 300 V |
| DC System Range of Function Change | 100/s |
| Power Consumption | <12 W |
| Input Protection | Up to 300 VDC |
| Dimensions | 0.8 in. × 5.1 in. × 8.5 in. |
| Weight | 12 oz. |
| Warranty | 2-3 Year Warranty |
| PXI-4070 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for PXI-4070:
National Instruments PXI-4070 Frequently Asked Questions
Question: What driver is used by the NI PXI-4070?
Answer: The driver is NI-DMM, DMM Express VI for LabVIEW, and DMM Soft Panel.
Question: How long is the suggested warm-up time for the PXI-4070?
Answer: The suggested warm-up time is one hour.
Question: What is the power consumption of the NI PXI-4070?
Answer: The power consumption of the PXI DMM is <12 W from the PXI backplane.
Question: How long is the calibration interval for the PXI digital multimeter?
Answer: The calibration interval for the PXI-4070 is two years.
Question: What is the maximum trigger rate for the AC system of the PXI-4070?
Answer: The maximum trigger rate is 1 kHz
Question: What is the voltage range of the PXI-4070's acquisition system?
Answer: The voltage range is ±100 mV to ±300 V (DC or AC coupled)
PXI-4070 PDF Manuals
NI-4070-4072-6C2BD-DIGIT-FLEXDMM-CALIBRATION-PROCEDURE.PDF
NI-DIGITAL-MULTIMETERS-GETTING-STARTED-GUIDE.PDF
NI-PXI-4070-6-1-2-DIGIT-FLEXDMM-CALIBRATION-PROCEDURE.PDF
NI-PXI-4070-6C2BD-DIGIT-FLEXDMM-CALIBRATION-PROCEDURE.PDF
PCI-4070-PXI-4070-4071-4072-LETTER-OF-VOLATILITY.PDF
